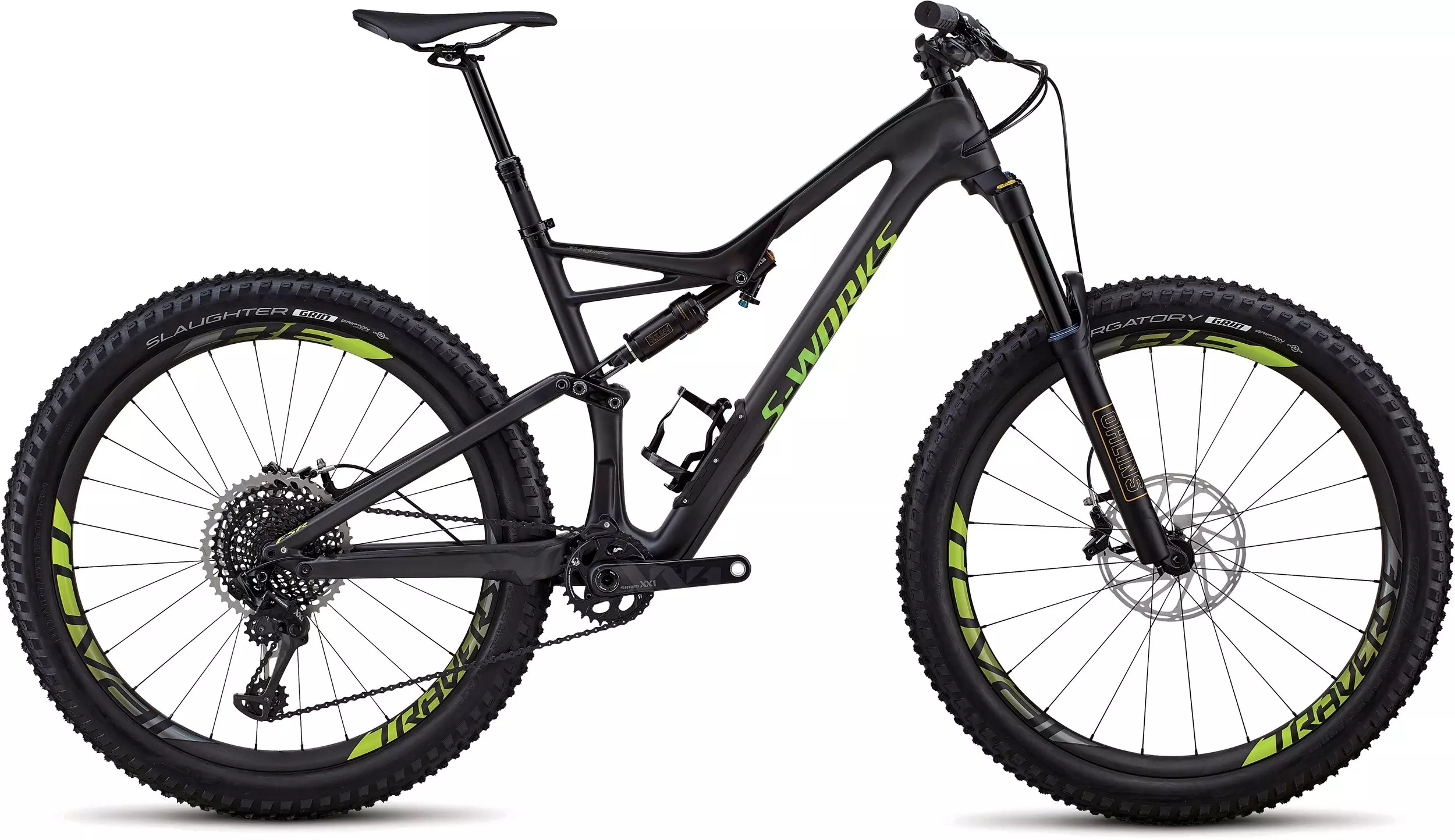

It's easy to say that a bike is revolutionary—that it features all of the latest and greatest technology. Rarely, however, is a trail bike so far ahead of the pack that it leaves you scratching your head wondering, "How'd they do that?" Well, the S-Works Stumpjumper 6Fattie/29 is that bike.
It features our FACT 11m carbon fiber for the construction in order to provide an ultra-lightweight, strong, and stiff frame. The carbon molding process also allowed us to revolutionize how you carry your trail essentials with the SWAT™ Door found at the down tube. This compartment will fit a tube, a tool, and pump without rattling or compromising the structural integrity of the frame.
Then there's our 6Fattie Wheel/Tire System that takes 27.5 wheels and wraps them in 27.5x3.0" tires to provide a drastic, life-changing level of traction, control, and floatation. Impressively, 6Fattie pulls this off without sacrificing anything to climbing prowess. This system also allows you the opportunity to toggle between 29-inch wheels (not included) and 6Fattie wheels, allowing the ultimate in configuration options for the trail at hand. Further improving the ride, you'll also find an aggressive, trail-eating geometry that features ridiculously short chainstays, a roomy top tube, a low bottom bracket, a slacked out front end, and our proprietary Rx Trail Tune at the shock.
For this S-Works model, we outfitted it with a build spec that spares no expense—featuring a full SRAM XX1 Eagle 12-speed groupset, SRAM Guide RS brakes, Öhlins front and rear suspension, and hand-built Roval Traverse SL carbon wheels. With the Stumpjumper, you have a bike that, without a doubt, is ready for anything on the trail.
|CHAIN||SRAM X01 Eagle, 12-speed w/ PowerLock|
|BOTTOM BRACKET||SRAM PF30|
|CRANKSET||SRAM XX1 Eagle, carbon, Boost™ 148, 170mm crankarm, 30mm spindle|
|SHIFT LEVERS||SRAM XX1 Eagle, trigger, 12-speed|
|CASSETTE||SRAM X01 Eagle, 12-speed, 10-50t|
|REAR DERAILLEUR||SRAM XX1 Eagle™, 12-speed|
|FORK||Öhlins RXF 36, 29/6Fattie, Twin-Tube design, air spring w/ adjustable 3rd chamber, adjustable high and low speed compression, adjustable rebound, 15x110mm thru-axle, 51mm offset, 150mm of travel|
|REAR SHOCK||Custom Öhlins STX, Single-Tube design, Rx Trail Tune, 3rd Chamber air spring technology, AUTOSAG, adjustable compression & rebound damping, 197x48mm|
|FRONT HUB||Roval Traverse, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 24h|
|REAR HUB||Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h|
|INNER TUBES||Standard, Presta valve|
|SPOKES||DT Swiss Revolution|
|RIMS||Roval Traverse SL 27.5, hookless carbon, 38mm inner width, 24/28h, tubeless ready, hand-built|
|FRONT TIRE||Purgatory, GRID casing, Gripton compound, 2Bliss Ready, 27.5 x 3.0"|
|REAR TIRE||Slaughter, GRID casing, Gripton compound, 2Bliss Ready, 27.5 x 2.8"|
|SADDLE||Body Geometry Henge Expert, hollow Ti rails, 143mm|
|SEATPOST||Command Post IRcc, 12-position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm of travel|
|STEM||Syntace F109, 6-degree rise, 31.8mm clamp|
|HANDLEBARS||Specialized Trail, FACT carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm|
|GRIPS||Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness|
|FRONT BRAKE||SRAM Guide RS carbon, hydraulic disc, organic pads, carbon lever, Guide S4 4-piston caliper, 200/180mm rotor|
|REAR BRAKE||SRAM Guide RS carbon, hydraulic disc, organic pads, carbon lever, Guide S4 4-piston caliper, 180/160mm rotor|
|PEDALS||Specialized Platform, Cr-Mo, 9/16" spindle|
|SEAT BINDER||Alloy, 34.9mm|
|FRAME||S-Works FACT 11m, full carbon chassis and rear end, 29/6Fattie Trail Geometry, SWAT™ Door integration, PF30 BB, fully enclosed internal cable routing, ManFu link, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm of travel|
|Top Tube Length, Horizontal||563mm||590mm||616mm||648mm|
|Seat Tube Angle||74°||74°||74°||74°|
|Head Tube Angle||67°||67°||67°||67°|
|Seat Tube Length||396mm||430mm||468mm||523mm|
|BB Height, 29x2.3"||338mm||338mm||338mm||338mm|
|Head Tube Length||125mm||145mm||95mm||95mm|
|Bike Standover Height||754mm||761mm||770mm||777mm|
|Fork Length, Full||560mm||560mm||560mm||560mm|
