2014 S-Works Stumpjumper 29 Frameset

0 Reviews

Color:

Gloss Candy Red/Gold

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the color and size you're looking for to search nearby store inventory.

Unavailable

This item is not available for Find Nearby

Product Details

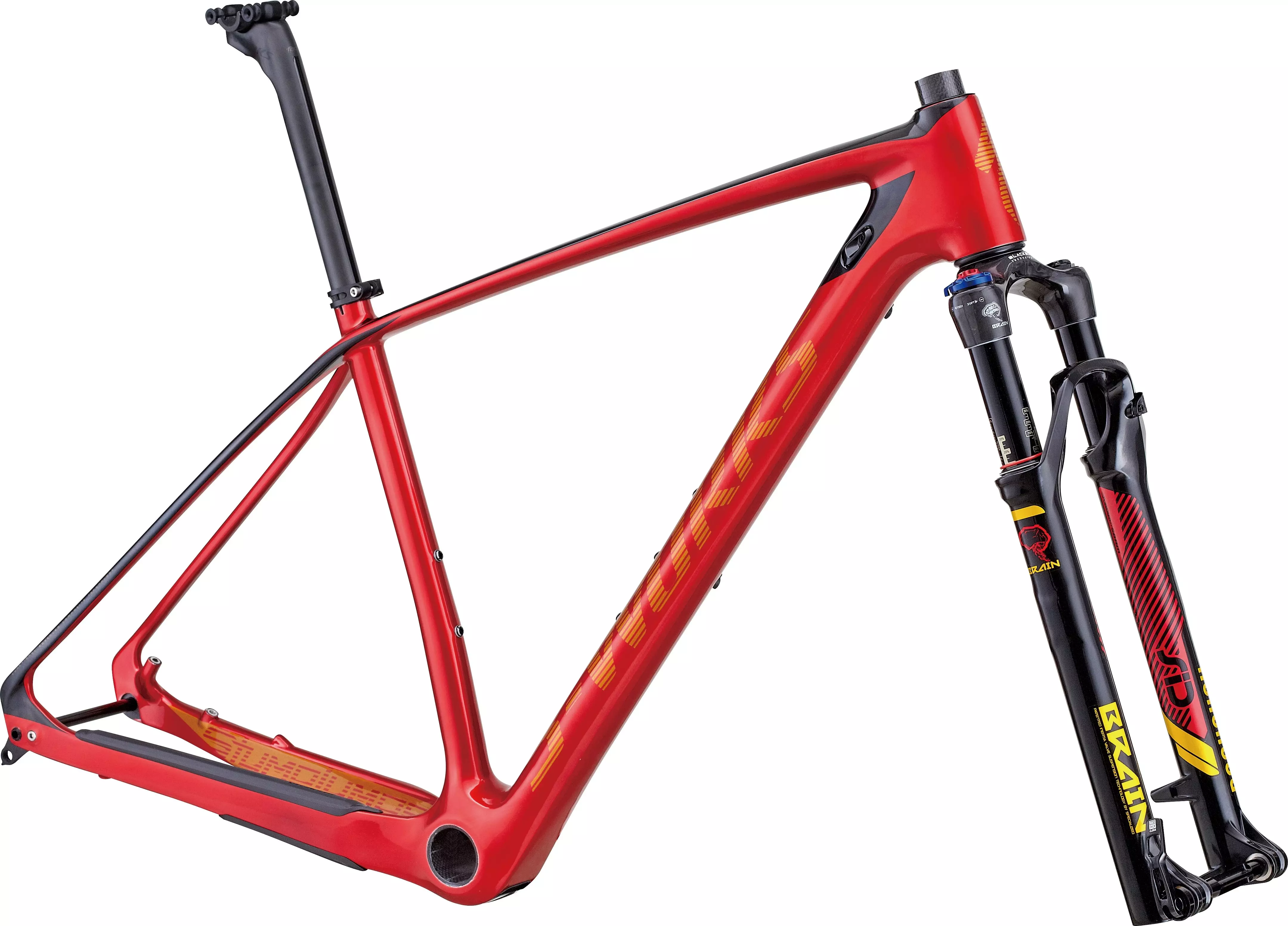

A carbon fiber S-Works Stumpjumper 29 hardtail frame ready for a custom build.

S-Works carbon two-bolt head 27.2mm seatpost is ultra-lightweight and adds compliance without sacrificing strength
All-new FACT IS 11m carbon frame with dedicated 29er geometry and full SWAT technology kit, internal cable routing, PF30 BB, and 142mm dropouts for the lightest race-ready design
Custom RockShox SID World Cup 29 fork with Specialized Brain inertia-valve damping has 90mm of air-sprung travel, a carbon steerer tube, and 15mm thru-axle to create the most efficient and supple cross-country fork available

Technical Specifications

FRAMESET

FRAME

FACT 11m carbon, 29"" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal shift/brake routing, 142+ dropouts, PM 160 rear brake, replaceable alloy rear derailleur hanger

SWAT

Bottle cage w/ SWAT Technology compatible (not included)

HEADSET

1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

Specialized 7050 hard anodized alloy, single bolt, 31.8mm

SUSPENSION

FORK

Custom RockShox SID World Cup 29 Brain, inertia valve damper, Solo Air spring, tapered carbon crown/steerer, top-mount Brain Fade and rebound adj., 15mm thru-axle, S: 80mm, Others: 90mm travel

DRIVETRAIN

BOTTOM BRACKET

PF30, OS press-in bearings, sealed cartridge

COCKPIT

SEATPOST

Specialized carbon, single bolt, 27.2mm, S: 350mm, Others: 400mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL
Ground-Top	902mm	920mm	935mm	949mm
Top Tube Length (Horizontal)	565mm	593mm	620mm	643mm
Seat Tube Angle (Effective)	73.5°	73.5°	73.5°	73.5°
Head Tube Height	90mm	100mm	115mm	130mm
Top Tube Length (Actual)	551mm	574mm	598mm	622mm
Seat Tube Length - Center to Top	394mm	434mm	470mm	505mm
Bottom Bracket Drop	61mm	61mm	61mm	61mm
Bottom Bracket Height	310mm	310mm	310mm	310mm
Wheel Base	1047mm	1078mm	1105mm	1131mm
Standover Height	760mm	799mm	826mm	849mm
Stack	592mm	610mm	625mm	639mm
Reach	390mm	414mm	437mm	458mm
Head Tube Angle	71°	71°	71°	71°
Chainstay Length	430mm	430mm	430mm	430mm
Crank Length	170mm	175mm	175mm	175mm
Handlebar Width	700mm	700mm	700mm	700mm
Stem Length	75mm	90mm	105mm	105mm
