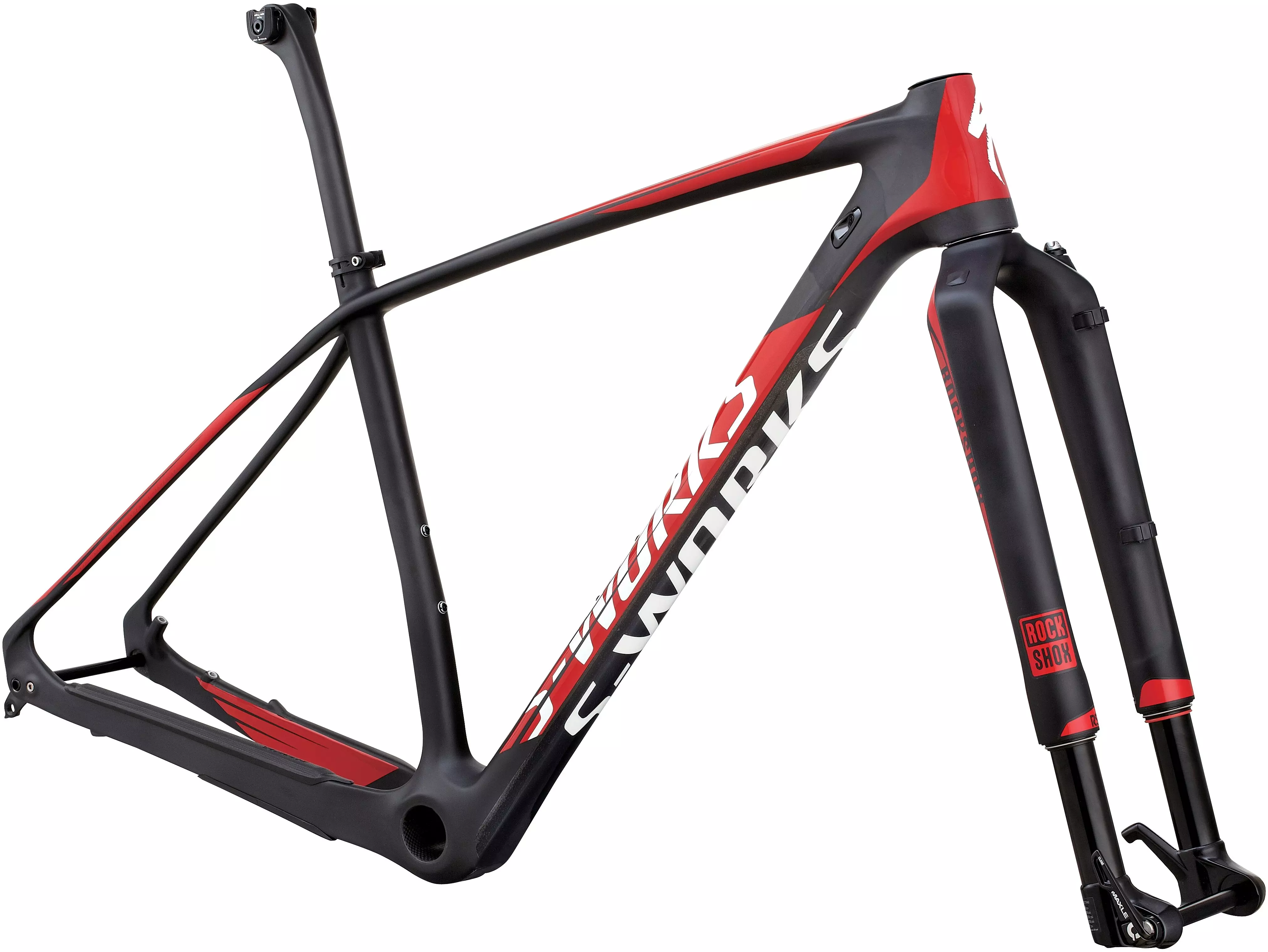

S-Works Stumpjumper 29 Frameset
Overview
Technical Specifications
Geometry
Reviews
No-nonsense, unadulterated speed—that's what our S-Works Stumpjumper Di2 brings to the table. It's made from our finest carbon fiber, and it's built off of our revolutionary XC 29 Geometry for explosive power, incredible climbing prowess, and nimble handling. At the rear, the hardtail design with razor thin seatstays blends maximum pedaling efficiency with added compliance. Add to this our Brain technology at the RockShox RS-1 fork that differentiates between rider and trail input to stay firm under effort and plush over bumps, and you have a bike that sacrifices nothing in its pursuit of speed.
  • To provide the optimal blend of stiffness, light weight, and strength, we constructed the frame from our FACT 11m carbon fiber. And when combined with our XC 29 Geometry, the Stumpjumper is guaranteed to deliver uncompromising, blistering speed come race day—no matter the course.
  • RockShox RS-1 Brain fork is arguably the most sought-after fork in XC racing. Compared to a traditional fork, its inverted design creates a carbon fiber upper that provides superior stiffness, while behaving with more sensitivity to small bumps and more control over larger hits. And with Brain technology, these characteristics are amplified and even more efficient. It also includes our Spike Valve technology that minimizes yaw in cornering, while providing maximum travel in high velocity impacts.
  • An S-Works FACT carbon seatpost features a lightweight construction and a 27.2mm diameter for superb vertical compliance over rough terrain.

Technical Specifications

FRAMESET
SEAT BINDER Specialized, 7050 alloy, single Ti bolt, 31.6mm
HEADSET 1-1/8"" upper, 1-1/2"" lower, threadless, Campy style, cartridge bearings
FRAME FACT 11m carbon, XC 29 Geometry, FACT IS construction, tapered head tube, carbon PF30 BB, internal cable routing, 142mm dropouts, PM 160 rear brake, replaceable alloy derailleur hanger
SUSPENSION
FORK RockShox RS-1 Brain, Solo Air spring, S: 80mm travel, M/L/XL: 95mm travel, Spike Valve, top-mount Brain Fade adjust, rebound adjust, inverted design, tapered carbon crown/steerer, 46mm offset, 15mm Maxle Ultimate thru-axle
COCKPIT
SEATPOST S-Works FACT carbon, 20mm offset, 27.2mm

Geometry

Geometry Chart

Stumpjumper - Geometry

S M L XL
  S M L XL
Stem Length 70mm 90mm 100mm 110mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 350mm 400mm 400mm 400mm
Handlebar Width 720mm 720mm 720mm 720mm
Reach 390mm 414mm 437mm 458mm
Stack 592mm 610mm 625mm 639mm
Wheelbase 1047mm 1078mm 1105mm 1131mm
Bike Stand-Over Height 760mm 799mm 826mm 849mm
Head-Tube Length 90mm 100mm 115mm 130mm
Front-Center 624mm 655mm 682mm 708mm
Fork Rake/Offset 46mm 46mm 46mm 46mm
Head-Tube Angle 71° 71° 71° 71°
Trail 79mm 79mm 79mm 79mm
B-B Height 310mm 310mm 310mm 310mm
Chain-Stay Length 430mm 430mm 430mm 430mm
Fork Length (full) 486mm 496mm 496mm 496mm
Seat-Tube Angle 73.5° 73.5° 73.5° 73.5°
B-B Drop 61mm 61mm 61mm 61mm
Seat-Tube Length 394mm 434mm 470mm 505mm
Top-Tube Length (horizontal) 565mm 593mm 620mm 643mm
