Gallery Image - SJ SW CARBON 275 CARB BLKCP

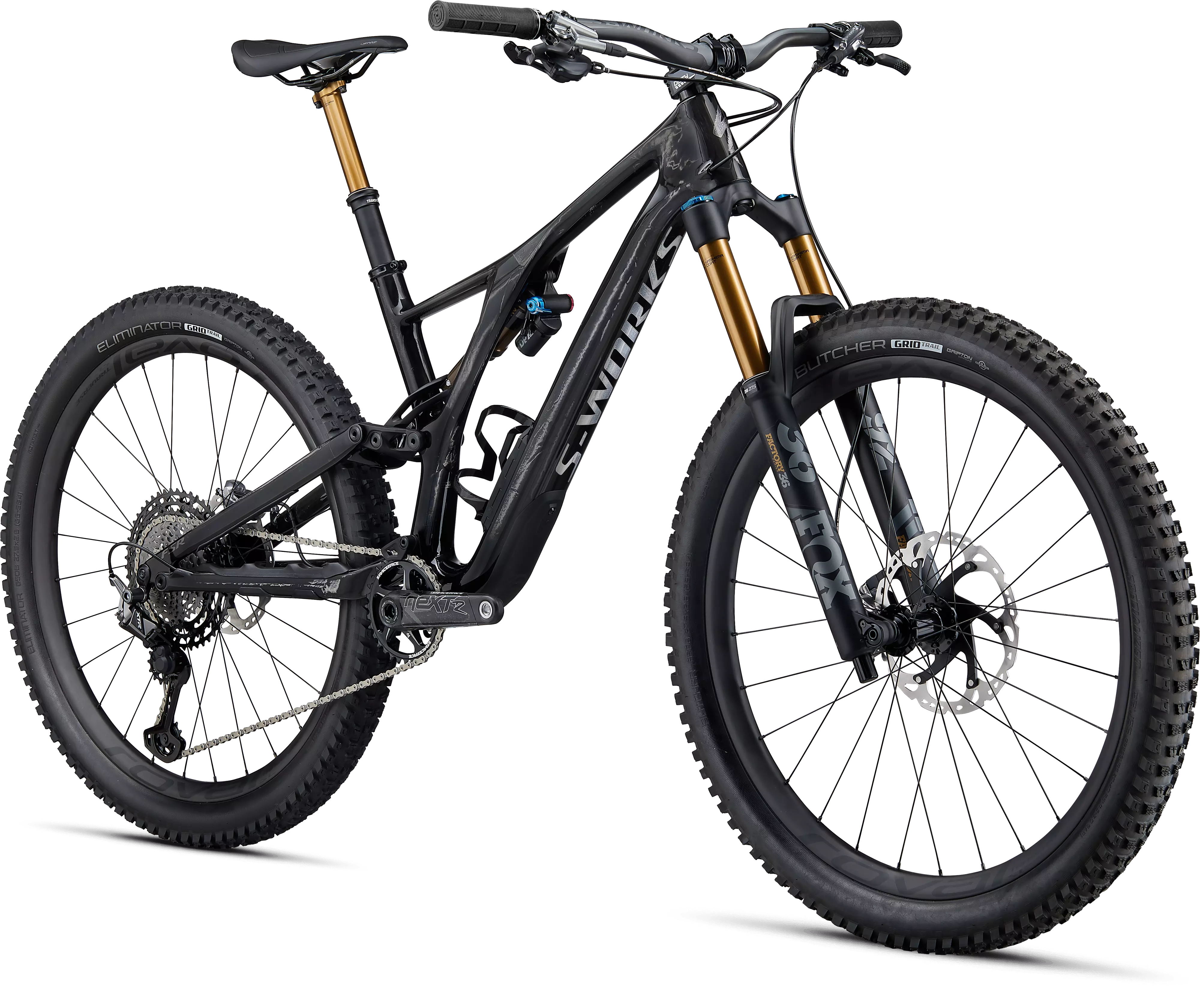

2020 S-Works Stumpjumper 27.5

$9,520

0 Reviews

Color:

GLOSS CARBON / BLACK CHROME

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the color and size you're looking for to search nearby store inventory.

Unavailable

This item is not eligible for ship to home

Unavailable

This item is not available for Find Nearby

Product Details

It’s earned glowing reviews the world over… Our light-yet-strong carbon frame delivers bump-devouring suspension and effortless control. Equipped with the best suspension, drivetrain and wheels available, the S-Works edition dishes out peerless performance.

THE ULTIMATE TRAIL BIKE

The innovative sidearm design makes a lighter, better-handling bike. By directly connecting all three mounting points of the rear-end and shock to the frame, we’ve increased both stiffness and performance over bumps. End result? Total control.

LIGHTWEIGHT, CAPABLE…AND STUNNING

Our carbon chassis melds 150mm of smooth and deep suspension with smart features, including our integrated SWAT™ box downtube storage and painless cable routing. No proprietary bullshit and a threaded bottom bracket also mean that this frame is 100% hassle free.

• One of the lightest—and most capable—trailbikes on the market.

• S-Works delivers 150mm of smooth suspension and unrivaled handling.

• Top-tier suspension courtesy of FOX FLOAT DPX2 Factory rear shock.

Technical Specifications

Frameset

Frame

FACT 11m carbon chassis and rear-end, asymmetrical design, 27.5 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel

Seat Binder

Specialized bolt-type, alloy, 38.6mm

Suspension

Rear Shock

FOX FLOAT DPX2 Factory, Rx Trail Tune, EVOL Air sleeve, Kashima coat, 3-position adjustment w/ Open Mode adjustment, 210x52.5mm

Fork

FOX FLOAT Performance Elite, 36, GRIP2 damper, 51mm offset, 15x110mm, tapered alloy steerer, 150mm of travel

Brakes

Front Brake

Shimano XTR M9120, 4-piston caliper, hydraulic disc, 180mm rotor

Rear Brake

Shimano XTR M9120, 4-piston caliper, hydraulic disc, 180mm rotor

Drivetrain

Shift Levers

Shimano XTR M9100, 12-speed

Rear Derailleur

Shimano XTR M9100, 12-speed, Shadow Plus

Cassette

Shimano XTR M9100, 12-speed, 10-51t

Chain

Shimano XTR M9100, 12-speed w/ quick link

Crankset

Race Face Next R Carbon, 170mm

Chainrings

Steel, 30T

Bottom Bracket

Threaded, 30mm spindle

Wheels & Tires

Rims

Roval Traverse SL Carbon 27.5, hookless carbon, 30mm inner width, hand-built, 2Bliss Ready

Front Hub

Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 28h

Rear Hub

Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, Shimano Micro Spline driver body, 12mm thru-axle, 148mm spacing, 28h

Spokes

DT Competition Race

Front Tire

Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.6"

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.6"

Inner Tubes

Presta, 40mm valve

Cockpit

Stem

Deity, 31.8mm

Handlebars

Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm

Grips

Deity, Knuckleduster, Black

Saddle

Body Geometry Myth 155 S, Body Geometry Henge 143 M/L/XL, hollow ti rails

SeatPost

FOX Factory Transfer, Kashima, 30.9, Shimano Ispec-EV lever (S: 125mm, M/L: 150mm, XL:175mm)

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
