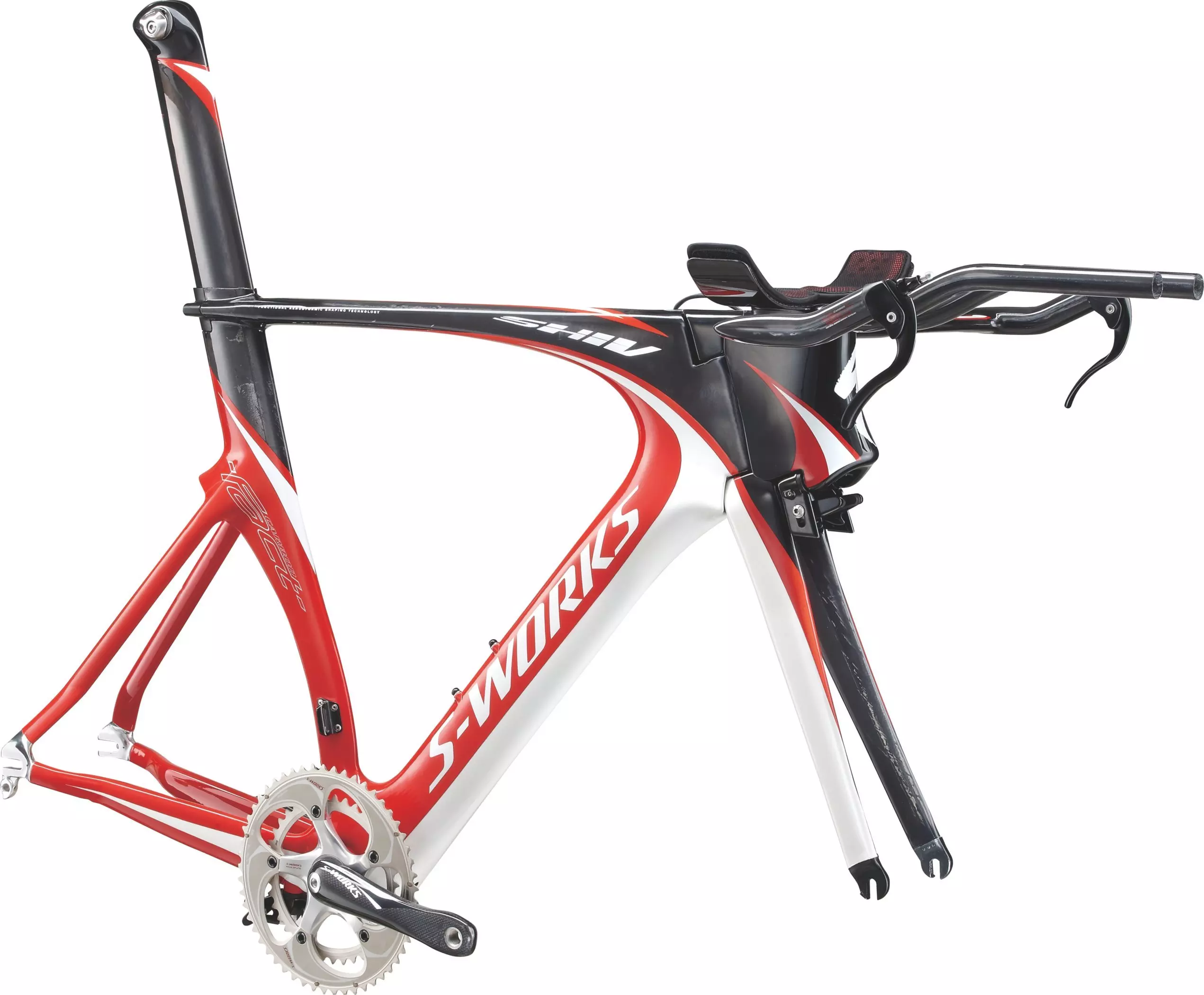

S-Works Shiv Module
$5,500.00
Part No.

S-Works Shiv Module

$5,500.00
Part No.  23478
load-spinner
S-Works Shiv Module
Overview
Technical Specifications
Geometry
Reviews
Elite triathletes took note when the Shiv won a time trial world championship and then demanded access to the same technology.
  • S-Works FACT carbon bladed seatpost is incredibly aerodynamic and stiff and available in two sizes for optimal fit
  • Super stiff and light S-Works FACT carbon monocoque fork is incredibly aerodynamic for the fastest ride on the planet
  • S-Works FACT carbon integrated handlebar/aero bar offers 0-115mm height adjustment for fastest performance in aero position
  • Integrated aerodynamic carbon stem blends with the 1" to 1-1/8" tapered steerer to form a super stiff structure with ultra-low drag
  • S-Works FACT carbon crankset and oversized BB with interchangeable spider and ceramic bearings provides maximum power transfer at minimal weight
  • Designed for the fastest triathletes, this FACT IS 10r carbon frame features a fully integrated cockpit and radical tube shaping for the ultimate optimization of aerodynamics, stiffness, and weight

Technical Specifications

FRAMESET
SEAT BINDER Integrated w/ frame
HEADSET 1"" upper and 1 1/8"" lower Cr-Mo cartridge bearings
FORK S-Works FACT carbon full monocoque
FRAME Specialized FACT 10r carbon, aero tube shape, FACT IS construction, includes fork, seatpost and stem, OSBB
DRIVETRAIN
BOTTOM BRACKET OS integrated, ceramic bearings
CRANKSET S-Works FACT carbon
CHAINRINGS 53 x 39T
COCKPIT
SEATPOST Shiv Aero 400mm
HANDLEBARS S-Works Aero
STEM S-Works Aero
BRAKES
BRAKE LEVERS Tektro Shiv brake levers, alloy w/ adjuster
FRONT BRAKE S-Works aero integrated
REAR BRAKE S-Works aero integrated

Geometry

Geometry Chart

Shiv - Geometry

  Size M L XL
Stem Length 75mm 75mm 75mm 75mm
Crank Length 170mm 172.5mm 175mm 175mm
Handle-Bar Width 400mm 400mm 400mm 400mm
Wheelbase 946mm 961mm 976mm 996mm
Seat-Tube Length, B-B Center to Top 510mm 540mm 560mm 590mm
Head-Tube Length 100mm 100mm 100mm 100mm
Top-Tube Length, Horizontal 527mm 536mm 542mm 555mm
Front-Center 577mm 592mm 607mm 629mm
Head-Tube Angle 72° 72° 72° 72°
Fork Rake 43mm 43mm 43mm 43mm
Trail 65mm 65mm 65mm 65mm
Stand-Over Height 810mm 810mm 810mm 810mm
Chain-Stay Length 395mm 395mm 395mm 395mm
Seat-Tube Angle 74.5° 75° 75.75° 76.25°
B-B Drop 72mm 72mm 72mm 72mm
Seat-Post Length 400mm 400mm 400mm 400mm
