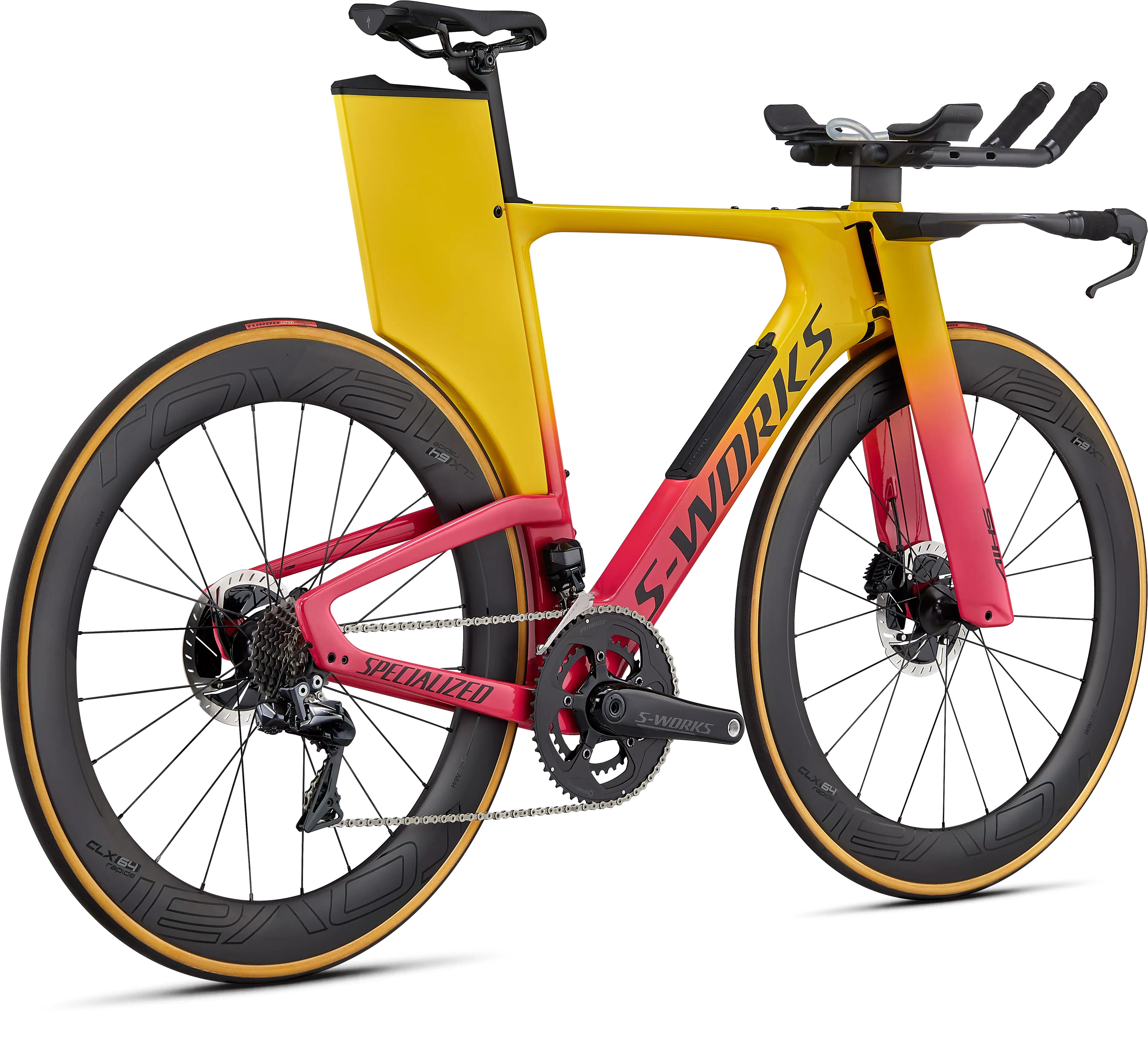

2020 S-Works Shiv Disc
5
1 Reviews
Pro Tip: Use our Shiv Finder to determine the proper Shiv size for you. We've…
Product Details
Pro Tip: Use our Shiv Finder to determine the proper Shiv size for you.
We've never been ones for dogmatic rules. And with a little defiance of the UCI's rule book, the Shiv sets the new standard for speed—again. It keeps its aero, fuel, and fit focus, but does so in an entirely new and novel way. Yes, it has disc brakes. Yes, it's easy to travel with. And yes, it takes aero to unheard of heights using storage and fit features that also make you faster. There's only one bike that's going to help get you to the top of the podium this season and that's the Shiv Disc.
To ensure that it's "race-ready, right out of the box," we've spec'd the S-Works Shiv Disc with only the top components. Shimano's Dura-Ace Di2 with hydraulic disc brakes is in charge of both shifting and braking duties. Our S-Works Power Cranks, meanwhile, provide you with all the power data you'd ever need. And for the rolling stock, the Roval CLX 64 Disc wheels are not only extremely aerodynamic, but they're far lighter than any other wheels in their class.
- The incredibly aerodynamic, crosswind-optimized, and non-UCI-legal FACT carbon frame features all the details you’ve asked for. It’s packable, adjustable, has our Hydration and Nutrition Fuelcell systems, and it makes it easy to find your perfect fit. Compared to the fastest 2011 Shiv setup possible (Fuelcell, slammed bars, clean cable routing, BTA bottle), the Shiv Disc is nearly a minute faster over the Kona course. With a more typical Shiv setup, the Shiv Disc is faster by minutes—plural. So, no matter how much you need to carry, you’re sure to have the fastest setup come race day.
- What was that about storage? Just like with the original Shiv, the Shiv Disc features both Hydration and Nutrition Fuelcell storage options, but we didn't simply reuse them. Instead, we designed them from the ground up. We moved the Hydration Fuelcell from inside the frame to the rear of the bike. Now, it's entirely hidden within the frame (even the hydration hose), which not only allows for more fluid capacity, but it also helps with aerodynamics. The Nutrition Fuelcell utilizes the additional volume created by the "New Shape of Speed" for the down tube, and this creates plenty of room for snacks. How many snacks? 10-12 gels, 4-5 bars, or 5-6 chews fit with ease, and it can also be removed to easily access the Shimano Di2 A-Junction Box or a flat repair kit
- We also made sure that the Shiv is plenty adjustable for you to dial-in your fit. The frame comes in four different sizes that are based on over 1,000 Retül fits with actual athletes, all to ensure that your ideal fit is achievable. Our Shiv Finder tool makes it easy to determine your size based on your current position, so getting your most powerful aerodynamic position is easily achievable.
- Adjustability was also high on the list for the aerobars, extensions, and arm pads, so the cockpit is adjustable on nearly every access. Need more or less base bar stack? Simply loosen a single bolt on each side and tilt it up or down. The aerobars, themselves, also offer plenty of adjustability—fore, aft, and pad width, all with aggressive and relaxed positions in mind. An added bonus of this adjustability is the ease of travel. All you have to do is fold the base bar down to the fork, unbolt the cockpit, and your Shiv is ready for the bike box. We couldn't make it any easier.
Technical Specifications
Frameset
Frame
S-Works FACT 11r carbon, FACT IS construction, crosswind-optimized airfoils, OSBB, Integrated Fit System, Integrated Nutrition and Hydration Fuelcell, flat-mount disc brakes
Suspension
Fork
FACT carbon, integrated Fit System, flat-mount disc, 12x100mm thru-axle
Cockpit
Handlebars
Specialized Shiv Aerobar, carbon, variable stack adjust
Tape
Roubaix S-Wrap
Saddle
Sitero Pro, carbon rails
SeatPost
Shiv Disc Carbon Post, 25 Forward Offset and 0mm Offset
Brakes
Rear Brake
Shimano Dura-Ace Di2 9170, hydraulic disc
Front Brake
Shimano Dura-Ace Di2 9170, hydraulic disc
Drivetrain
Front Derailleur
Shimano Dura-Ace Di2 R9150, braze-on
Rear Derailleur
Shimano Dura-Ace Di2 R9150, 11-speed
Chain
Shimano Dura-Ace, 11-speed
Cassette
Shimano Dura-Ace 9100, 11-speed, 11-28t
Crankset
S-Works Power Cranks, dual-sided power measurement, +/- 1.5% accuracy
Chainrings
52/36T
Bottom Bracket
OSBB, CeramicSpeed bearings
Wheels & Tires
Front Wheel
Roval CLX 64 Disc rim, Roval AFD1, Center Lock™, CeramicSpeed bearings, 21h
Rear Wheel
Roval CLX 64 Disc, carbon, tubeless-ready, Win Tunnel Engineered, 64mm depth, DT Swiss 240 internals, CeramicSpeed bearings, 24h
Spokes
Roval CLX 64 tubeless valve stem
Front Tire
Turbo Cotton, 320 TPI, 700x24mm
Rear Tire
Turbo Cotton, 320 TPI, 700x24mm
Inner Tubes
Turbo Ultralight, 80mm Presta valve
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | S | M | L | |
|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm |
| Handlebar Width | 410mm | 410mm | 410mm | 410mm |
| Stem Length | 58mm | 58mm | 58mm | 58mm |
| Saddle Width | one sizemm | one sizemm | one sizemm | one sizemm |
| Seatpost Length | 350mm | 350mm | 350mm | 350mm |
| Effective Reach to Center of Pad, REARWARD Position | 308mm | 321mm | 341mm | 361mm |
| Effective Reach to Center of Pad, FORWARD Position | 525mm | 541mm | 556mm | 576mm |
| Effective Stack to Pad Holder, LOWEST Position | 556mm | 561mm | 585mm | 617mm |
| Effective Stack to Pad Holder, HIGHEST Position | 671mm | 676mm | 700mm | 732mm |
| Stack | 484mm | 490mm | 514mm | 546mm |
| Reach | 372mm | 386mm | 401mm | 421mm |
| Head Tube Length | 70mm | 70mm | 94mm | 127mm |
| Head Tube Angle | 70.25° | 72° | 72° | 72° |
| BB Height | 265mm | 265mm | 265mm | 265mm |
| BB Drop | 72mm | 72mm | 72mm | 72mm |
| Trail | 68mm | 57mm | 62mm | 62mm |
| Fork Length, Full | 385mm | 385mm | 385mm | 385mm |
| Fork Rake/Offset | 50mm | 50mm | 45mm | 45mm |
| Front Center | 578mm | 579mm | 596mm | 627mm |
| Chainstay Length | 415mm | 415mm | 415mm | 415mm |
| Wheelbase | 982mm | 983mm | 1001mm | 1031mm |
| Top Tube Length, Horizontal | 484mm | 499mm | 520mm | 547mm |
| Bike Standover Height | 752mm | 774mm | 798mm | 830mm |
| Seat Tube Length | 490mm | 522mm | 547mm | 580mm |
| Seat Tube Angle | 77° | 77° | 77° | 77° |
