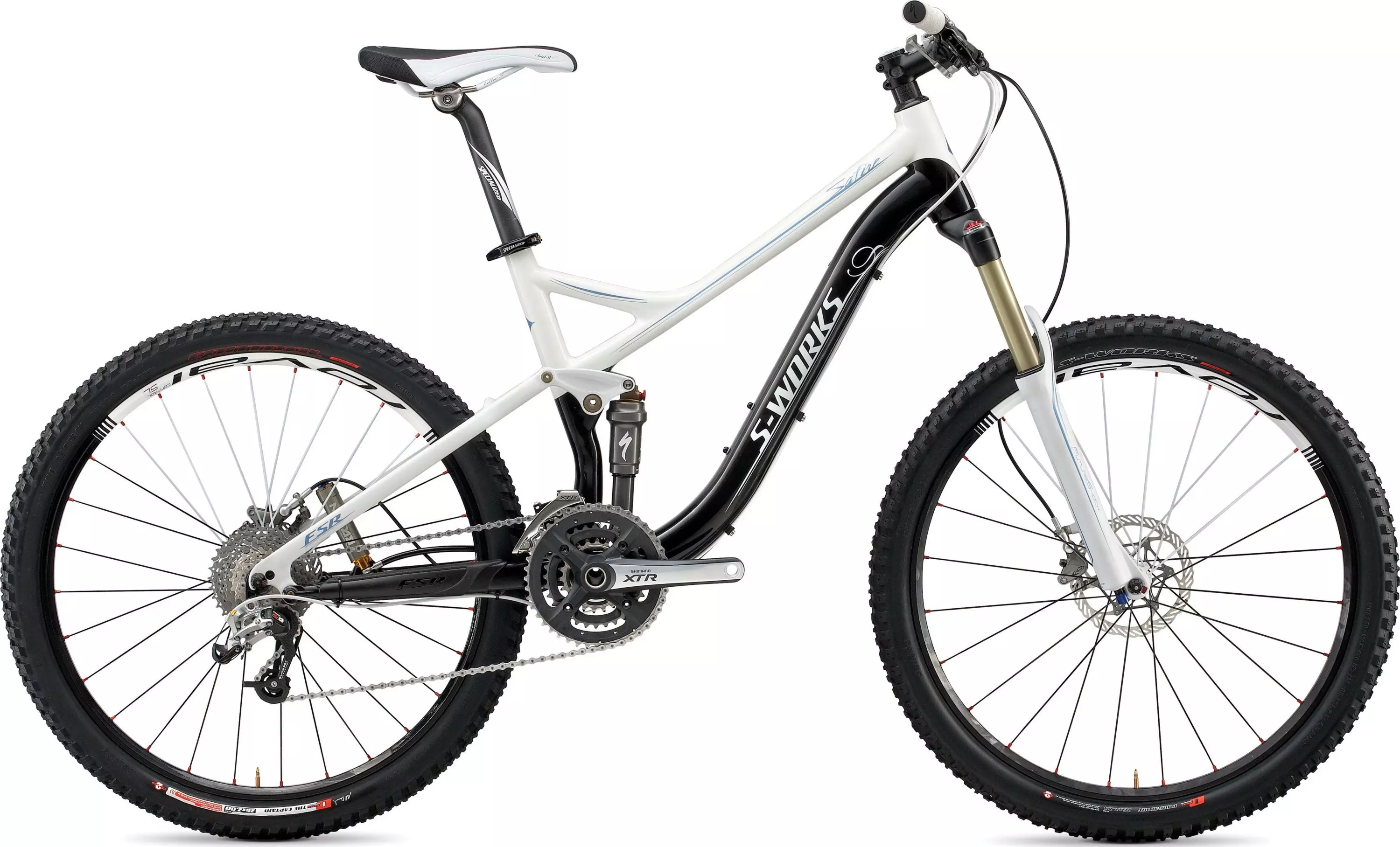

2010 S-Works Safire

0 Reviews

If you aren't already obsessed with trail riding, the Safire will inspire you to…

Color:

Carbon/White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

If you aren't already obsessed with trail riding, the Safire will inspire you to keep coming back for more. With an intuitive FlowControl Brain damper, FSR suspension and an ultra low standover frame that's balanced for climbing and descending, it's easily the most versatile women's XC Trail bike on the market and the most fun you'll have on the trail.

Fast-control Shimano XTR crankset is the pinnacle of lightness, durability and performance
Roval Control SL XC wheels are sturdy, yet lightweight, with a stiff, oversized axle to hold up to the rough stuff
S-Works The Captain front tire with Aramid bead and The Captain Control rear tire combine for versatile XC performance approved by XC legend Ned Overend
Specialized Ariel SL women's saddle with hollow Ti rails features ultralight tuned density foam and a Body Geometry ergonomic cutout for pressure relief
Safire-tuned AFR Brain rear shock with Trail Tune inertia valve and Brain Fade adjustment dials in the perfect blend of pedaling efficiency and bump compliance
New Avid XX hydraulic disc brakes feature pad contact adjustment and tool-free reach adjust carbon levers, with magnesium calipers and Ti hardware for a totally pro package
120mm-travel Future Shock S120 fork uses specially tuned Safire spring rates, a stiff, tapered steerer, and Trail Tune and Brain Fade features for integrated bump performance
Az1-constructed FACT 10m carbon FSR frame and seatstays uses women's-specific geometry and tubing, full cartridge bearing pivots and a DMD derailleur mount to create the most advanced trail bike for women

Technical Specifications

FRAMESET

FRAME

S-Works Safire FSR FACT 10m carbon, women's main triangle, Az1 construction, M5 alloy chainstays with Brain mount, FACT 10m carbon seatstays with carbon drive side dropout, DMD Direct Mount F.Der, full cartridge bearing pivots, 120mm travel

HEADSET

1-1/8 and 1.5"" Threadless, Campy style upper with 1.5"" lower cartidge bearing

SEAT BINDER

7050 hard annodized alloy collar w/ QR, 36.9mm clamp ID, for carbon frame

SUSPENSION

REAR SHOCK

Specialized AFR Brain Shock w/ remote Trail Tune inertia valve, rebound adj. and Brain Fade, 7.25x1.75"", Safire tuned

FORK

Specialized Future Shock S120, 120mm travel, single sided air spring and damper, Trail Tune, Brain Fade, rebound adj., carbon 1-1/8"" to 1.5"" steerer, Safire tuned

WHEELS

RIMS

Roval Control SL, disc, 24mm

FRONT HUB

Roval Control SL XC

REAR HUB

Roval Control SL XC

FRONT TIRE

S-Works The Captain, 26x2.2"", 120 TPI, tubeless ready aramid bead, dual compound

REAR TIRE

The Captain Control, 26x2.0"", 60 TPI, tubeless ready Aramid bead, dual compound

INNER TUBES

Ultralight presta valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano M971 XTR, DMD, top swing, dual pull

REAR DERAILLEUR

SRAM X-0, 9-speed, mid cage

SHIFT LEVERS

SRAM X-0, carbon/aluminum trigger

CASSETTE

Shimano M970 XTR Ti, 9-speed, 11-34t

CHAIN

Shimano XTR, 9-speed

CRANKSET

Shimano FC-M970 XTR, S/M: 170mm, L: 175mm

CHAINRINGS

44A x 32A x 22S, 4-bolt, 104/64mm

BOTTOM BRACKET

Custom Shimano integrated

COCKPIT

SEATPOST

S-Works Carbon 30.9mm single-bolt head, S: 300mm: M/L 350mm

STEM

Syntace F109, 6 degree rise, 31.8mm

HANDLEBARS

Specialized XC Carbon riser bar, 31.8mm, 640mm wide, 8 degree back sweep, 6 degree up

GRIPS

Specialized waffle lock on grip

SADDLE

Specialized women's Ariel SL, Ti rails, SL foam, 143mm

BRAKES

FRONT BRAKE

Custom Avid XX R, alloy backed semi-met pads, magnesium caliper and lever body w/ carbon blade, ti hardware package, tooless reach and pad contact adj, 160mm rotor

REAR BRAKE

Custom Avid XX R, alloy backed semi-met pads, magnesium caliper and lever body w/ carbon blade, ti hardware package, tooless reach and pad contact adj, S/M: 140mm, L: 160mm rotor

BRAKE LEVERS

Custom Avid XX R with tooless reach and pad contact adj

ACCESSORIES

PEDALS

None

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L
Ground-Top	905mm	923mm	923mm
Bottom Bracket Height - Low Setting	335mm	335mm	335mm
Top Tube Length (Horizontal)	542mm	565mm	605mm
Head Tube Height	128mm	148mm	158mm
Head Tube Angle - Low Setting	68.5°	68.5°	68.5°
Seat Tube Angle (Actual) - Low Setting	71°	71°	71°
Seat Tube Angle (Effective) - Low Setting	74.5°	74.5°	74.5°
Top Tube Length (Actual)	527mm	550mm	582mm
Seat Tube Length - Center to Top	393mm	431mm	470mm
Wheel Base	1071mm	1096mm	1137mm
Standover Height	690mm	701mm	728mm
Stack	570mm	588mm	588mm
Reach	382mm	400mm	441mm
Chainstay Length	420mm	420mm	420mm
Crank Length	170mm	170mm	175mm
Handlebar Width	640mm	640mm	640mm
Stem Length	60mm	75mm	75mm
Seatpost Length	350mm	350mm	350mm
