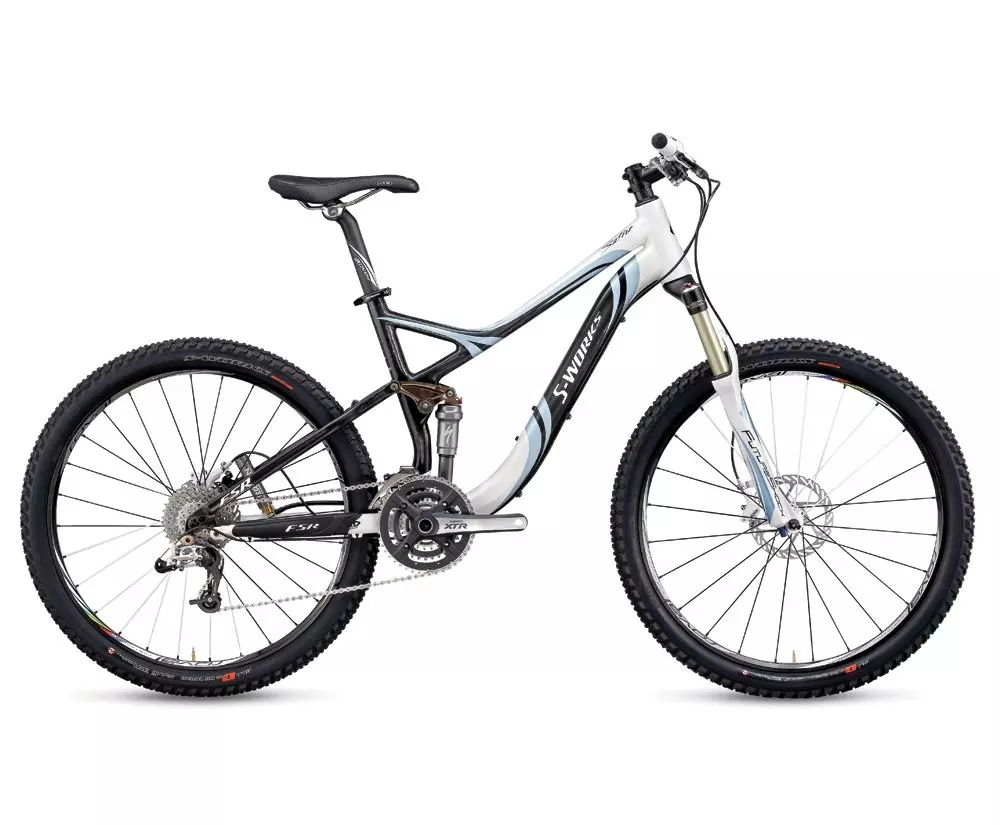

S-Works Safire FSR
$7,700.00
Part No.

S-Works Safire FSR

$7,700.00
Part No.  22543
load-spinner
S-Works Safire FSR
Overview
Technical Specifications
Geometry
Reviews
Easily the most versatile women's XC Trail bike on the market, the 120mm-travel Safire uses women's-specific geometry, Total Suspension Integration and an intuitive FlowControl Brain damper to deliver a sure-fire combination of speed, efficiency and superior handling. Fit for every trail you can get your wheels on.

Technical Specifications

FRAMESET
SEAT BINDER 7050 hard annodized alloy collar w/ QR, 36.9mm clamp ID, for carbon frame black
HEADSET 1-1/8"" to 1.5"" Threadless, Campy style upper and lower cartridge bearing w/ adapter
FRAME S-Works Safire FSR FACT 10m carbon, Designs for Women specific main triangle, Az1 construction, M5 alloy chainstays with Brain mount, FACT 10m carbon seatstays with carbon drive side dropout, DMD Direct Mount F.Der, full cartridge bearing pivots, 120mm travel
WHEELS
FRONT HUB Roval Controle SL XC Carbon, OS, 28mm axle caps, straight pull
REAR HUB Roval Controle SL XC, OS, stragiht pull
INNER TUBES Specialized Ultralight 26x2.0"", presta
SPOKES DT Swiss Aerolite 2.0/1.6, black, alloy nipples
RIMS Roval Controle SL, disc, 24mm
FRONT TIRE S-Works The Captain, 26x2.2"", 120 TPI, Aramid bead, dual compound, tubeless ready
REAR TIRE S-Works The Captain, 26x2.0"", 120 TPI, Aramid bead, dual compound, tubeless ready
DRIVETRAIN
BOTTOM BRACKET Shimano M-970 XTR
CHAIN Shimano XTR, 9-speed
CRANKSET Shimano FC-M970 XTR, S/M: 170mm, L: 175mm
CASSETTE Shimano M970 XTR Ti, 9-speed, 11-34t
SHIFT LEVERS SRAM X-0, carbon/aluminum trigger, 9-speed
FRONT DERAILLEUR Shimano M971 XTR, DMD, top swing, dual pull
CHAINRINGS 22S x 32A x 44A, 4-bolt, 104/64mm
REAR DERAILLEUR SRAM X-0, 9-speed, mid cage
COCKPIT
SADDLE Specialized Women's Ariel SL, Ti rails, SL foam, 143mm
SEATPOST S-Works Carbon 30.9mm single-bolt head, S: 300mm: M/L 350mm
GRIPS Specialized thin lock on grip
HANDLEBARS Specialized XC Carbon rise, OS 31.8 rise bar, 620mm wide, 6x8 degree w/SBC logo
STEM Syntace F119 OS stem, 31.8, 6 degree rise
BRAKES
BRAKE LEVERS Custom Avid Ultimate SL Mag Hydraulic
FRONT BRAKE Custom Avid Ultimate SL Mag, alloy backed organic pads, magnesium caliper and lever body w/ carbon blade, ti hardware package, 160mm rotor
REAR BRAKE Custom Avid Ultimate SL Mag, alloy backed organic pads, magnesium caliper and lever body w/ carbon blade, ti hardware package, S/M: 140mm, L/XL: 160mm rotor
ACCESSORIES
PEDALS None
SUSPENSION
FORK Specialized Future Shock S120, 120mm travel, single sided air spring and damper, Trail Tune, Brain Fade, rebound adj., carbon 1-1/8"" to 1.5"" steerer, Safire tuned
REAR SHOCK Specialized AFR Brain Shock w/ remote Trail Tune inertia valve, rebound adj. and Brain Fade, 7.25x1.75"", Safire tuned

Geometry

Geometry Chart

Safire - Geometry

S M L
  S M L
Stem Length 70mm 90mm 90mm
Crank Length 170mm 170mm 175mm
Seatpost Length 367mm 367mm 367mm
Handlebar Width 640mm 640mm 640mm
Chainstay Length 420mm 420mm 420mm
Top Tube Length (Actual) 527mm 550mm 582mm
Top Tube Length (Horizontal) 542mm 565mm 605mm
Head Tube Angle - Low Setting 68.5° 68.5° 68.5°
Standover Height 690mm 701mm 728mm
Wheel Base 1071mm 1096mm 1137mm
Head Tube Height 128mm 148mm 158mm
Seat Tube Angle (Actual) - Low Setting 71° 71° 71°
Seat Tube Length - Center to Top 393mm 431mm 470mm
Seat Tube Angle (Effective) - Low Setting 74.5° 74.5° 74.5°
Bottom Bracket Height - Low Setting 335mm 335mm 335mm
