2019 S-Works Roubaix

0 Reviews

For years, your race bike selection was limited to stiff and snappy or compliant…

Product Details

Add Icon

For years, your race bike selection was limited to stiff and snappy or compliant and comfortable—that is, until the new Roubaix. Featuring a completely Rider-First Engineered™ frame, our Future Shock technology, and a top-level build kit, the S-Works Roubaix with Shimano Dura-Ace Di2 is right at home at a local fondo, a Saturday group ride, or a cobbled road race.

The frame is one of the lightest that we've ever made, and it's been constructed from our top-tier FACT 11r carbon fiber. Its stiffness levels are also off the charts, and compared to the SL4 iteration of yesteryear, you'll experience a whole new, faster, and more efficient geometry. Through some sophisticated engineering, however, we've managed to keep the same fit, feel, and position that we've all come to love from the SL4, and kept it consistent throughout the size-range with our Rider-First Engineered™ construction.

Of course, you're probably thinking, "get on to the suspension thing up front." We call it Future Shock, and essentially, it's a piston in the head tube with 20mm of travel. We developed this technology in partnership with McLaren Applied Technologies, and the result of this are a host of drastic performance improvements, namely in the vertical compliance department. Without giving a physics lecture, we found that focusing on vertical compliance, instead of fork splay, meant that we could improve smoothness, speed, and comfort in one fell swoop. And of all the bikes that we've tested with our Rolling Efficiency Model, the Roubaix outperforms anything on the market.

We spec'd our cobble-crushing S-Works frame with the legendary performance of the Shimano Dura-Ace 9150 Di2 electronic build kit and 9170 hydraulic disc brakes, a full assortment of S-Works bits, and hand-built Roval CLX 32s with the legendary CeramicSpeed bearings and custom hubs. Add it all up, and you get a race bike at heart, with the technology to float over the roughest roads.

  • Features our Rider-First Engineered™ design that ensures every frame size has the same legendary responsiveness and smooth ride quality that you'd expect from a Roubaix. The S-Works FACT 11r frameset is our highest quality carbon frame, offering the ideal blend of light overall weight and targeted stiffness, while the all-new Future Shock "suspension" system at the cockpit delivers a revolutionary degree of comfort and control.

  • Shimano's Dura-Ace group offers exceptionally crisp shifts, smooth braking modulation, and it keeps the overall weight of this Roubaix at an absolute minimum.

  • The Roval CLX 32 wheelset is the perfect balance of light weight, durability, and aerodynamics. It's stiff enough for sprinting, strong enough for abuse, and its CeramicSpeed bearings keep things silky-smooth, making them the ultimate all-rounders.

Technical Specifications

Add Icon

SUSPENSION

FORK

Specialized FACT carbon, 12x100mm thru-axle

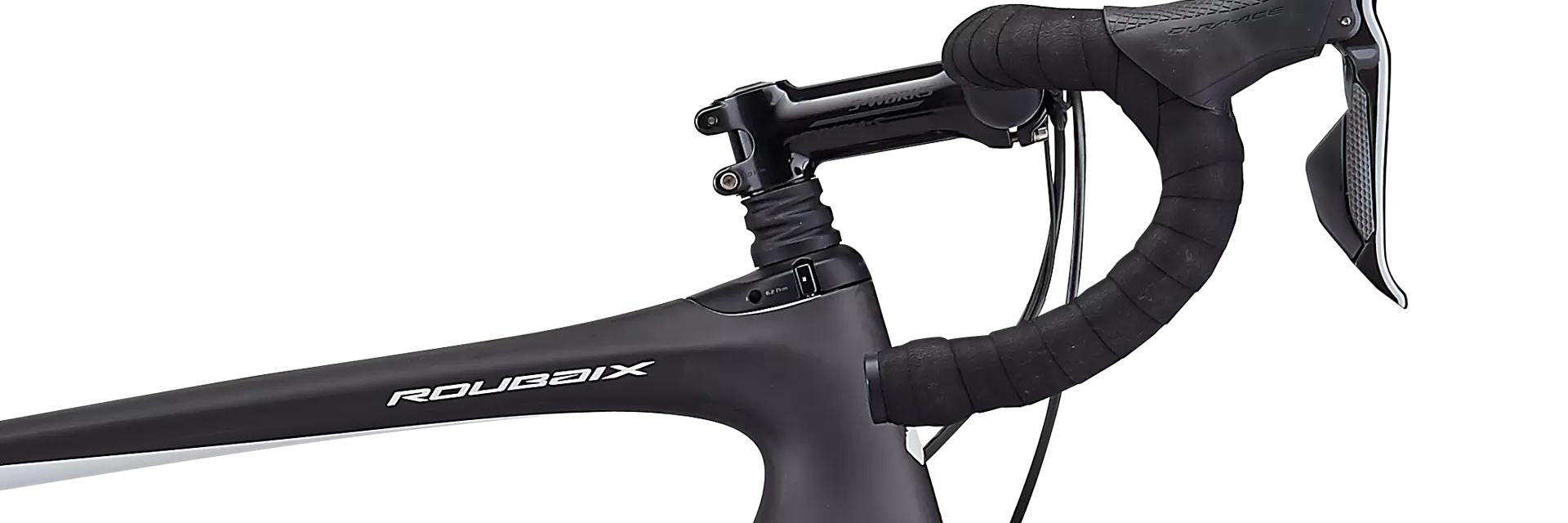

COCKPIT

HANDLEBARS

S-Works Carbon Hover Drop, 125x75mm

STEM

S-Works SL, alloy, titanium bolts, 6-degree rise

TAPE

S-Wrap Roubaix w/ sticky gel

SADDLE

Body Geometry S-Works Phenom, carbon rails, 143mm

SEATPOST

S-Works CG-R, FACT carbon fiber, single-bolt, 27.2mm

BRAKES

FRONT BRAKE

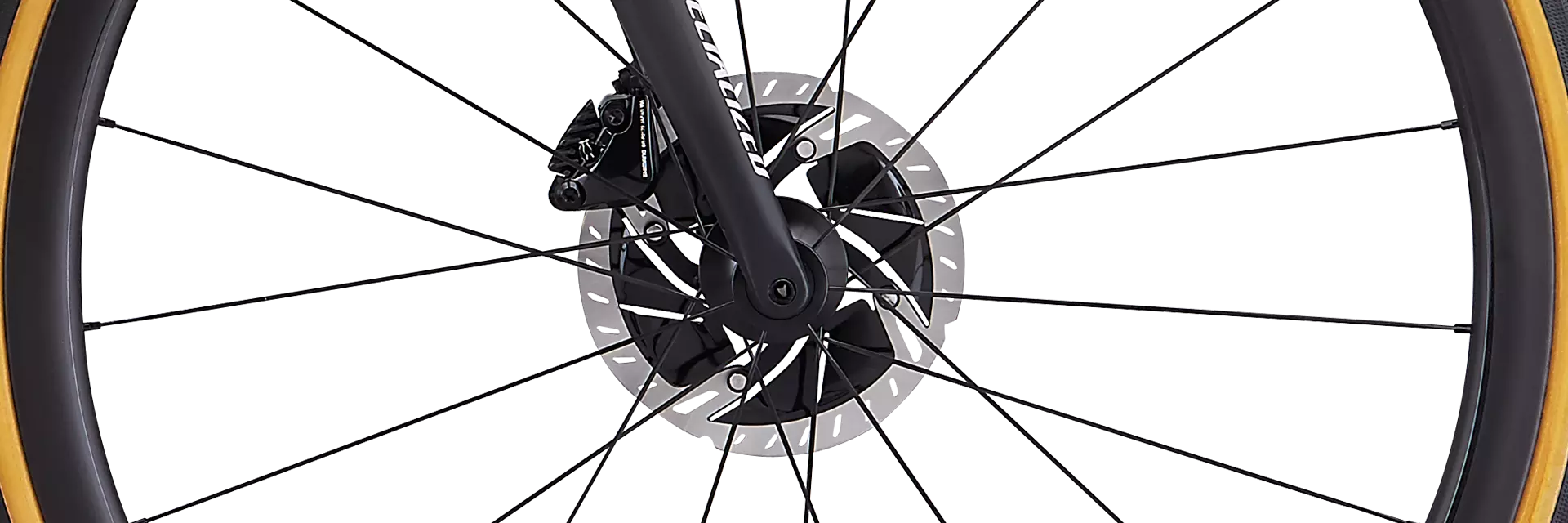

Shimano Dura-Ace, hydraulic disc

REAR BRAKE

Shimano Dura-Ace, hydraulic disc

DRIVETRAIN

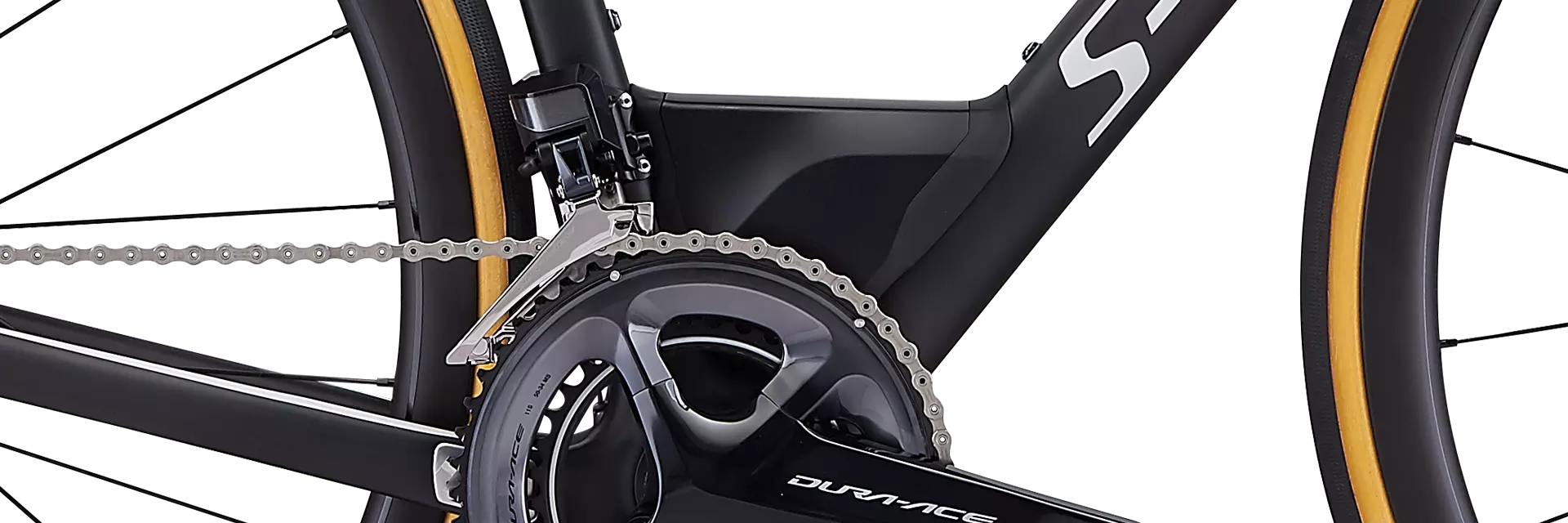

FRONT DERAILLEUR

Shimano Dura-Ace Di2 R9150, braze-on

REAR DERAILLEUR

Shimano Dura-Ace Di2 R9150, 11-speed

CASSETTE

Shimano Dura-Ace R9100, 11-speed, 11-30t

CRANKSET

Shimano Dura-Ace R9100, HollowTech 2, 11-speed

CHAINRINGS

50/34T

BOTTOM BRACKET

CeramicSpeed

CHAIN

Shimano Dura-Ace, 11-speed

SHIFT LEVERS

Shimano Dura-Ace Di2 Disc R9170

WHEELS & TIRES

FRONT WHEEL

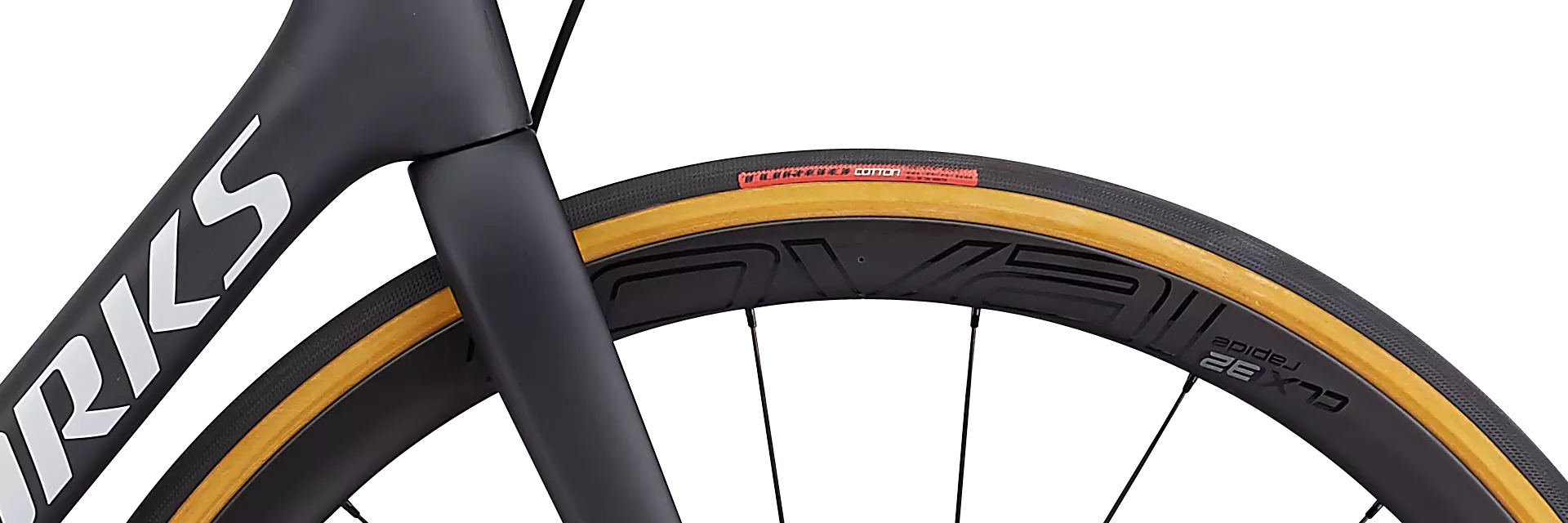

Roval CLX 32 Disc, Win Tunnel Engineered, carbon rim, 32mm depth, Roval AFD hub, CeramicSpeed bearings, 21h

REAR WHEEL

Roval CLX 32 Disc, Win Tunnel Engineered, carbon rim, 32mm depth, Roval AFD hub, CeramicSpeed bearings, 24h

REAR HUB

Roval CLX32 tubeless valve stem

FRONT TIRE

Turbo Cotton, 700x28

REAR TIRE

Turbo Cotton, 700x28

INNER TUBES

Presta, 48mm valve

ACCESSORIES

PEDALS

Nylon, 105x78x28mm, loose ball w/reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
495254565861
Crank Length170mm170mm172.5mm172.5mm175mm175mm
Handlebar Width400mm420mm420mm420mm440mm440mm
Stem Length80mm90mm100mm100mm110mm110mm
Saddle Width143mm143mm143mm143mm143mm143mm
Seatpost Length350mm350mm400mm400mm450mm450mm
Seat Tube Length, BB Center to Top425mm462mm481mm501mm522mm563mm
Fork Rake50mm50mm44mm44mm44mm44mm
Standover Height715.5mm743mm762mm785mm813mm844.3mm
Stack549mm569mm585mm611mm644mm665mm
Reach369mm371mm375mm381mm386mm392mm
Head Tube Length90mm110mm125mm150mm185mm205mm
Head Tube Angle72°72.25°72.75°73.5°73.5°74°
BB Drop77.5mm77.5mm76mm76mm74.5mm74.5mm
Trail58.5mm57mm61mm55mm55mm52mm
Front Center580mm586mm584mm590mm605mm612mm
Chainstay Length413mm413mm415mm415mm418mm418mm
Wheelbase981mm987mm987mm993mm1011mm1018mm
Top Tube Length, Horizontal527mm534.9mm545mm561.8mm576.3mm588.5mm
Seat Tube Angle74°74°74°73.5°73.5°73.5°
