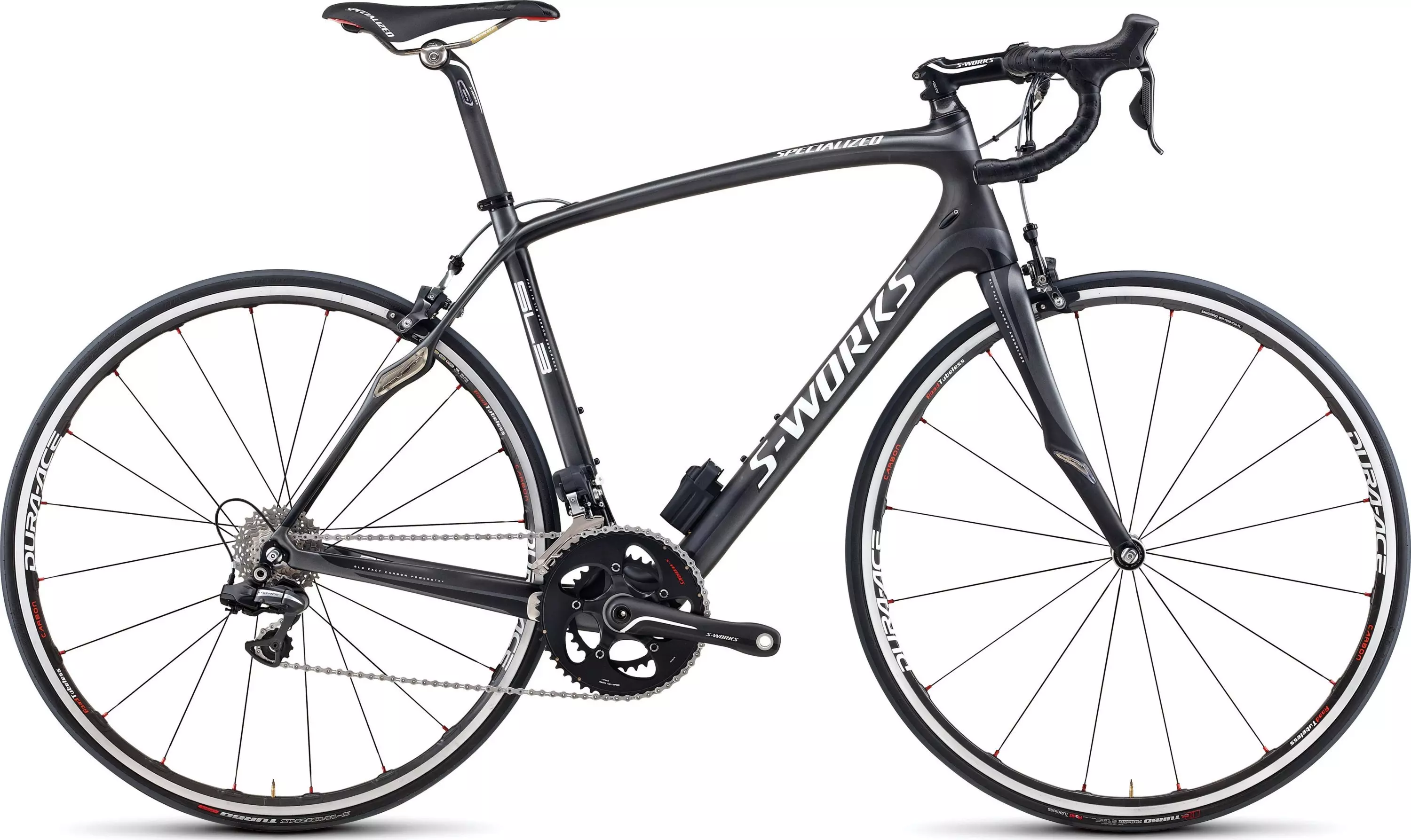

S-Works Roubaix SL3 Di2
Part No.

S-Works Roubaix SL3 Di2

Part No.
Please select an option
S-Works Roubaix SL3 Di2
Technical Specifications
With three consecutive victories at Paris-Roubaix, the S-Works Roubaix's smoother, faster combination of torsional rigidity and vertical compliance is proven superior in long, grueling races. Advanced electronic Di2 shifting for ultimate performance.
  • New FACT IS 11r carbon SL3 frame weighs less than 1000grams, with increased torsional stiffness, and Zertz seatstay inserts for the fastest most compliant endurance bike available
  • FACT full carbon monocoque fork with vibration-damping Zertz inserts is ultra light and durable
  • High performance Shimano Dura Ace carbon tubeless wheelset enhances ride quality
  • Specialized S-Works FACT compact carbon crankset with oversized BB, removable carbon spider, and ceramic bearings has the highest strength to weight ratio for unparalleled efficiency and power transfer
  • S-Works SL ergonomic carbon handlebars for superior fit, comfort, stiffness and strength at minimal weight
  • Body Geometry Chicane Carbon saddle sports a more traditional rounded shape, with a full carbon shell and hollow Ti rails for lightweight support
  • State-of-the-art Shimano Dura-Ace Di2 electronic 10-speed shifters are the quickest, most precise shifters out there, at the gentle touch of a finger

Technical Specifications

CHAIN Shimano Dura-Ace
BOTTOM BRACKET OS integrated, ceramic bearings
FRONT DERAILLEUR Shimano Dura-Ace Di2, braze-on
SHIFT LEVERS Shimano Dura-Ace Di2, flight deck compatible
CASSETTE Shimano Dura Ace, 10-speed, 11-27t
REAR DERAILLEUR Shimano Dura-Ace Di2
REAR WHEEL Shimano Dura-Ace Carbon Tubeless
INNER TUBES Standard presta valve
FRONT TIRE S-Works Turbo Tubeless, 700x23c, carbon bead, 127TPI
REAR TIRE S-Works Turbo Tubeless, 700x23c, carbon bead, 127TPI
FRONT WHEEL Shimano Dura-Ace Carbon Tubeless
SADDLE Body Geometry Avatar Team w/ solid Ti rails
TAPE Specialized S-Works Roubaix wrap with neoprene pads
SEATPOST S-Works FACT carbon w/ Zertz insert, 27.2mm
STEM S-Works 3D forged 7050 alloy w/ carbon-wrap top and front cap
HANDLEBARS S-Works SL Carbon, shallow drop
FRONT BRAKE Shimano Dura-Ace
BRAKE LEVERS Shimano Dura-Ace STI, flight deck compatible
REAR BRAKE Shimano Dura-Ace
PEDALS Black cage, body & toe clips w/ strap
HEADSET 1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings w/ 20mm carbon cone spacer and 20mm of carbon spacers
SEAT BINDER Forged alloy, 32.6mm
FORK S-Works FACT carbon full monocoque w/ Zertz inserts
FRAME S-Works Roubaix FACT 11r carbon, FACT IS construction, 1-1/8"" to 1 -3/8"" head tube, compact race design w/ Zertz inserts, internal cable routing, carbon OSBB


Geometry Chart

Roubaix - Geometry

  49 52 54 56 58 61
Wheelbase 983mm 989mm 1000mm 1010mm 1029mm 1038mm
Seat-Tube Length, B-B Center to Top 445mm 475mm 495mm 515mm 540mm 565mm
Head-Tube Length 125mm 145mm 165mm 190mm 225mm 245mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 582mm 588mm 595mm 606mm 621mm 628mm
Head-Tube Angle 72° 72° 72° 72.5° 72.5° 73°
Stand-Over Height 730mm 756mm 776mm 798mm 829mm 851mm
Fork Rake 49mm 49mm 49mm 49mm 49mm 49mm
Trail 59mm 59mm 59mm 56mm 56mm 53mm
Chain-Stay Length 412mm 412mm 415mm 415mm 418mm 420mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 73mm 73mm 71.5mm 71.5mm 70mm 70mm
Seat-Post Length 0mm 0mm 0mm 0mm 0mm 0mm
