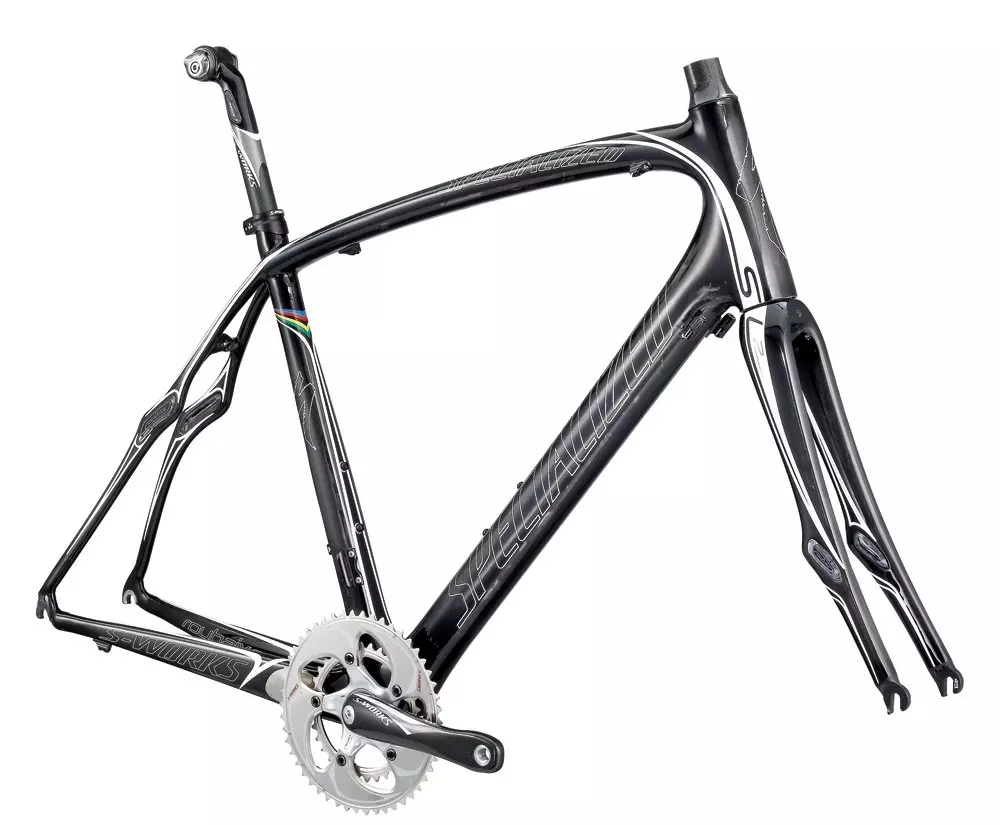

S-Works Roubaix SL2 Module
Part No.

S-Works Roubaix SL2 Module

Part No.  22401
S-Works Roubaix SL2 Module
Technical Specifications
SERIOUSLY SMOOTH AND SERIOUSLY FAST. When the new Roubaix isn't silencing the cobbles and stealing the podium of races by the same name, it's busy turning your next 100 miles in to the "Big Easy."
  • The S-Works FACT 10r carbon frame features our FACT IS construction, Zertz inserts, and an oversize BB, which means it’s light, comfortable, and super-efficient.
  • The S-Works FACT carbon fork features an oversize race for an unwavering front end, the Zertz inserts are there to take the edge off.
  • The S-Works Mindset headset comes with ceramic cartridge bearings for the smoothest action imaginable.
  • The S-Works FACT carbon crankset takes our integrated, oversized design to its ultimate level. It’s high-performance stiffness, wrapped in good looks.
  • The S-Works SL FACT carbon seatpost is light, stiff, and tough. And thanks to its vibration-absorbing Zertz insert, it’s forgiving, too.

Technical Specifications

BOTTOM BRACKET S-Works oversize integrated
CRANKSET S-Works FACT carbon, integrated oversize design
SEATPOST S-Works SL, FACT carbon w/ Zertz insert, 27.2mm
HEADSET S-Works Campy style, 1-3/8"" lower bearing, integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, 20mm carbon cone w/ one 10mm and two 5mm carbon spacers
SEAT BINDER S-Works CNC alloy, 32.6mm
FORK S-Works FACT carbon, monocoque construction, OS race for 1-3/8"" bearing, full carbon legs, crown and steerer w/ Zertz inserts
FRAME S-Works FACT 10r carbon, FACT IS construction, compact race design, Zertz inserts, OS BB


Geometry Chart

Roubaix - Geometry

  49 54 56 58
Handle-Bar Width 0mm 0mm 0mm 0mm
Reach 537mm 548mm 565mm 582mm
Stack 445mm 495mm 515mm 565mm
Seat-Tube Length, B-B Center to Top 412mm 415mm 415mm 418mm
Ground-Top 73mm 71.5mm 71.5mm 70mm
Top-Tube Length, Horizontal 75.5mm 73.5mm 73.25mm 72.5mm
Front-Center 125mm 165mm 190mm 245mm
Head-Tube Angle 582° 595° 606° 621°
Fork Rake 989mm 1000mm 1010mm 1038mm
Trail 759mm 780mm 801mm 824mm
Chain-Stay Length 49mm 49mm 49mm 49mm
Seat-Tube Angle 59° 59° 56° 53°
B-B Drop 72mm 72mm 72.5mm 72.5mm
