S-Works Roubaix SL2 Dura-Ace Di2
Part No.

S-Works Roubaix SL2 Dura-Ace Di2

Part No.  23103
load-spinner
S-Works Roubaix SL2 Dura-Ace Di2
Overview
Technical Specifications
Geometry
Reviews
SERIOUSLY SMOOTH AND SERIOUSLY FAST. When the new Roubaix isn't silencing the cobbles and stealing the podium of races by the same name, it's busy turning your next 100 miles in to the "Big Easy."

Technical Specifications

FRAMESET
SEAT BINDER S-Works CNC alloy, 32.6mm
HEADSET S-Works Campy style, 1-3/8"" lower bearing, integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, 20mm carbon cone w/ one 10mm and two 5mm carbon spacers
FORK S-Works FACT carbon, monocoque construction, OS race for 1-3/8"" bearing, full carbon legs, crown and steerer w/ Zertz inserts

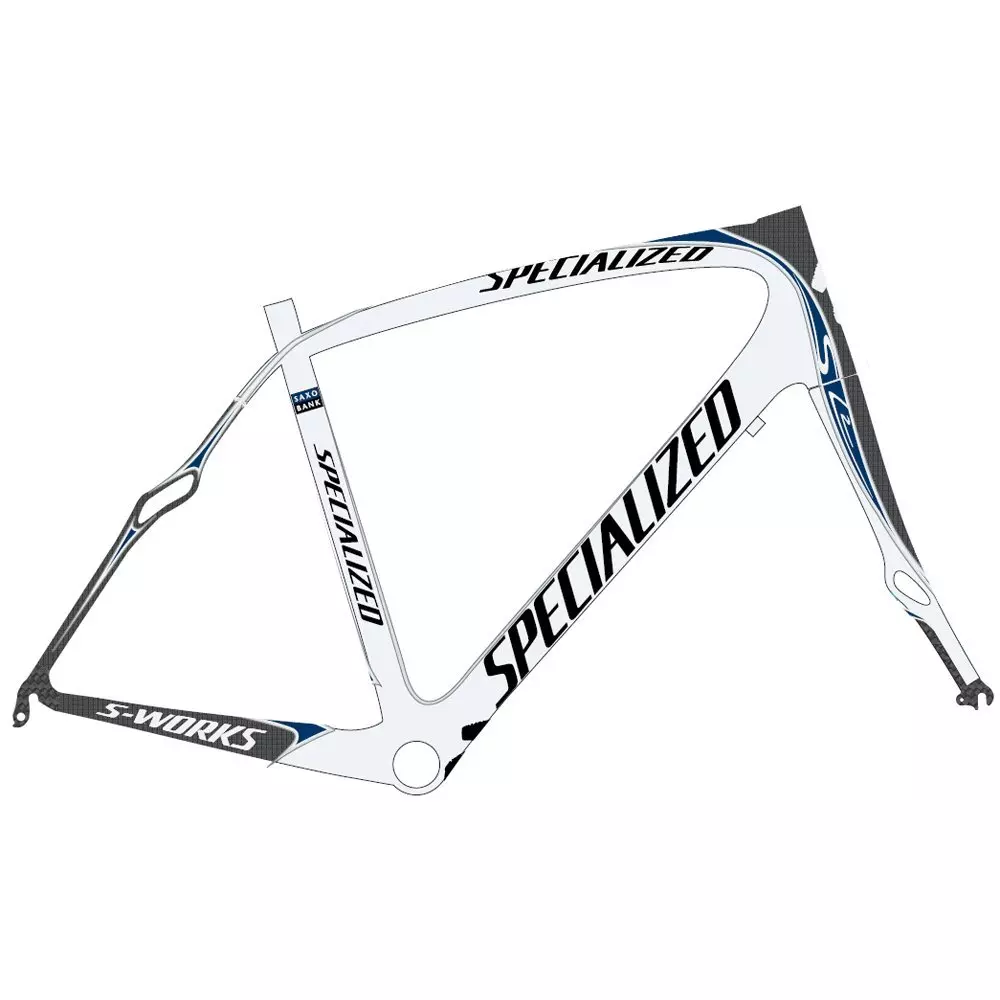

FRAME S-Works FACT 10r carbon, FACT IS construction, compact race design, Zertz inserts
WHEELS
FRONT HUB Mavic R-SYS Premium w/ Ti QR
REAR HUB Mavic R-SYS Premium w/ Ti QR
INNER TUBES Specialized Turbo presta tube
SPOKES Carbon and Zicral, tubular
RIMS Mavic R-SYS Premium
FRONT TIRE S-Works Roubaix, 700x23/25c, open tubular construction, dual-compound tread, aramid bead, 290TPI
REAR TIRE S-Works Roubaix, 700x23/25c, open tubular construction, dual-compound tread, aramid bead, 290TPI
DRIVETRAIN
BOTTOM BRACKET S-Works oversize integrated
CHAIN Shimano Dura-Ace, 10-speed
CRANKSET New Shimano Dura-Ace
CASSETTE Shimano Dura-Ace, 10-speed, 11-28t
SHIFT LEVERS New Shimano Dura-Ace, 10-speed STI, flight deck compatible
FRONT DERAILLEUR New Shimano Dura-Ace, braze-on clamp
CHAINRINGS 50 x 34t
REAR DERAILLEUR New Shimano Dura-Ace
COCKPIT
SADDLE Body Geometry Toupé Gel, carbon reinforced base, hollow Ti rails
TAPE Body Geometry Bar Phat, cork ribbon w/ neoprene padding
SEATPOST S-Works SL, FACT carbon w/ Zertz insert, 27.2mm
HANDLEBARS S-Works SL, FACT carbon handlebar, short-reach drop, 31.8mm
STEM S-Works Pro-Set, 3D forged, carbon/alloy face plate w/ Ti bolts, carbon top cap, 4-position adjustable
BRAKES
BRAKE LEVERS New Shimano Dura-Ace, 10-speed STI, flight deck compatible
FRONT BRAKE New Shimano Dura-Ace
REAR BRAKE New Shimano Dura Ace
ACCESSORIES
PEDALS Silver cage, black body, w/ toe clip and strap

Geometry

Geometry Chart

Roubaix - Geometry

  49 54 56 61
Handle-Bar Width 0mm 0mm 0mm 0mm
Reach 518mm 548mm 565mm 600mm
Stack 475mm 495mm 515mm 565mm
Seat-Tube Length, B-B Center to Top 412mm 415mm 415mm 420mm
Ground-Top 73mm 71.5mm 71.5mm 70mm
Top-Tube Length, Horizontal 74mm 73.5mm 73.25mm 72.5mm
Front-Center 125mm 165mm 190mm 245mm
Head-Tube Angle 588° 595° 606° 621°
Fork Rake 983mm 1000mm 1010mm 1038mm
Trail 737mm 780mm 801mm 849mm
Chain-Stay Length 49mm 49mm 49mm 49mm
Seat-Tube Angle 59° 59° 56° 53°
B-B Drop 72mm 72mm 72.5mm 73mm
