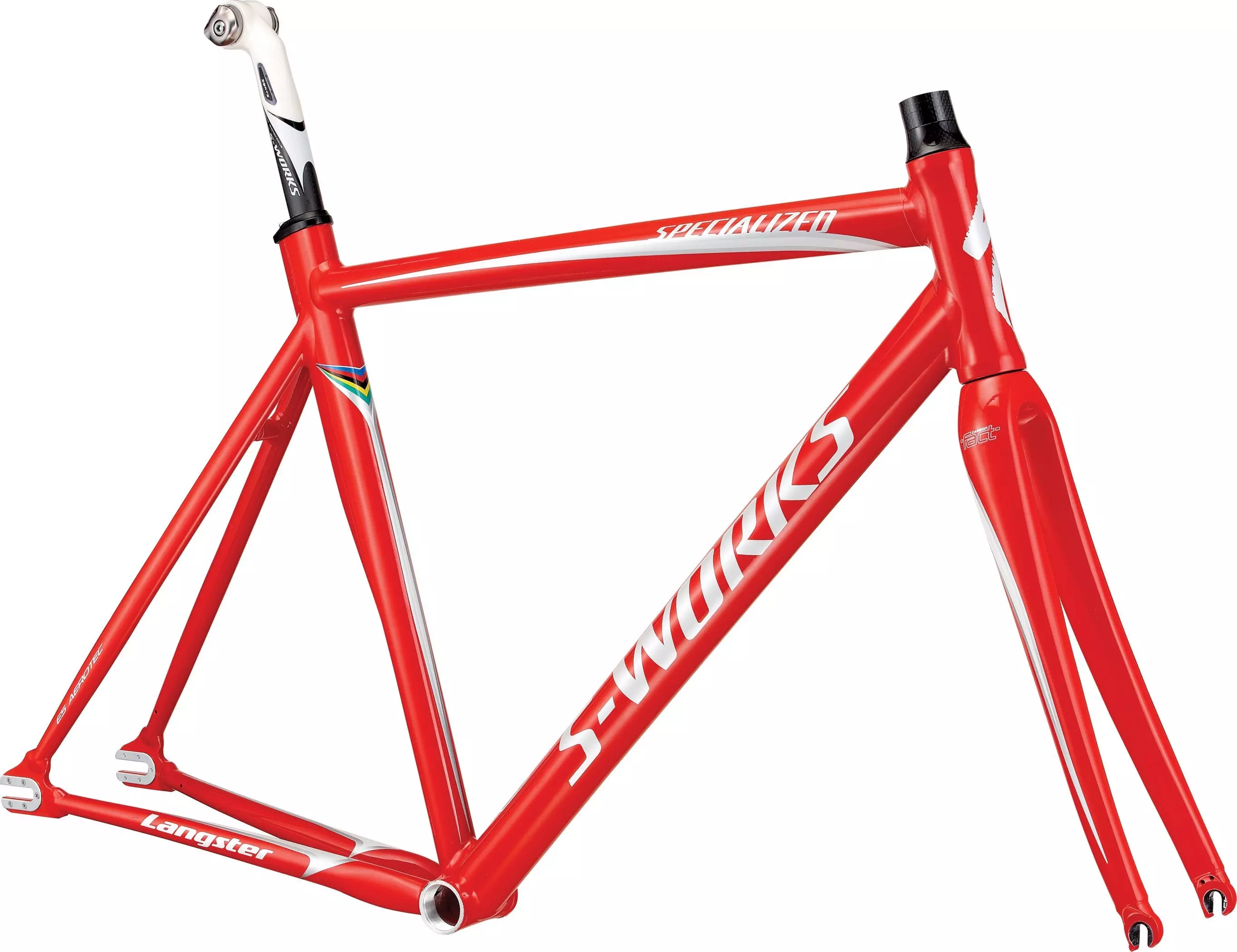

S-Works Langster Frameset
Technical Specifications
Designed for everyone from competitive track racers to hard core urban commuters, the singlespeed Langster™ is an icon for pure and ruthless efficiency and unforgiving speed. If one of our A1 Premium Aluminum models isn't enough to satisfy those in search of their perfect track missile, maybe our new steel Langster with classic track geometry will do the trick.
  • S-Works FACT carbon seatpost with Zertz insert
  • S-Works FACT full carbon monocoque fork provides maximum strength at minimal weight
  • Smooth-welded E5 aluminum frame with integrated headset stands out at the velodrome

Technical Specifications

SEATPOST S-Works FACT carbon w/ Zertz insert, 27.2mm
PEDALS Black cage, black body, w/ toe clips and straps
HEADSET Aheadset w/ top cap, 20mm of spacers
SEAT BINDER Forged alloy
FORK S-Works FACT carbon monocoque
FRAME S-Works Langster E5 aluminum, smooth welded, integrated headset


Geometry Chart

- Geometry

  49 52 54 56 58 61
Wheelbase 948mm 960mm 963mm 971mm 979mm 992mm
Seat-Tube Length, B-B Center to Top 420mm 480mm 500mm 520mm 540mm 570mm
Head-Tube Length 100mm 110mm 130mm 150mm 170mm 195mm
Top-Tube Length, Horizontal 510mm 530mm 540mm 555mm 570mm 588mm
Front-Center 566mm 579mm 580mm 588mm 596mm 608mm
Head-Tube Angle 73° 73° 73.5° 74° 74.5° 74.5°
Stand-Over Height 711mm 739mm 760mm 779mm 800mm 826mm
Fork Rake 43mm 43mm 43mm 43mm 43mm 43mm
Trail 59mm 59mm 56mm 53mm 50mm 50mm
Chain-Stay Length 390mm 390mm 390mm 390mm 390mm 390mm
Seat-Tube Angle 76° 75° 74.5° 74.25° 74° 73.5°
B-B Drop 61mm 61mm 59mm 59mm 57mm 57mm
Seat-Post Length 300mm 350mm 350mm 350mm 350mm 350mm
