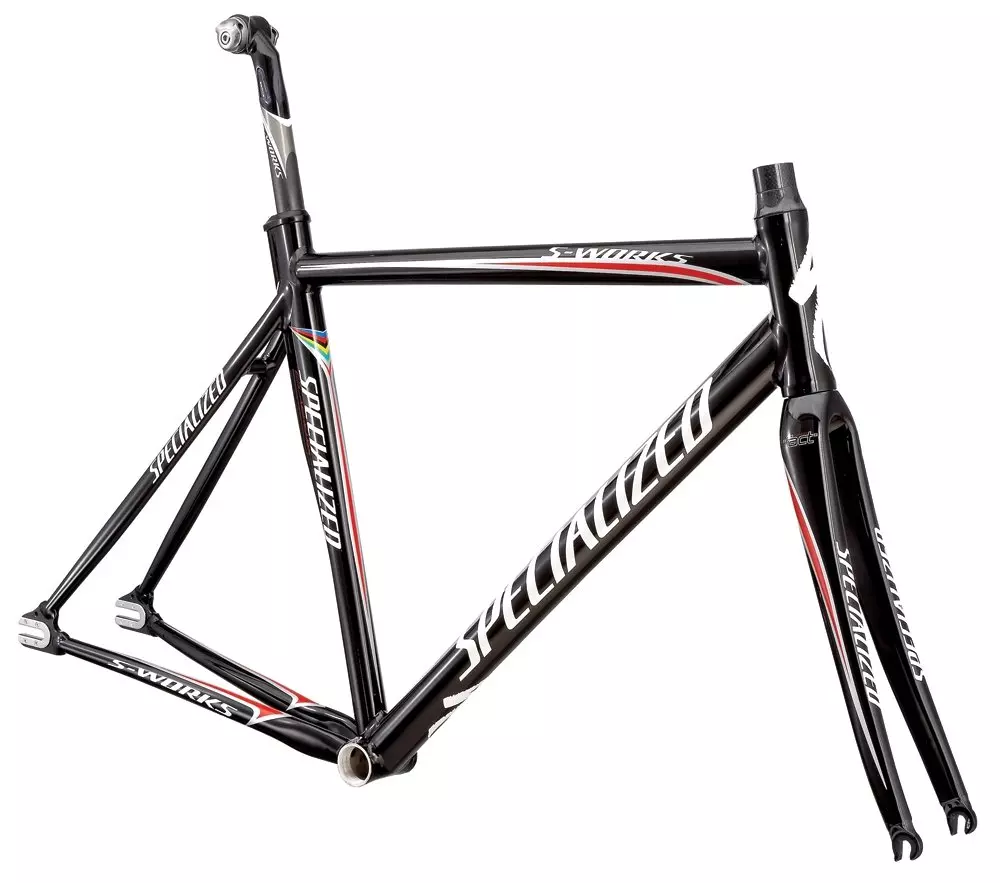

S-Works Langster Frameset
Part No.

S-Works Langster Frameset

Part No.  22513
S-Works Langster Frameset
Technical Specifications
BUILT FOR RALLYING CITY STREETS and lapping racers at the velodrome, the light and lean Langster is as gutsy a ride as it gets—pure and simple, yet fast as hell. Sometimes one speed is all you need.
  • The S-Works Langster’s E5 aluminum frameset is fully manipulated for strong weld areas, light weight, and absolute power transfer. The steel dropout protectors add an extra measure of strength for your most critical attachment.
  • The S-Works full carbon monocoque fork gives maximum strength and minimum weight.
  • The integrated headset comes with one 20mm, one 10mm and two 5mm carbon spacers for the ultimate in fine-tuning options.
  • The S-Works carbon fiber seatpost helps absorb vibrations to keep you feeling fresher, longer.

Technical Specifications

SEAT BINDER S-Works Forged alloy
HEADSET Specialized Mindset Plus, 1-1/8"" integrated threadless, sealed cartridge bearings, 20mm carbon cone w/ one 10mm and two 5mm carbon spacers
FORK S-Works FACT carbon, monocoque construction, full carbon legs, crown and steerer
FRAME S-Works E5 Aerotec Aluminum, fully manipulated tubing, smooth weld compact track racing design, integrated headset, steel dropout protectors
SEATPOST S-Works SL, FACT carbon w/ Zertz insert, 27.2mm


Geometry Chart

Langster - Geometry

  49 52 54 56 58 61
Stem Length 80mm 90mm 100mm 100mm 110mm 120mm
Crank Length 165mm 165mm 167.5mm 167.5mm 170mm 172.5mm
Handle-Bar Width 300mm 350mm 350mm 350mm 350mm 350mm
Wheelbase 948mm 960mm 963mm 971mm 979mm 992mm
Seat-Tube Length, B-B Center to Top 420mm 480mm 500mm 520mm 540mm 570mm
Head-Tube Length 100mm 110mm 130mm 150mm 170mm 195mm
Top-Tube Length, Horizontal 510mm 530mm 540mm 555mm 570mm 588mm
Front-Center 566mm 579mm 580mm 588mm 596mm 608mm
Head-Tube Angle 73° 73° 73.5° 74° 74.5° 74.5°
Fork Rake 43mm 43mm 43mm 43mm 43mm 43mm
Trail 59mm 59mm 56mm 53mm 50mm 50mm
Stand-Over Height 711mm 739mm 760mm 779mm 800mm 826mm
Chain-Stay Length 390mm 390mm 390mm 390mm 390mm 390mm
Seat-Tube Angle 76° 75° 74.5° 74.25° 74° 73.5°
B-B Drop 61mm 61mm 59mm 59mm 57mm 57mm
Seat-Post Length 300mm 350mm 350mm 350mm 350mm 350mm
