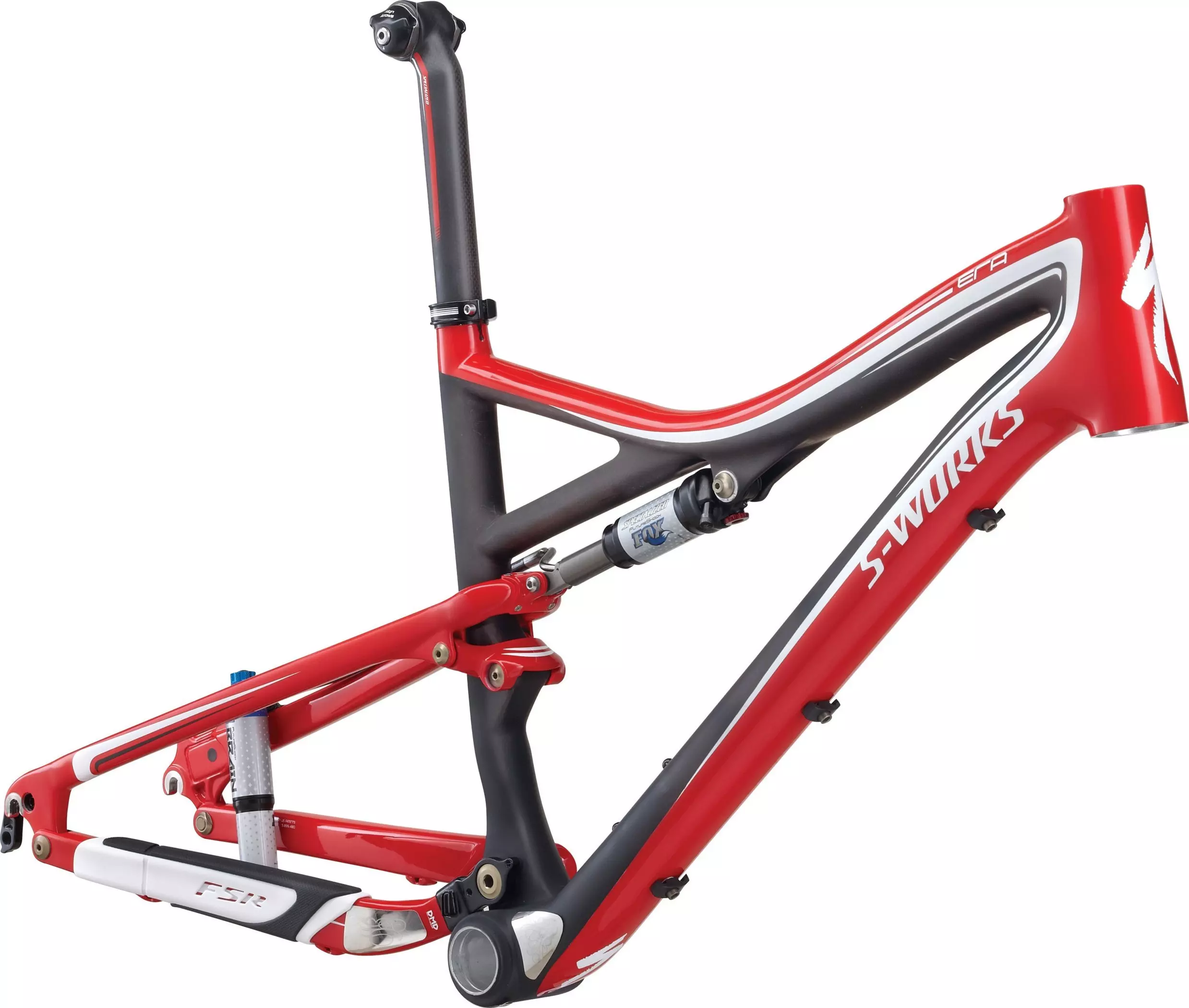

S-Works Era Carbon Frameset
Part No.

S-Works Era Carbon Frameset

Part No.
Please select an option
S-Works Era Carbon Frameset
Overview
Technical Specifications
Geometry
Reviews
Back To Top
Take the most efficient, fastest, and lightest full suspension XC bike designed from the ground up for female riders and racers, and custom-tailor it with the specs of your choice.
  • FACT 10m carbon frame uses women's-specific FACT IS construction and geometry, an oversized BB, and tapered head tube to create a lighting fast, uber-lightweight frame for race-ready XC performance
  • Specialized E100 Future Shock fork is tuned for women with 100mm of Brain-regulated travel and rebound adjust, supported by a carbon 1-1/8 to 1.5" crown/steerer assembly for greater steering precision
  • Specialized and Fox blend their brains to develop the FlowControl Mini Brain shock, tuned specifically for women, with Brain Fade inertia valve, air spring, and adjustable rebound for World Cup - and local trail - domination

Technical Specifications

Technical Specifications

SUSPENSION
FORK Specialized Future Shock E100, inertia valve damper custom tuned for women, 1 1/2-1 1/8"" carbon steer/crown, Brain Fade, external rebound adj., single sided air spring and damper, 100mm travel
REAR SHOCK Fox/Specialized remote Mini-Brain, inertia valve, w/ Brain Fade adjust, 185x43mm
COCKPIT
SEATPOST S-Works Carbon, single-bolt head, 30.9mm, 350mm
FRAMESET
HEADSET 1-1/8 and 1.5"" Threadless, Campy style upper with 1.5"" lower, cartridge bearings
SEAT BINDER 36.9mm clamp, one bolt for carbon frame/post
FRAME FACT 10m carbon front triangle, women's FACT IS construction and geometry, tapered HT, OSBB, FACT carbon seatstays w/carbon drive DO and chainstays, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm travel
* Specifications are subject to change without notice

Geometry

Geometry Chart

Era - Geometry

S M L XL
  S M L XL
Crank Length 170mm 175mm 175mm 175mm
Stem Length 75mm 90mm 105mm 105mm
Seatpost Length 400mm 400mm 400mm 400mm
Handlebar Width 660mm 660mm 660mm 660mm
Reach 393mm 425mm 446mm 464mm
Stack 561mm 571mm 589mm 618mm
Chainstay Length 425mm 425mm 425mm 425mm
Top Tube Length (Actual) 527mm 560mm 586mm 615mm
Ground-Top 892mm 902mm 920mm 949mm
Top Tube Length (Horizontal) 554mm 589mm 615mm 641mm
Head Tube Angle - Low Setting 70° 70° 70° 70°
Standover Height 755mm 765mm 774mm 790mm
Head Tube Height 125mm 135mm 155mm 185mm
Wheel Base 1060mm 1096mm 1124mm 1152mm
Seat Tube Angle (Actual) - Low Setting 71.5° 71.5° 71.5° 71.5°
Seat Tube Angle (Effective) - Low Setting 74° 74° 74° 74°
Seat Tube Length - Center to Top 394mm 424mm 463mm 520mm
Bottom Bracket Height - Low Setting 331mm 331mm 331mm 331mm
