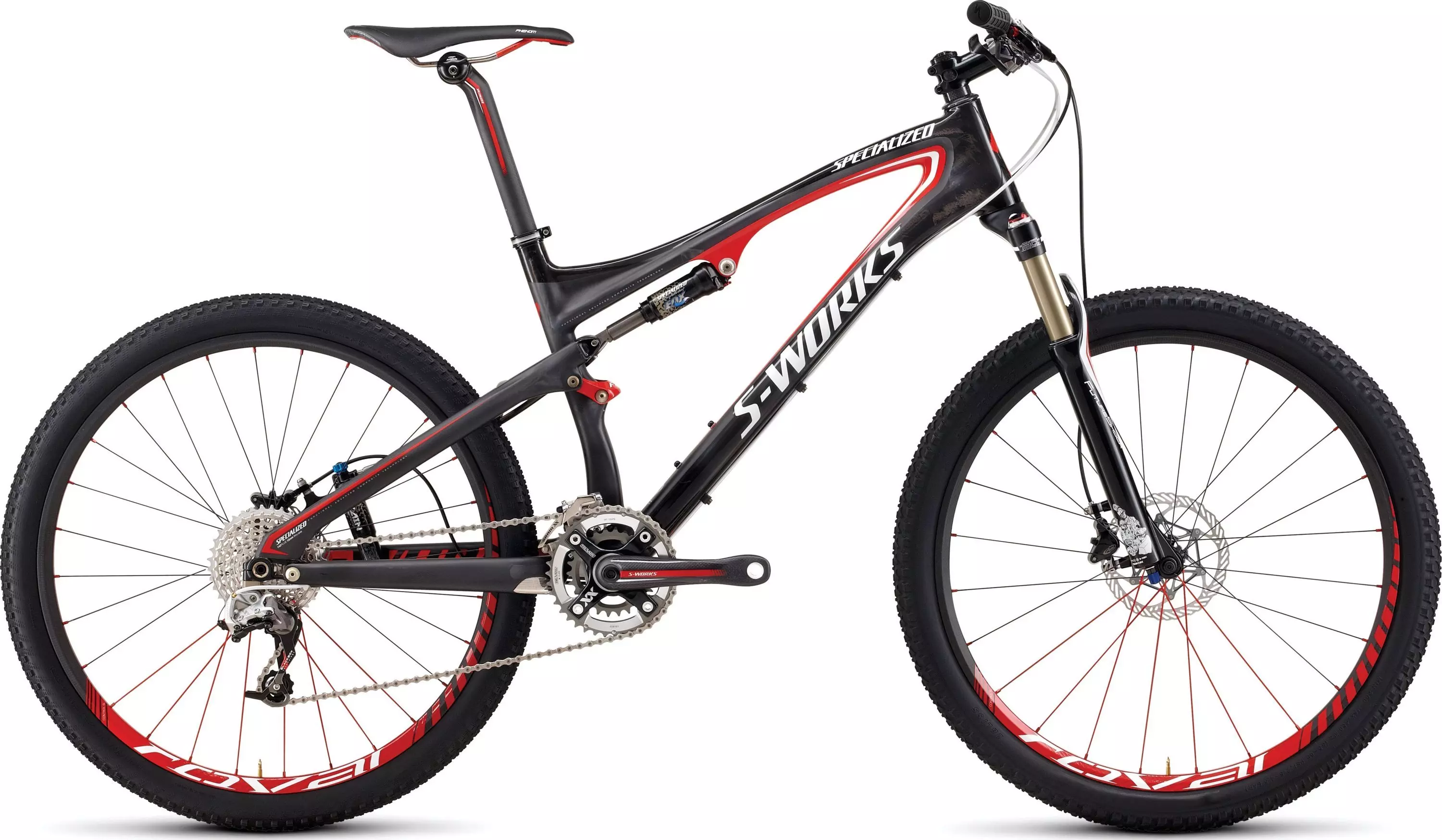

S-Works Epic
Overview
Technical Specifications
Geometry
Reviews
No-holds-barred design, engineering, materials, construction, and specifications combine to make the Epic the only dual-suspension bike to win the World Championships.
  • Specialized FACT OSBB carbon crankset with ceramic bearings is paired with a SRAM XX spider and 39/26t rings to create market-leading stiffness-to-weight for the ultimate power transfer
  • Specialized and Fox blend their brains to develop the FlowControl Mini Brain shock with Brain Fade inertia valve, air spring, and adjustable rebound for World Cup - and local trail - domination
  • Specialized E100 Future Shock fork with 100mm of Brain-regulated travel and rebound adjust is supported by a stiff carbon 1-1/8 to 1.5" crown/steerer assembly for greater steering precision
  • These two world-class and featherlight 2Bliss Ready XC tires work together for maximum speed and control in hardpack or intermediate conditions: S-Works Fast Trak LK 2.0" front, S-Works Renegade 1.9" rear
  • Custom Avid XX World Cup R magnesium body brakes feature tool-less reach adjust, alloy-backed pads, and carbon levers with titanium hardware for ultra light and modulated braking power
  • Newly revamped Roval Control SL alloy XC wheelset with OS28 end caps, 142+ spacing, Ti QR, and DT Swiss spokes and internals is insanely stiff, light and durable for greater control and quickness

Technical Specifications

FRAMESET
SEAT BINDER 36.9mm clamp, one bolt for carbon frame/post
HEADSET 1-1/8 and 1.5
FRAME FACT 11m carbon front triangle, FACT IS construction, gussetless TT S/M, FACT carbon seatstays w/carbon non-drive DO and chainstays, tapered HT, carbon PF-30 BB, 142mm drop-outs, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm
WHEELS
FRONT HUB Roval Control SL, carbon/alloy, 24h, OS 28mm end caps, QR
REAR HUB Roval Control SL 142+, DT Star Ratchet, 28h
INNER TUBES Ultralight presta valve
SPOKES DT Swiss Revolution 2.0/1.5/2.0mm stainless, DT Aerolite, bladed, painted
RIMS Roval Control SL, disc, 24mm, 24h
FRONT TIRE S-Works Fast Trak LK, 120 TPI, 2Bliss ready aramid bead, dual compound, 26x2.0
REAR TIRE S-Works Renegade, 120 TPI, 2Bliss ready aramid bead, dual compound, 26x1.9
DRIVETRAIN
CHAIN SRAM PC-1090, 10-speed
CRANKSET S-Works OS carbon crank, 10-speed XC double, custom XX spider/rings, S: 170mm, others: 175mm
CASSETTE SRAM XX, 10-speed, 11-36t
SHIFT LEVERS SRAM XX, 10-speed, carbon trigger, Match Maker clamp
FRONT DERAILLEUR SRAM XX, S3 direct mount for DMD, top swing, bottom pull
CHAINRINGS 39A x 26A, 4-bolt
REAR DERAILLEUR SRAM XX, 10-speed, mid cage
COCKPIT
SADDLE Specialized BG Phenom Expert, Ti rails, 143mm width
SEATPOST S-Works Carbon, single-bolt head, 30.9mm, 400mm
GRIPS Specialized lock-on, S/M: Grappler, Other: Rocca
HANDLEBARS S-Works XC Carbon low-rise bar, uni-directional carbon, 660mm wide, 8 degree back sweep, 6 degree up, 31.8mm
STEM Syntace F109, 6 degree rise, 31.8mm clamp
BRAKES
BRAKE LEVERS Custom Avid XX World Cup R hydraulic, tool-less reach adjust, magnesium body, carbon lever
FRONT BRAKE Custom Avid XX World Cup R, tool-less reach adj., alloy backed semi-metallic pads, magnesium caliper and lever body w/ carbon blade, ti hardware, S/M: 160mm, L/XL: 185mm rotor
REAR BRAKE Custom Avid XX World Cup R, tool-less reach adj., alloy backed semi-metallic pads, magnesium caliper and lever body w/ carbon blade, ti hardware, S/M: 140mm, L/XL: 160mm rotor
ACCESSORIES
PEDALS Resin Test Ride Pedals with toe clips, CEN std.
SUSPENSION
FORK Specialized Future Shock E100, inertia valve, 1 1/2-1 1/8
REAR SHOCK Fox/Specialized remote Mini-Brain, inertia valve, w/ Brain Fade adjust, 187x47mm

Geometry

Geometry Chart

Epic - Geometry

S M L XL
  S M L XL
Stem Length 75mm 90mm 105mm 105mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 400mm 400mm 400mm 400mm
Handlebar Width 660mm 660mm 660mm 660mm
Reach 393mm 425mm 446mm 464mm
Stack 561mm 571mm 589mm 618mm
Chainstay Length 425mm 425mm 425mm 425mm
Top Tube Length (Actual) 527mm 560mm 586mm 615mm
Ground-Top 892mm 902mm 920mm 949mm
Top Tube Length (Horizontal) 554mm 589mm 615mm 641mm
Head Tube Angle - Low Setting 70° 70° 70° 70°
Standover Height 755mm 765mm 774mm 790mm
Wheel Base 1060mm 1096mm 1124mm 1152mm
Head Tube Height 125mm 135mm 155mm 185mm
Seat Tube Angle (Actual) - Low Setting 71.5° 71.5° 71.5° 71.5°
Seat Tube Length - Center to Top 394mm 424mm 463mm 520mm
Seat Tube Angle (Effective) - Low Setting 74° 74° 74° 74°
Bottom Bracket Height - Low Setting 331mm 331mm 331mm 331mm
