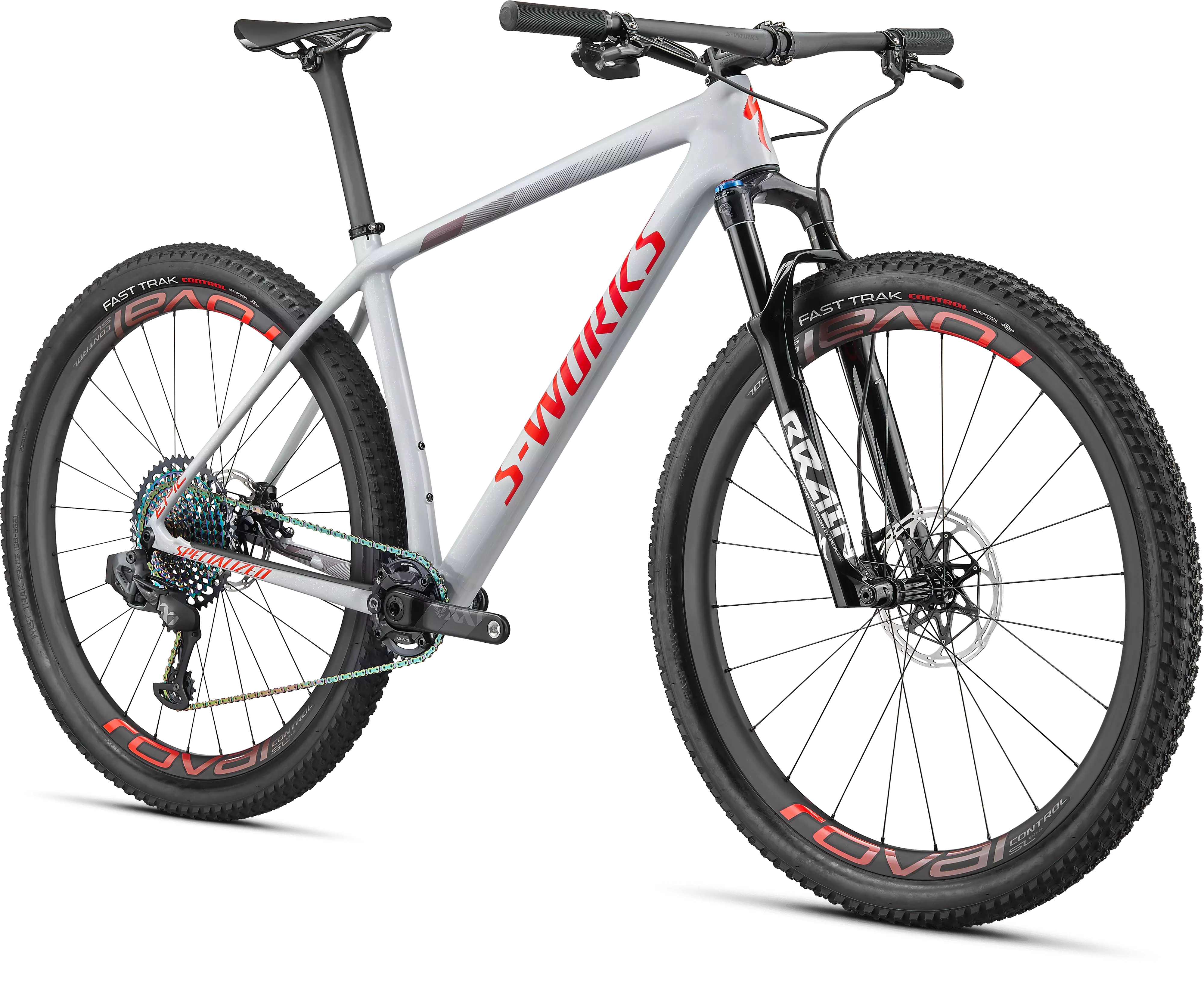

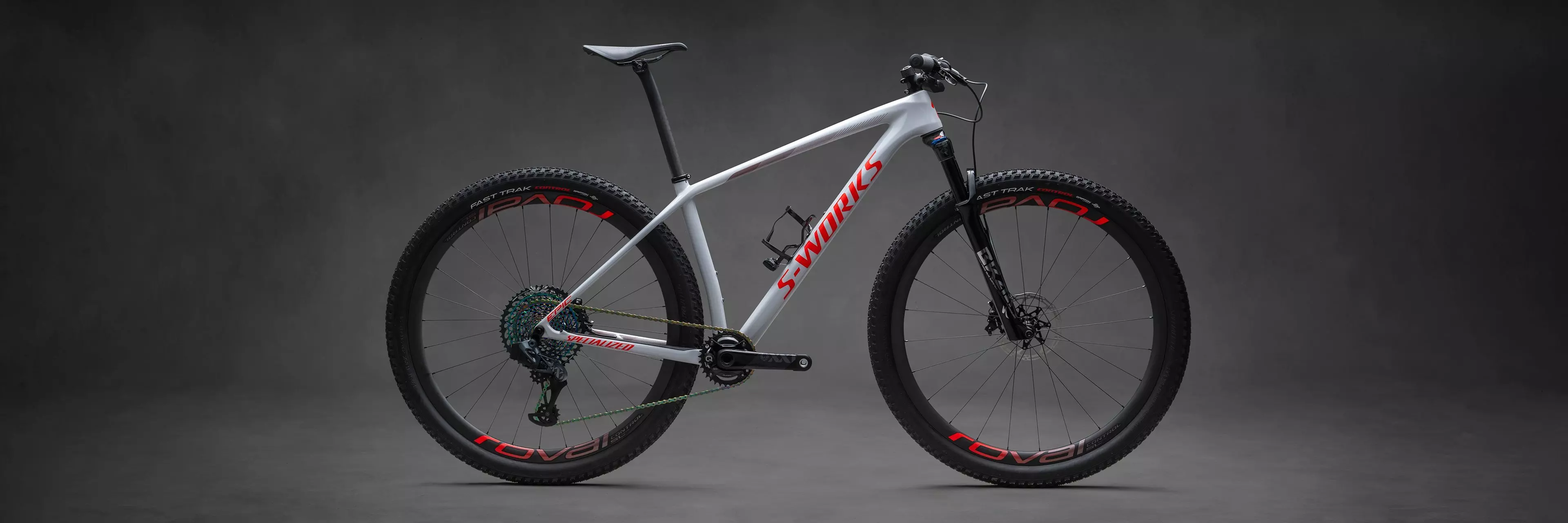

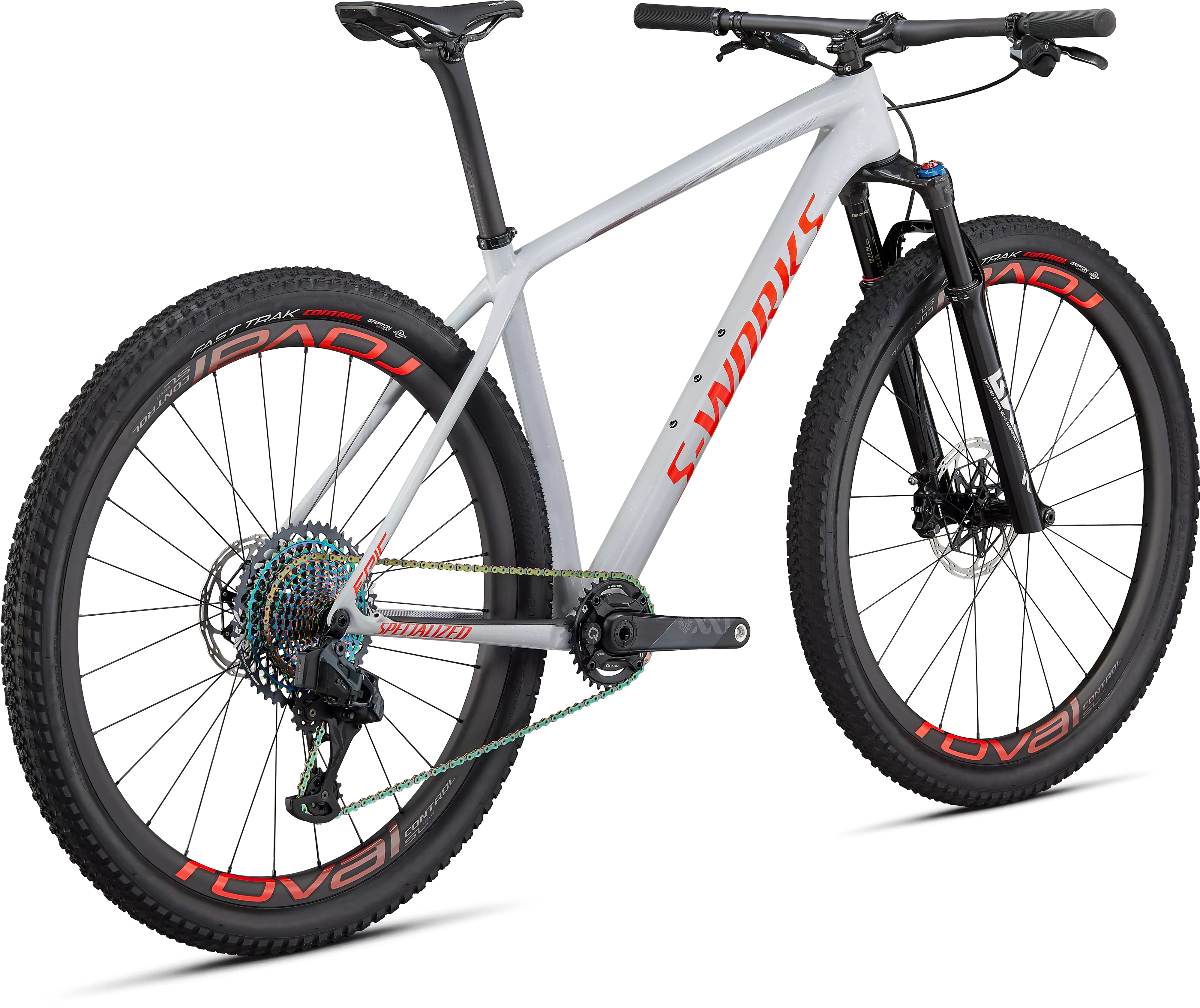

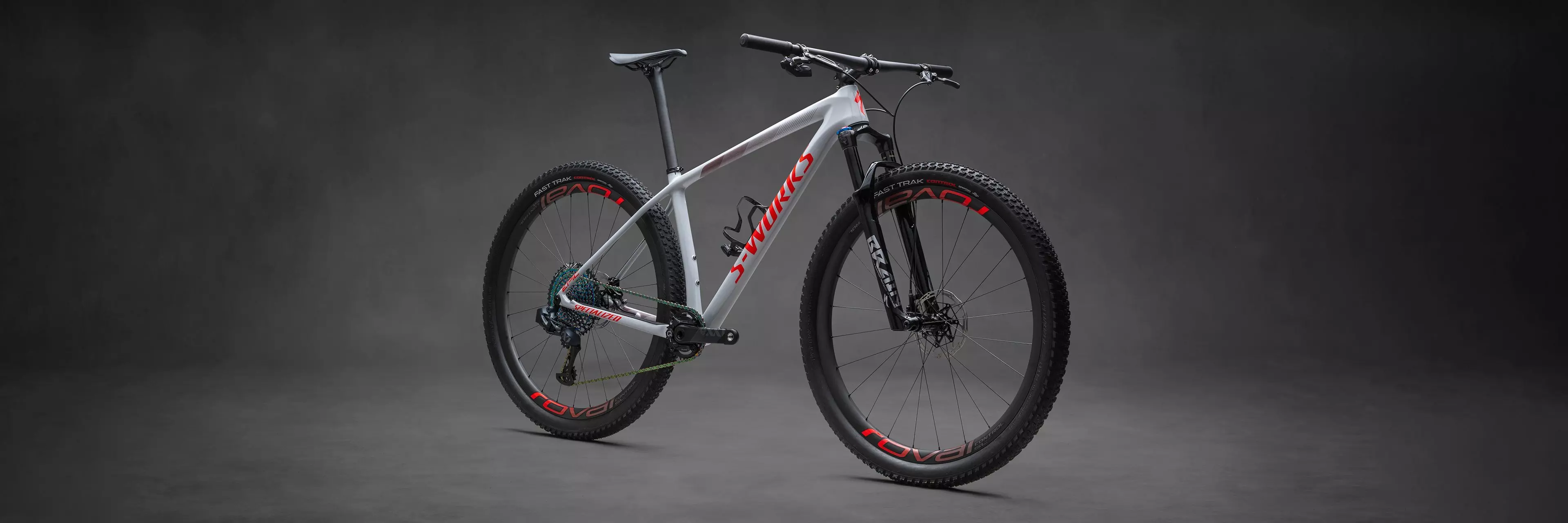

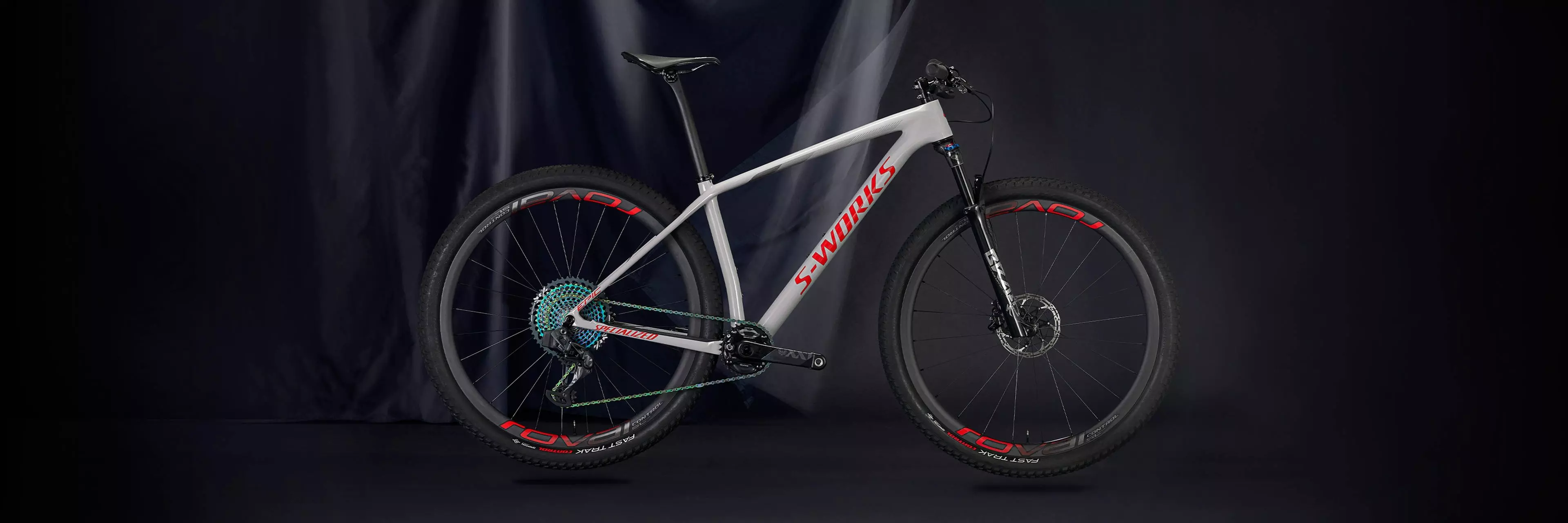

S-Works Epic Hardtail AXS
Overview
Technical Specifications
Geometry
Rider Reviews
Back To Top

Technical Specifications

FRAMESET
SWAT SWAT EMT Cage-Mount Tool
* Specifications are subject to change without notice
Manual Downloads
Trainer Usage Addendum to the Bicycle Owner's Manual
Specialized Bicycle Owner's Manual (All Languages)
Carbon Mountain Handlebars
Specialized Bicycle Owner's Manual Addendum: Riding With Kids
Tire Pressure and Handlebar Grips Addendum
Roval Road and Mountain Wheelsets
Dodatek - POUŽITÍ TRENAŽÉRU
Mission Control App 2.0 User Guide (English)
Epic HT User Manual
Mission Control App 2.0 User Guide (Chinese)
Youtube

Epic Hardtail - Geometry

Geometry

S M L XL
  S M L XL
Crank Length 170mm 175mm 175mm 175mm
Stem Length 60mm 75mm 75mm 75mm
Seatpost Length 350mm 400mm 400mm 400mm
Saddle Width 155mm 143mm 143mm 143mm
Handlebar Width 760mm 760mm 760mm 760mm
Reach 405mm 430mm 455mm 480mm
Top Tube Length, Horizontal 579mm 604mm 633mm 662mm
Stack 608mm 608mm 622mm 636mm
Wheelbase 1091mm 1116mm 1147mm 1177mm
Chainstay Length 430mm 430mm 430mm 430mm
Front Center 669mm 694mm 724mm 754mm
BB Drop 63mm 63mm 63mm 63mm
BB Height 309mm 309mm 309mm 309mm
Seat Tube Angle 74° 74° 74° 74°
Head Tube Angle 68.5° 68.5° 68.5° 68.5°
Seat Tube Length 400mm 430mm 470mm 520mm
Head Tube Length 95mm 95mm 110mm 125mm
Bike Standover Height 762mm 792mm 816mm 847mm
Fork Rake/Offset 42mm 42mm 42mm 42mm
Fork Length, Full 506mm 506mm 506mm 506mm
Trail 100mm 100mm 100mm 100mm
Geometry Chart
