S-Works Epic FSR Di2
$10,500.00
Part No.

S-Works Epic FSR Di2

$10,500.00
Part No.  115286
load-spinner
S-Works Epic FSR Di2
Overview
Technical Specifications
Geometry
Reviews

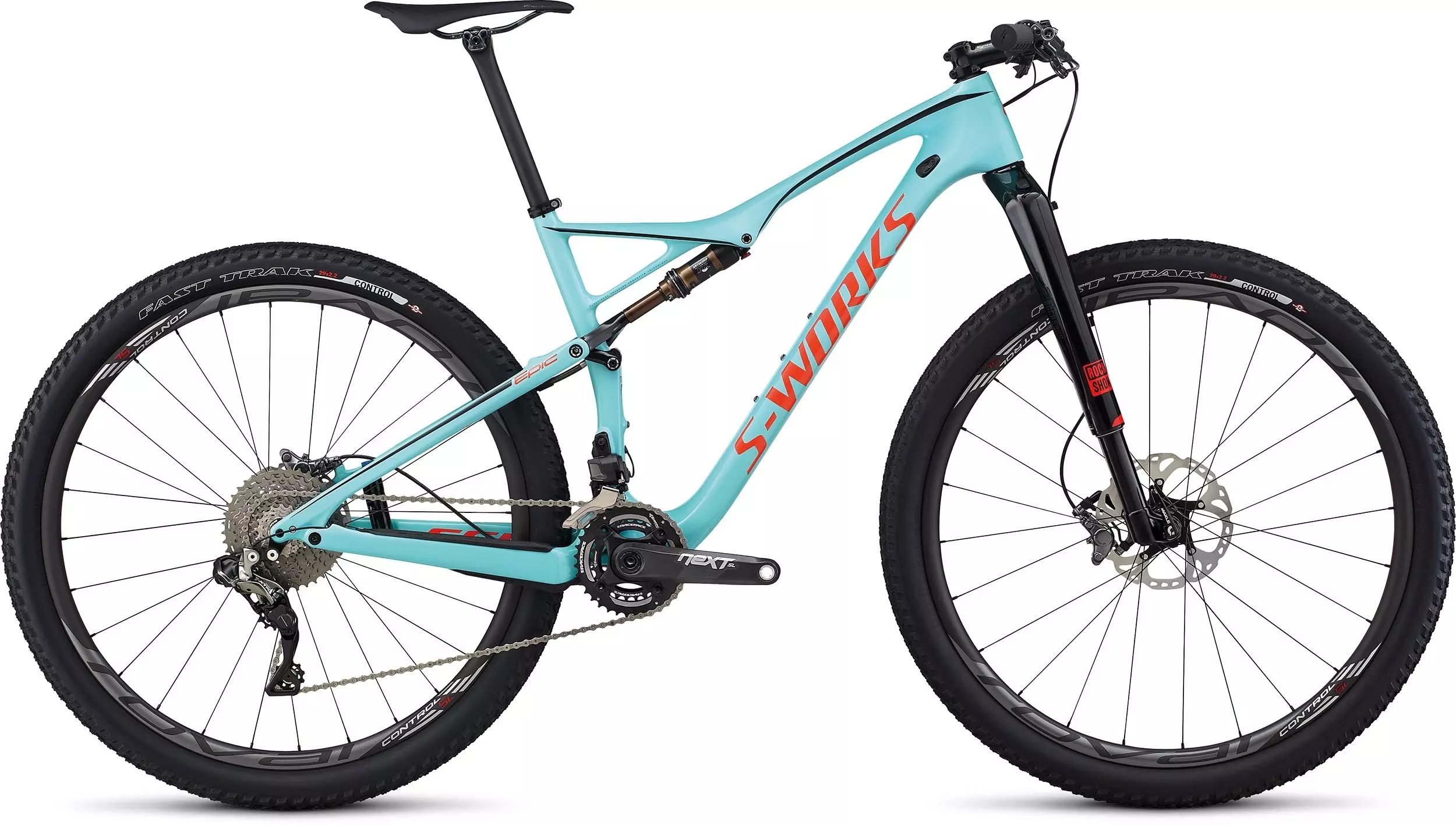

The S-Works Epic FSR w/ Shimano XTR Di2 was designed to get you over the line in first position, and it holds nothing back in achieving this goal. For maximum efficiency, it's built from our finest carbon fiber (FACT 11m) to provide a lightweight, stiff ride quality on the flats and climbs. Efficiency is taken another step further with our proprietary Brain technology at the fork and rear shock. This intelligent system is able to interpret the difference between rider and trail input, so it stays firm under effort and compliant over bumps. Then there's our XC 29 Geometry that's built for sheer speed over long courses which, after four ABSA Cape Epic wins and multiple World Championships, has truly earned its salt. And to round out the package is a component spec that's nothing short of future-proof, with Shimano XTR Di2 and the incomparable RockShox RS-1 fork. If speed is on the top of your list, it doesn't get better than this.
  • S-Works FACT 11m carbon fiber frame provides the ideal blend of stiffness, strength, and light weight, resulting in the pinnacle of efficiency and speed. Meanwhile, our XC 29 Geometry, 100mm of travel, internal cable routing, and a SWAT™ Tool Cradle create exceptional handling and zero-hassle maintenance.
  • RockShox RS-1 Brain fork is arguably the most sought-after fork in XC racing. Compared to a traditional fork, its inverted design creates a carbon fiber upper that provides superior stiffness, while behaving with more sensitivity to small bumps and more control over larger hits. And with Brain technology, these characteristics are amplified and even more efficient. It also includes our Spike Valve technology that minimizes yaw in cornering, while providing maximum travel in high velocity impacts.
  • Drivetrain duties are handled by the revolutionary Shimano XTR Di2 11-speed groupset, with 36/26T gearing up front and 11-40t at the rear. The first ever electronic mountain groupset, it provides unparalleled shift precision, reliability, and accuracy, making it the secret weapon in any racer's arsenal.

Technical Specifications

DRIVETRAIN
CHAIN Shimano HG901, 11-speed
CRANKSET RaceFace Next SL, hollow carbon, 11-speed, 30mm spindle, 49mm chainline, 36/26T
FRONT DERAILLEUR Shimano XTR M9070 Di2, down-swing, 2x11
SHIFT LEVERS Shimano XTR M9050 Di2, electric 11-speed
CASSETTE Shimano XTR M9001, 11-speed, 11-40t
REAR DERAILLEUR Shimnao XTR M9050 Di2, Shadow Plus design, 11-speed
SUSPENSION
FORK RockShox RS-1 Brain, Solo Air spring, Spike Valve, top-mount Brain Fade adjust, rebound adjust, inverted design, tapered carbon crown/steerer, 15mm Maxle Stealth thru-axle, 51mm offset, 100mm of travel
REAR SHOCK Fox/SBC Epic remote Mini Brain w/Auto Sag and Spike Valve. Brain Fade adjust I-Valve, 205 x 53mm, with Kashima Coating
COCKPIT
SADDLE Body Geometry S-Works Phenom, carbon rails, 143mm
SEATPOST S-Works FACT carbon, 0mm setback, carbon rail clamps
STEM Syntace F109, 6-degree rise, 31.8mm clamp
HANDLEBARS Specialized Mini-rise, FACT carbon, 6-degree upsweep, 8-degree backsweep, 10mm rise, 720mm, 31.8mm
GRIPS Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
WHEELS
FRONT HUB Roval Control SL, Torque Tube
SPOKES DT Swiss Revolution
RIMS Roval Control SL 29, hookless carbon, 22mm inner width, 24/28h, tubeless ready
FRONT TIRE Fast Trak, Control casing, 29x2.2"", 60TPI, Aramid folding bead, 2Bliss Ready
REAR TIRE Fast Trak, Control casing, 29x2.2"", 60TPI, Aramid folding bead, 2Bliss Ready
BRAKES
FRONT BRAKE Shimano XTR M9000, hydraulic disc, post mount, metallic pads, 180/160mm rotors
REAR BRAKE Shimano XTR M9000, hydraulic disc, post mount, metallic pads, 160mm rotors
FRAMESET
SEAT BINDER Specialized Alloy 31.8mm w/ Ti bolt
FRAME S-Works FACT 11m, full carbon frame w/unique S-Works lay-up, XC Geometry, PF30 BB, carbon headset cups, 12x142mm rear spacing, internal cable routing, front derailleur mount, 100mm of travel, SWAT™ tool cradle

Geometry

Geometry Chart

Epic - Geometry

S M L XL
  S M L XL
Crank Length 170mm 175mm 175mm 175mm
Stem Length 75mm 90mm 100mm 110mm
Saddle Width 143mm 143mm 143mm 143mm
Handlebar Width 720mm 720mm 720mm 720mm
Seat Post Length 350mm 400mm 400mm 400mm
Reach 393mm 418mm 441mm 462mm
Stack 587mm 601mm 615mm 634mm
Wheelbase 1082mm 1112mm 1140mm 1168mm
Bike Stand-Over Height 770mm 774mm 780mm 793mm
Head-Tube Length 90mm 105mm 120mm 140mm
Front-Center 634mm 664mm 692mm 720mm
Fork Rake/Offset 46mm 46mm 46mm 46mm
Head-Tube Angle 70.5° 70.5° 70.5° 70.5°
Trail 84mm 84mm 84mm 84mm
B-B Height 332mm 332mm 332mm 332mm
Chain-Stay Length 448mm 448mm 448mm 448mm
Fork Length (full) 506mm 506mm 506mm 506mm
Seat-Tube Angle 74° 74° 74° 74°
B-B Drop 40mm 40mm 40mm 40mm
Seat-Tube Length 400mm 434mm 470mm 520mm
Top-Tube Length (horizontal) 564mm 593mm 620mm 647mm
