Don’t worry, we get it...your training buddies all think you’re a bit ‘particular’. You may or may not have stockpiled your favorite grips just in case they ever get replaced by a new model. Perhaps your trailside toolbox would make a quality control engineer blush. Whatever the case, you won’t find any judgement here.
Instead, the endlessly engineered S-Works Epic frameset is here for you to let your discerning tastes run wild. We sweated every last detail when designing the S-Works frame, from an endlessly refined layup schedule that re-examined every last ply of FACT 12m carbon to optimize weight savings and ride dynamics to the weight-shedding carbon shock link, all so that you focus on the rest, knowing that you’re starting with the most capable canvas in the world.
A Smarter BRAIN
True to form, the latest Epic continues the tradition, taking advantage of the most efficient Brain suspension we’ve ever created to ensure it’s always on a first-name-basis with fast.
Re-engineered hand-in-hand with the new Epic, the latest BRAIN design resets the expectation for efficiency, employing a new race-tuned pedaling platform to ensure every watt possible is translated into forward motion, while handily soaking up momentum-killing chatter and big hits alike—all more smoothly than ever.
Frame-Changer.
Perfectly matched to the frame's BRAIN system, the S-Works Epic frameset's Position-Sensitive BRAIN fork benefits from RockShox's latest SID Ulitmate SL chassis for next-level steering stiffness that still manages to keep the gram count to a minimum.

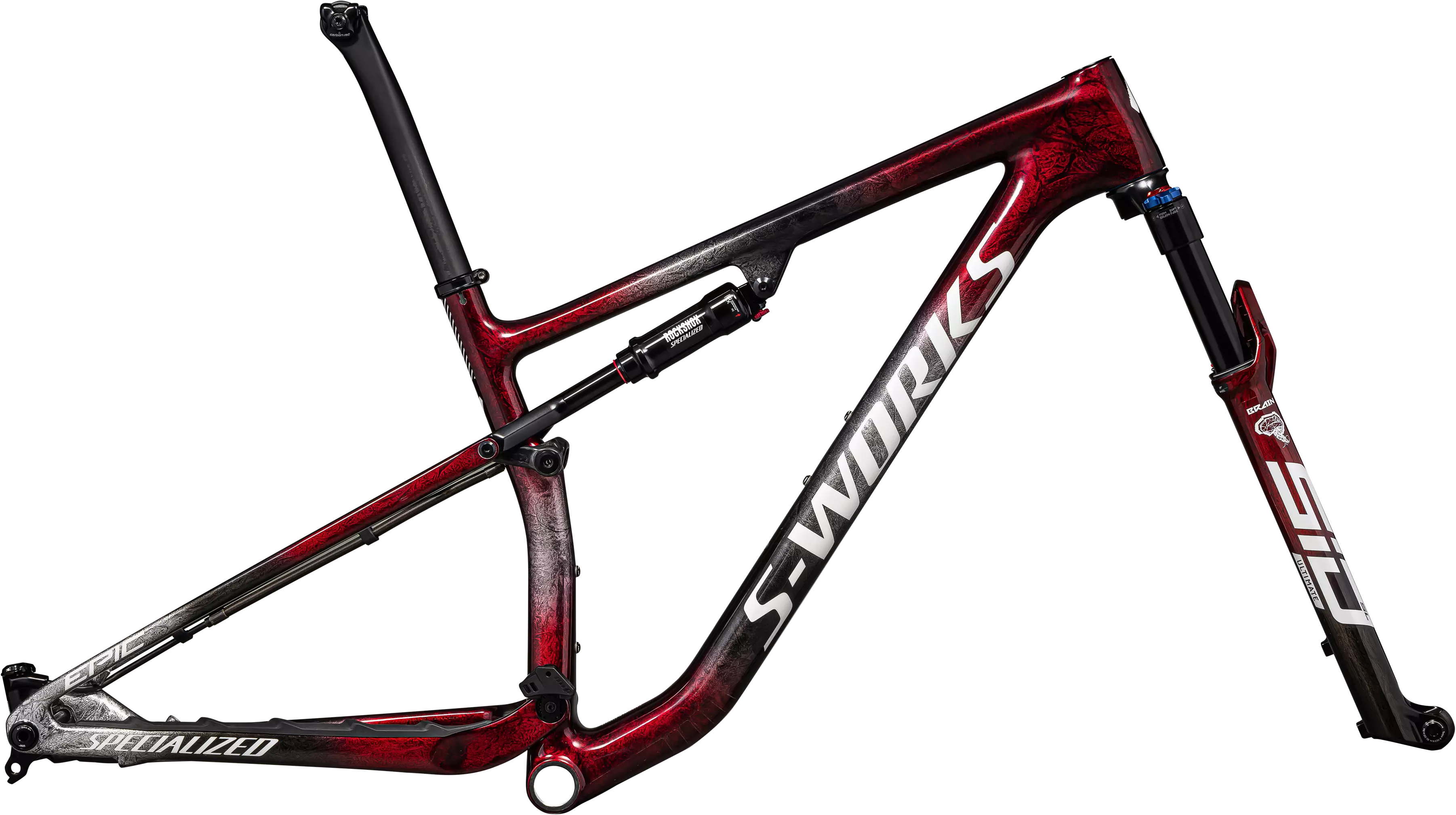

Frame
S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
SWAT
SWAT EMT Cage-Mount Tool
Seat Binder
Specialized Alloy 34.9, Titanium Bolt
Rear Shock
RockShox-Specialized BRAIN, Rx XC Tune, 5 Position Platform Adjust, Rebound Adjust, Integraded Extension, 265x52.5mm
Fork
RockShox SID SL ULTIMATE BRAIN, Top-Adjust Brain damper, Debon Air, 15x110mm, 44mm offset, 100mm Travel
SeatPost
S-Works FACT carbon, 10mm offset, 30.9mm
Weight
3.86kg (8 lb, 8.2 oz)
Weight Size
MD (weight includes frame and fork as pictured)
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
XS | S | M | L | XL | |
---|---|---|---|---|---|
Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm |
Stack | 596mm | 586mm | 591mm | 605mm | 623mm |
Reach | 390mm | 415mm | 445mm | 470mm | 495mm |
Head Tube Length | 95mm | 95mm | 100mm | 115mm | 135mm |
Head Tube Angle | 67.5° | 67.5° | 67.5° | 67.5° | 67.5° |
BB Height | 314mm | 324mm | 324mm | 324mm | 324mm |
BB Drop | 58mm | 48mm | 48mm | 48mm | 48mm |
Trail | 106mm | 106mm | 106mm | 106mm | 106mm |
Fork Length, Full | 505mm | 505mm | 505mm | 505mm | 505mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 663mm | 687mm | 719mm | 750mm | 782mm |
Chainstay Length | 433mm | 433mm | 433mm | 433mm | 433mm |
Wheelbase | 1090mm | 1116mm | 1148mm | 1179mm | 1211mm |
Bike Standover Height | 740mm | 763mm | 766mm | 776mm | 788mm |
Seat Tube Length | 375mm | 400mm | 430mm | 470mm | 520mm |
Seat Tube Angle | 76.5° | 75.8° | 75.5° | 75.5° | 75.5° |
Top Tube Length, Horizontal | 533mm | 563mm | 598mm | 626mm | 656mm |
