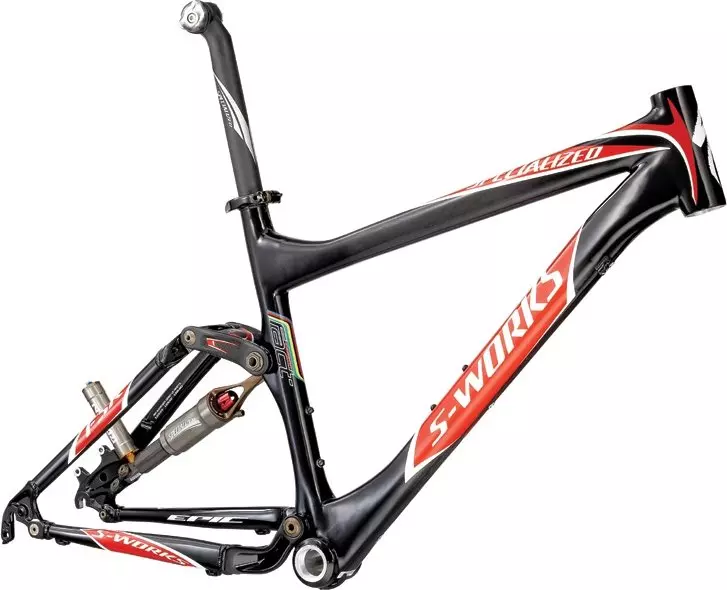

S-Works Epic Frame 26
Overview
Technical Specifications
Geometry
Reviews
Competitive XC DO YOU KNOW HOW FAST YOU WERE GOING? The Epic® is the fastest mountain bike in the world, with a World Championship and a string of World Cup victories to prove it.

Inside Tech Our new FlowControl Brain allows the Epic's AFR rear shock to instantaneously transition between firm and fully active settings, enhancing both efficiency and control. For race situations or just high-performance riding, the Epic's Brain can be dialed to a hardtail firm setting, guaranteeing maximum efficiency on both rough and smooth terrain.

Useful Links Total Suspension Integration FACT Carbon Suspension Setup Manuals/Tech Bulletins

  • FACT M10 carbon front triangle frame, Az1 construction, M5 aluminum rear triangle, sealed cartridge bearing pivots, 100mm travel, FACT carbon link
  • Specialized AFR Shock w/ Flow Control valve and Brain Fade adjust
  • Specialized stands behind the materials and workmanship of any Specialized branded fork or rear shock for a full 5 years.
  • Specialized carbon single bolt seatpost

Technical Specifications

SUSPENSION
REAR SHOCK Specialized AFR Shock w/ Flow Control valve, adjustable from HT firm to Trail Tune, air spring, adjustable rebound
FRAMESET
HEADSET 1 1/8"" threadless, Campy spec integrated sealed cartridge bearing
SEAT BINDER Alloy single bolt, 36.9mm clamp ID, for carbon frames
FRAME FACT 10m carbon front triangle, Az1 construction, M5 aluminum rear triangle with rear brake cantilevers for non-disc set-up, 100mm travel, FACT carbon link

Geometry

Geometry Chart

- Geometry

S M L XL
  S M L XL
Crank Length 170mm 175mm 175mm 175mm
Stem Length 70mm 90mm 110mm 120mm
Seatpost Length 300mm 350mm 400mm 400mm
Handlebar Width 640mm 640mm 640mm 640mm
Chainstay Length 427mm 427mm 427mm 427mm
Top Tube Length (Actual) 538mm 572mm 597mm 624mm
Top Tube Length (Horizontal) 554mm 589mm 615mm 641mm
Head Tube Angle - Low Setting 70.5° 70.5° 70.5° 70.5°
Standover Height 762mm 769mm 788mm 791mm
Head Tube Height 124mm 136mm 146mm 176mm
Wheel Base 1058mm 1094mm 1120mm 1149mm
Seat Tube Angle (Actual) - Low Setting 74° 74° 74° 74°
Seat Tube Length - Center to Top 394mm 444mm 483mm 533mm
Bottom Bracket Height - Low Setting 331mm 331mm 331mm 331mm
