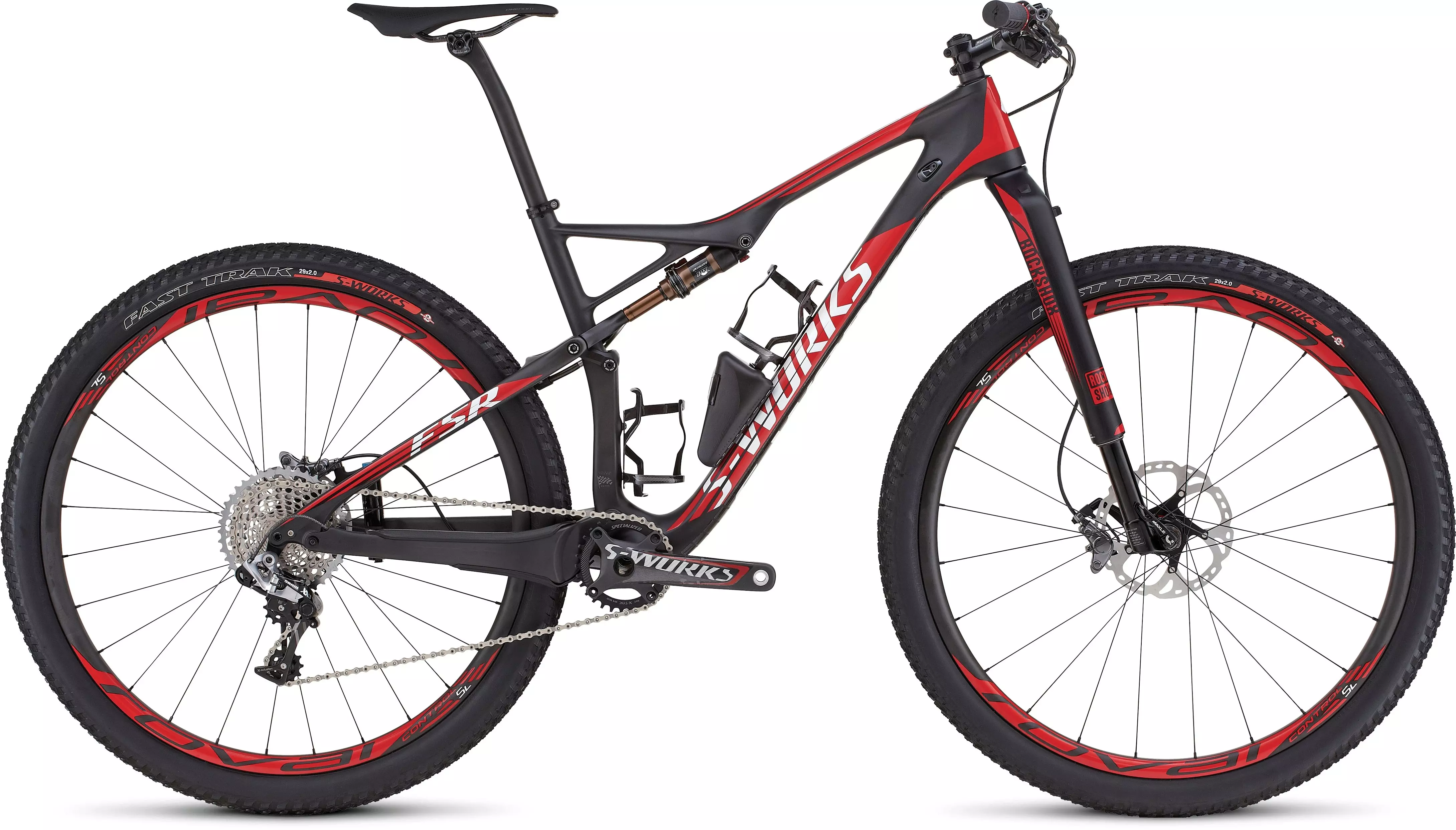

S-Works Epic 29 World Cup
Overview
Technical Specifications
Geometry
Reviews
This World Cup version of the S-Works Epic takes the concept of fast to another level. Like its counterpart "standard" version, it's constructed from our finest carbon fiber and features a drool-worthy build kit and a RockShox RS-1 Brain fork. But where it differs is in its tighter geometry and one-by-specific build, which work together to form explosive power transfer and an even nimbler sense of handling. Along these lines, you'll find that the build holds nothing back, delivering a SRAM XX1 groupset that's lightweight and intuitive, along with XTR brakes for some of the best stopping power in the business. And to drive even harder on efficiency and speed, we included our proprietary Brain technology at the fork and rear shock. This intelligent system is able to interpret the difference between rider and trail input, so it stays firm under effort and plush over bumps. Put it all together, and you have a purpose-built race machine that's certain to lay waste to any short track out there.
  • FACT 11m carbon fiber frame provides the ideal blend of stiffness, strength, and light weight, resulting in the pinnacle of efficiency and speed. Meanwhile, our World Cup XC 29 Geometry, 95mm of travel, internal cable routing, and a SWAT Tool Cradle create exceptional handling and zero-hassle maintenance.
  • The one-by drivetrain is controlled by SRAM's venerable XX1 components, while braking duties are handled by a Shimano XTR carbon lever. Combined, the system forms the ultimate in efficiency and intuitive feel, while also having the added benefit of significant weight savings and minimal required maintenance.
  • Custom FOX/ Specialized remote Mini Brain rear shock features AUTOSAG for easy set up, 95mm of fine-tunable suspension, and our Spike Valve technology for enhanced performance in the corners and rough terrain. To maximize efficiency, the proprietary design allows the shock to differentiate rider input and trail bumps, so the suspension feels firm under effort and plush over rough terrain.
  • RockShox RS-1 Brain fork is arguably the most sought-after fork in XC racing. Compared to a traditional fork, its inverted design creates a carbon fiber upper that provides superior stiffness, while behaving with more sensitivity to small bumps and more control over larger hits. And with Brain technology, these characteristics are amplified and even more efficient. It also includes our Spike Valve technology that minimizes yaw in cornering, while providing maximum travel in high velocity impacts.
  • Roval Control SL 29 carbon fiber wheels are lightweight for climbs, hand-built for precision and durability, stiff for explosive sprints and nimble handling, and most importantly, exceptionally fast for hard, sustained efforts come race day.

Technical Specifications

FRAMESET
SEAT BINDER Specialized, 7050 alloy, single Ti bolt, 31.6mm
HEADSET 1-1/8"" upper, 1-1/2"" lower, threadless, Campy style, cartridge bearings
FRAME FACT 11m carbon, World Cup XC 29 Geometry, carbon PF30 BB, carbon headset cups, 142mm dropouts, internal cable routing, PM 160 rear brake, SWAT tool cradle
WHEELS
FRONT HUB Roval Control SL, Torque Tube
REAR HUB Roval Control SL 142+, Torque Tube, SRAM XX1 XD driver body
INNER TUBES Standard, Presta valve
SPOKES DT Swiss Revolution
RIMS Roval Control SL 29, carbon, disc
FRONT TIRE S-Works Fast Trak, 120TPI, 2Bliss Ready, folding bead, 29x2.0""
REAR TIRE S-Works Fast Trak, 120TPI, 2Bliss Ready, folding bead, 29x2.0""
DRIVETRAIN
BOTTOM BRACKET SRAM, PF30, OS press-in bearings, sealed cartridge
CHAIN SRAM PC-XX1, 11-speed, w/ PowerLink
CRANKSET S-Works, FACT carbon, 30T X-Sync ring, 104mm BCD spider
CASSETTE SRAM XX1, 11-speed, 10-42t
SHIFT LEVERS SRAM XX1, 11-speed, trigger
CHAINRINGS 30T
REAR DERAILLEUR SRAM XX1, 11-speed
COCKPIT
SADDLE Body Geometry S-Works Phenom, carbon rails, 143mm
SEATPOST S-Works FACT carbon, 20mm offset, 27.2mm
GRIPS Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness
HANDLEBARS Specialized FACT carbon, 8-degree backsweep, 6-degree upsweep, 10mm rise, 720mm, 31.8mm
STEM Syntace F109, 6-degree rise
BRAKES
BRAKE LEVERS Shimano XTR, carbon lever, I-spec
FRONT BRAKE Shimano XTR, hydraulic disc, Ti-metallic pads, 160mm Ice-Tech rotor
REAR BRAKE Shimano XTR, hydraulic disc, Ti-metallic pads, 160mm Ice-Tech rotor
ACCESSORIES
PEDALS Nylon, CEN std., w/ toe clips
SUSPENSION
FORK RockShox RS-1 Brain, Solo Air spring, 100mm travel, Spike Valve, top-mount Brain Fade adjust, rebound adjust, inverted design, tapered carbon crown/steerer, 46mm offset, 15mm Maxle Ultimate thru-axle
REAR SHOCK FOX/Specialized remote Mini Brain, AUTOSAG, Spike Valve, Brain Fade adjust I-Valve, Kashima Coating, 200x48mm

Geometry

Geometry Chart

Epic - Geometry

S M L XL
  S M L XL
Stem Length 70mm 90mm 100mm 110mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 350mm 400mm 400mm 400mm
Handlebar Width 720mm 720mm 720mm 720mm
Reach 398mm 423mm 446mm 465mm
Stack 583mm 597mm 611mm 630mm
Wheelbase 1073mm 1103mm 1131mm 1157mm
Bike Stand-Over Height 770mm 774mm 780mm 793mm
Head-Tube Length 90mm 105mm 120mm 140mm
Front-Center 633mm 661mm 691mm 717mm
Fork Rake/Offset 46mm 46mm 46mm 46mm
Head-Tube Angle 71° 71° 71° 71°
Trail 82mm 82mm 82mm 82mm
B-B Height 332mm 332mm 332mm 332mm
Chain-Stay Length 439mm 439mm 439mm 439mm
Fork Length (full) 499mm 499mm 499mm 499mm
Seat-Tube Angle 74° 74° 74° 74°
B-B Drop 40mm 40mm 40mm 40mm
Seat-Tube Length 400mm 434mm 470mm 520mm
Top-Tube Length (horizontal) 562mm 592mm 618mm 643mm
