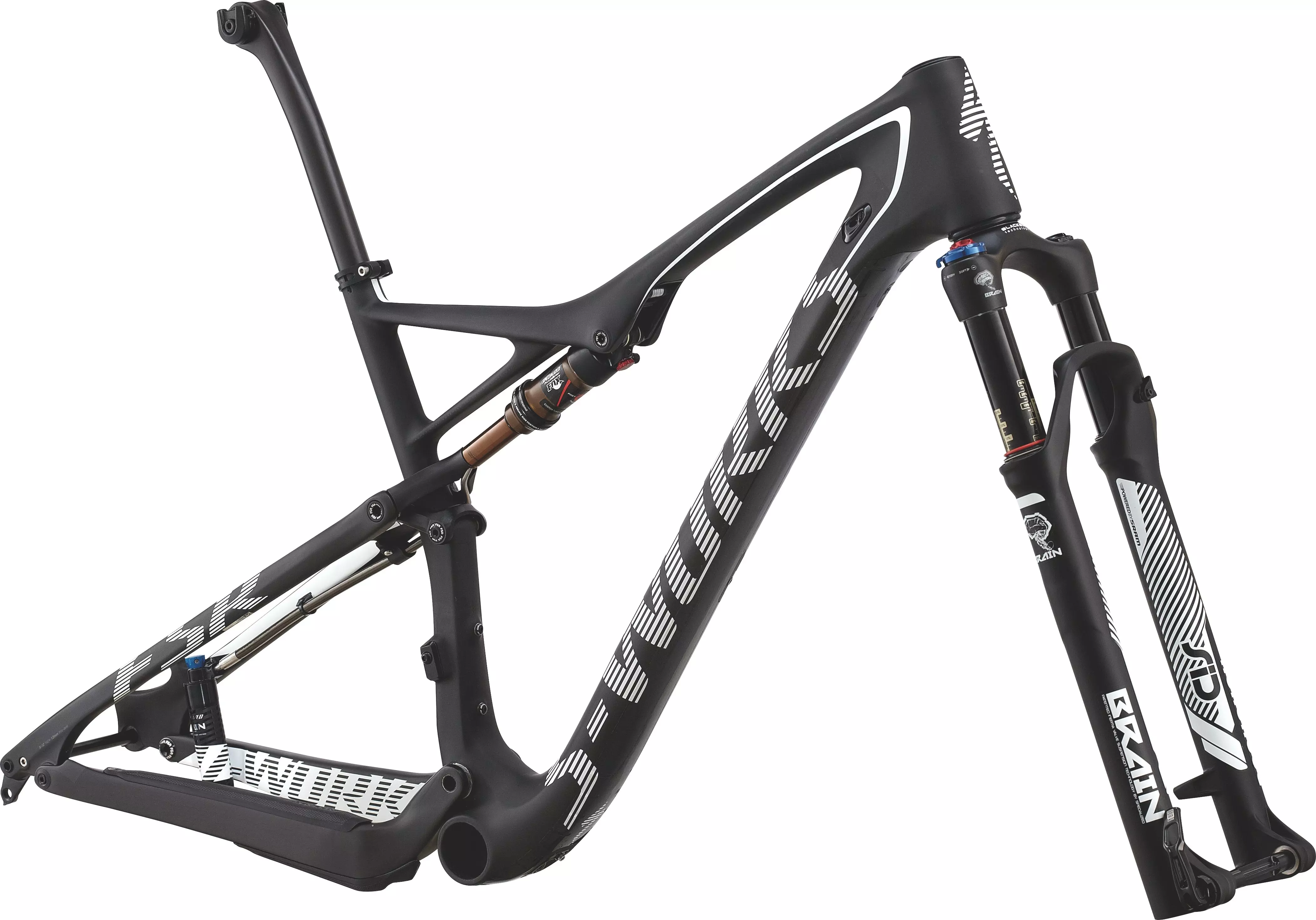

The S-Works Epic features a FACT carbon frame with a FOX/Specialized rear shock featuring AUTOSAG and Mini-Brain technology and 100mm of travel. Up front a custom RockShox SID World Cup 29 fork offers 100mm of travel, just waiting for a custom cross-country build.
  • FACT 11m carbon, 100mm-travel, FSR frame w/ full SWAT kit for the ultimate XC race machine
  • Specialized/FOX Brain shock w/ AUTOSAG knows the difference between smooth and rough terrain
  • RockShox SID World Cup fork w/ Brain damping and 100mm travel for race-ready XC performance
  • Start building your dream S-Works frameset with the S-Build Program, click here to learn more

Technical Specifications

Technical Specifications

SUSPENSION
FORK RockShox SID World Cup 29 Brain, Solo Air spring, tapered carbon steerer, top-mount BrainFade, rebound adjust, 15mm thru-axle, 100mm travel
REAR SHOCK FOX/Specialized remote Mini-Brain w/ AUTOSAG, Kashima coating, inertia valve, BrainFade adjust, 205x53mm, 100mm travel
COCKPIT
SEATPOST S-Works FACT carbon, 20mm offset, 27.2mm
FRAMESET
HEADSET 1-1/8"" upper, 1-1/2"" lower, threadless, Campy style, cartridge bearings
SEAT BINDER Specialized 7050 alloy, single Ti bolt, 31.8mm
FRAME S-Works FACT 11m carbon, 29"" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, SWAT EMT tool cradle, 100mm travel
* Specifications are subject to change without notice

Geometry

Geometry Chart

Epic FSR - Geometry

S M L XL
  S M L XL
Crank Length 170mm 175mm 175mm 175mm
Stem Length 75mm 90mm 100mm 110mm
Seatpost Length 350mm 400mm 400mm 400mm
Handlebar Width 700mm 700mm 700mm 700mm
Reach 393mm 418mm 441mm 462mm
Top Tube Length, Horizontal 564mm 593mm 620mm 647mm
Stack 587mm 601mm 615mm 634mm
Bottom Bracket Drop 40mm 40mm 40mm 40mm
Chainstay Length 448mm 448mm 448mm 448mm
Top Tube Length, Actual 529mm 557mm 583mm 611mm
Head Tube Angle 70.5° 70.5° 70.5° 70.5°
Head Tube Length 90mm 105mm 120mm 140mm
Seat Tube Angle, Effective 73.75° 73.75° 73.75° 73.75°
Seat Tube Angle, Actual 68.9° 69.25° 69.6° 70°
Seat Tube Length, Center to Top 400mm 434mm 470mm 520mm
Standover Height 770mm 774mm 780mm 793mm
Wheel Base 1082mm 1112mm 1140mm 1168mm
Bottom Bracket Height 332mm 332mm 332mm 332mm
