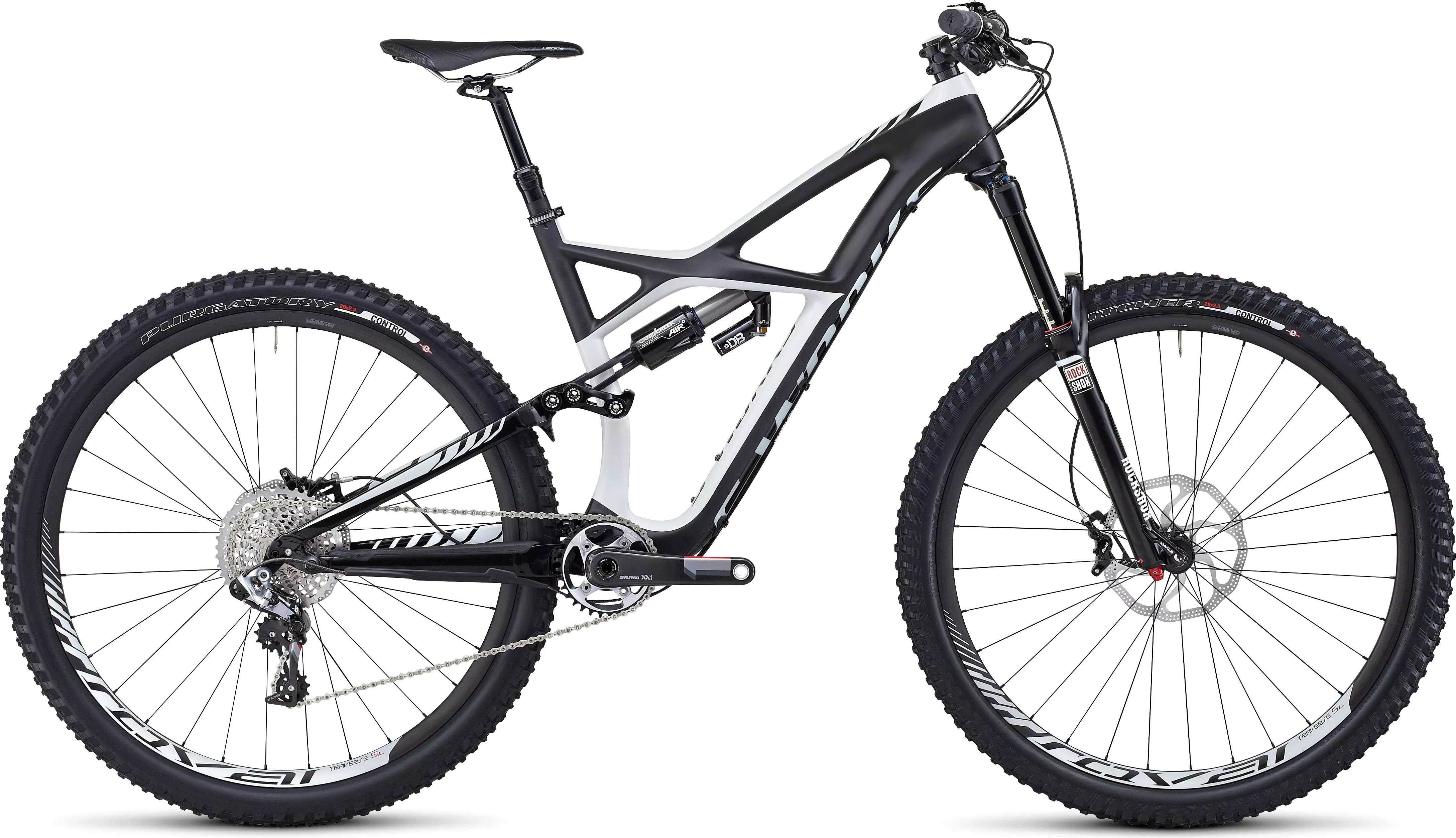

2014 S-Works Enduro 29

A true all-mountain machine, the top-shelf S-Works Enduro FSR Carbon 29 has 155mm…

Color:

Gloss/Satin Carbon/White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the color and size you're looking for to search nearby store inventory.

Unavailable

This item is not available for Find Nearby

Product Details

A true all-mountain machine, the top-shelf S-Works Enduro FSR Carbon 29 has 155mm of rear wheel travel, a FACT IS-X 11m carbon front triangle, a Custom Cane Creek Double Barrel air shock, RockShox Pike RCT3 fork, SRAM XX1 11-speed drivetrain featuring XX1 carbon crankset, and thru-axle Roval Traverse SL 29 142+ wheelset for an ultra-lightweight ride.

Ground-breaking FACT IS-X 11m carbon FSR 29 frame and M5 alloy rear triangle offers 155mnm of rear wheel travel, plus 142+ dropouts for robust and lightweight All-Mountain performance
Custom Cane Creek Double Barrel air shock provides a rider's dream of externally adjustable high-and-low-speed rebound and compression settings for maximum control over challenging terrain
All-new 750mm wide mini-rise 7050 alloy handlebars control the new RockShox Pike RCT3 fork is a great blend of stiffness and weight with great tuning options with 160mm of and a 15mm thru-axle for precise handling
Hookless, lightweight Roval Traverse SL 29 carbon All-Mountain wheelset with DT Swiss internals and spokes, 15mm thru-axle, and a 142+ rear hub spacing for durable, lightweight, and tubeless-ready performance
2Bliss Ready, 2.3" dual compound Specialized Butcher Control 29 front and Purgatory Control 29 rear tires for premium control on challenging trail conditions
SRAM XX1 11-speed drivetrain featuring XX1 carbon crankset with PF30 spindle, single chainring setup works with SRAM XX 10-42 cassette for premium shifting and a huge gear range
All-new, Specialized Command Post IR uses a remote lever to adjust saddle height on-the-fly to maximize climbing and descending performance

Technical Specifications

FRAMESET

FRAME

FACT IS-X 11m carbon front triangle, 29"" geometry, FACT IS construction, M5 rear triangle, tapered headtube, PF30 BB, ISCG '05 mounts, internal Command Post IR routing, 142+ dropouts, full cartridge bearing pivots, replaceable derailleur hanger, 155mm travel

SWAT

Bottle cage w/ SWAT Technology compatible (not included)

HEADSET

1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

7050 hard anodized alloy collar, single bolt, 34.9mm

SUSPENSION

REAR SHOCK

Custom Cane Creek Double Barrel Air, high/low speed comp and reb adj., climb switch, 215.9mm x 57.2mm

FORK

RockShox Pike RCT3 29, Solo Air spring, tapered alloy steerer, comp, lockout, reb, and threshold adj., 15mm thru-axle, 160mm travel

WHEELS

RIMS

Roval Traverse SL 29, carbon disc, hookless bead, 22mm internal width, 32h

FRONT HUB

Roval Traverse SL 29, 15mm thru-axle end caps, 32h

REAR HUB

Roval Traverse SL 29 142+, DT Swiss Star Ratchet, XX1 driver body, 12mm thru-axle, 32h

SPOKES

DT Swiss Super Comp, 2.0/1.65/1.8 stainless

FRONT TIRE

Specialized Butcher Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, dual-compound, 60TPI

REAR TIRE

Specialized Purgatory Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, dual-compound, 60 TPI

DRIVETRAIN

FRONT DERAILLEUR

SRAM, 10-speed, mid direct mount for Taco Blade, bottom pull (not included, Taco Blade in parts box)

REAR DERAILLEUR

SRAM XX1 Type 2, 11-speed, mid cage

SHIFT LEVERS

SRAM XX1, 11-speed, carbon/aluminum trigger, w/ MatchMaker clamp

CASSETTE

SRAM XX1, 11-speed, 10-42

CHAIN

SRAM XX1, 11-speed, hollow plates/pins, PowerLink

CRANKSET

SRAM XX1, carbon arms, custom SRAM XX1 style ring, PF30 spindle, 175mm

CHAINRINGS

32T

BOTTOM BRACKET

SRAM PF30, OS press-in bearings, sealed cartridge

COCKPIT

SADDLE

Body Geometry Henge Expert, Ti rails, 143mm

SEATPOST

Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel

STEM

Syntace F109, 6-degree rise, 31.8mm clamp

HANDLEBARS

Specialized XC Mini-Riser, 7050 alloy, 750mm wide, 10mm rise, 8-backsweep, 6-upsweep, 31.8mm

GRIPS

Specialized Sip Grip, light lock-on, half-waffle aramid-infused, M: regular, Others: XL

BRAKES

FRONT BRAKE

Custom Avid X0 Trail, 4-piston caliper, steel backed metallic pad, 200mm rotor

REAR BRAKE

Custom Avid X0 Trail, 4-piston caliper, steel backed metallic pad, 180mm rotor

BRAKE LEVERS

Custom Avid X0, hydraulic disc, carbon blade w/ bearing, tool-less reach adj. w/ MatchMaker clamp

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	M	L	XL
Top Tube Length (Horizontal)	594mm	617mm	640mm
Seat Tube Angle (Effective)	75°	75°	75°
Head Tube Height	114mm	124mm	139mm
Top Tube Length (Actual)	557mm	577mm	602mm
Seat Tube Angle (Actual)	69°	69°	69°
Seat Tube Length - Center to Top	445mm	470mm	520mm
Bottom Bracket Height	351mm	351mm	351mm
Wheel Base	1159mm	1183mm	1209mm
Standover Height	777mm	783mm	789mm
Stack	632mm	641mm	655mm
Reach	425mm	445mm	465mm
Head Tube Angle	67.5°	67.5°	67.5°
Chainstay Length	430mm	430mm	430mm
Crank Length	175mm	175mm	175mm
Handlebar Width	720mm	720mm	720mm
Stem Length	60mm	75mm	90mm
Seatpost Length	425mm	425mm	425mm
