S-Works Diverge Frameset

Icon

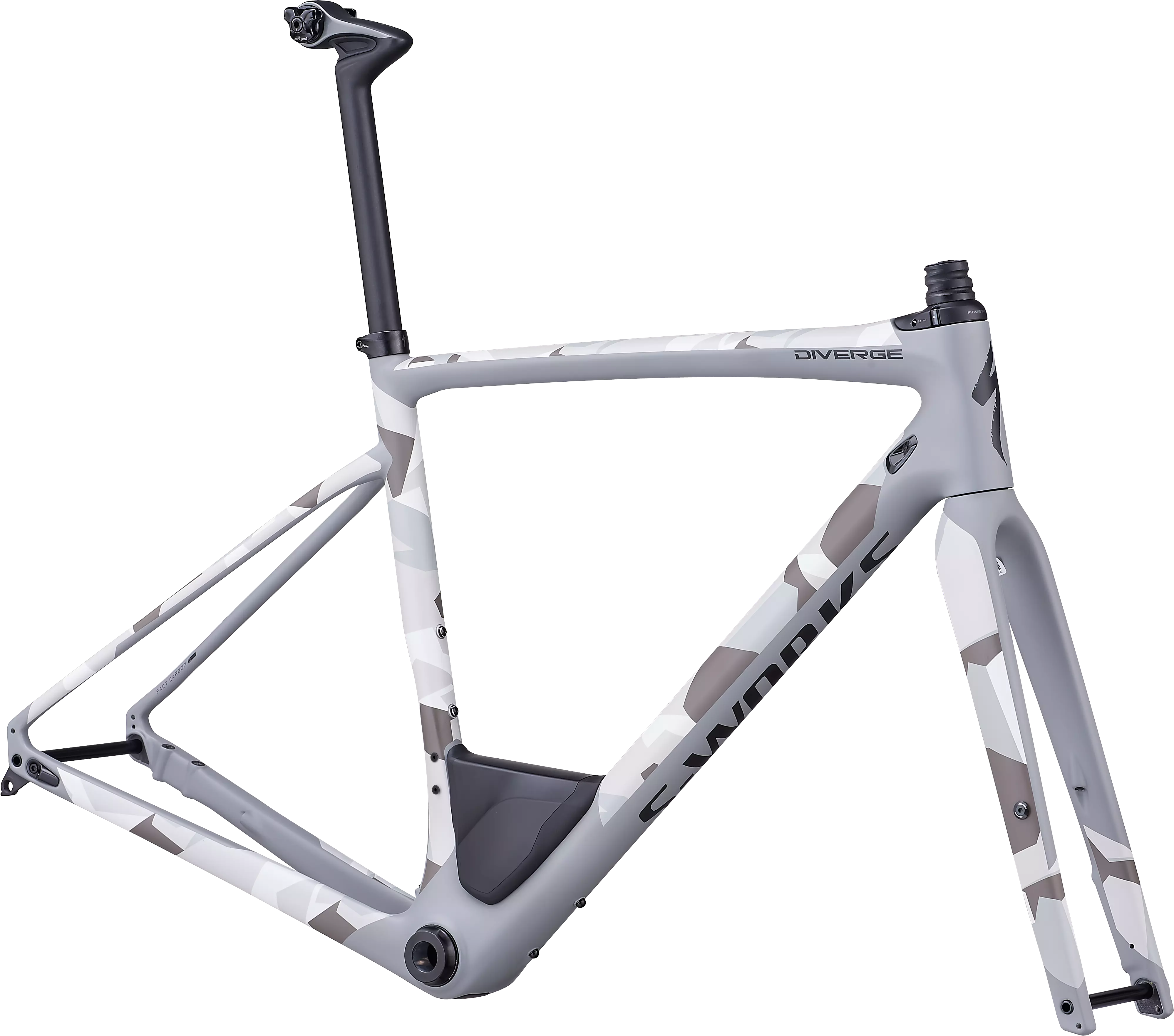

2019 S-Works Diverge Frameset

While the fun may begin where the road ends, you still need a bike that'll get you there—one bike that shreds singletrack and crushes through road miles with equal expertise. Sure, some have tried to make their 'cross bikes more "road-capable" (whatever that means), and others have made their road bikes more "adventure-ready," but we created one bike that makes no compromises between the two. The S-Works Diverge frameset redefines the possibilities for adventure on a drop-bar-bike, and it's eager to be the foundation for your dream build.

The Diverge is more capable than ever. And with the constant goal to best meet your needs, we took your number one request into account—tire clearance. The new frame will comfortably fit up to 700x42mm (or 650b x 47mm) tires. Along with tire clearance, weight was a large factor in the development, and in taking some design cues from the Roubaix's development, we created a sub 900-gram FACT 11r carbon frame that’s one of the lightest in the category. Actually, that's pretty damn light, even if your intent was more Polka Dot Jersey than hunter's plaid flannel.

Next up, we moved away from a traditional ‘cross geometry, instead opting for something that hasn’t been seen before—our Open Road Geometry. You can think of it as a road version of modern trail bike geometry. It provides playful handling and predictable steering for endless dirt skids and mid-corner drifts. The geo features a bottom bracket that's over a half-centimeter lower than the previous Diverge, a slacked-out head tube angle, short chainstays, and a short wheelbase. These changes make for a bike that's not only fun in the dirt, but one that also performs well on the road.

And while riding gravel and dirt roads on a road bike may add to the adventure, there’s only so much that wider tires with lower pressures can absorb when it comes to bumps. With this in mind, we implemented a new version of our Future Shock into the Diverge design. It not only soaks up bumps with ease, but it also adds the benefit of extremely predictable handling. That's because the wheelbase isn’t lengthening when you hit a bump, so the front-end of the Diverge keeps the same effective head tube angle. More simply: when you dive hard into a turn, you won’t be surprised by under-steer or sloppy handling. Unlike the original Future Shock (found on the Roubaix), the Diverge's version features a progressive spring that makes this technology more suitable for off-road applications, where stiffer suspension is often needed to soak-up larger bumps and obstacles.

To add to its multifaceted talents, we topped it off with three water bottle mounts, mounts for racks and fenders, and our Road SWAT™ kit that can fit a tube, CO2, CO2 head, valve extender, and money clip, as well as our legendary CG-R FACT carbon seatpost. So while it’s one of the most smile-inducing bikes you’ll ever ride, it’s equally adept at commuting or even bikepacking.

Technical Specifications

Add Icon

FRAMESET

FRAME

S-Works FACT 11r carbon, Open Road Geometry, 12x142mm thru-axle, Future Shock Progressive suspension, 20mm of travel, flat-mount disc

SUSPENSION

FORK

S-Works FACT carbon, flat-mount disc, 12x100mm thru-axle

COCKPIT

SEAT BINDER

Diverge collar for carbon frames

SEATPOST

S-Works CG-R, FACT carbon fiber, single-bolt, 27.2mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
485254565861
Crank Length------
Handlebar Width------
Stem Length------
Saddle Width------
Seatpost Length350mm350mm400mm400mm400mm400mm
Stack569mm574mm592mm613mm639mm662mm
Reach360mm367mm373mm379mm385mm392mm
Head Tube Length90mm95mm108mm128mm155mm178mm
Head Tube Angle70.8°71°71.9°72.5°72.5°72.8°
BB Height265mm265mm265mm265mm265mm265mm
BB Drop85mm85mm85mm85mm85mm85mm
Trail64mm62mm62mm58mm58mm56mm
Fork Length, Full390mm390mm390mm390mm390mm390mm
Fork Rake/Offset55mm55mm50mm50mm50mm50mm
Front Center593mm599mm597mm604mm618mm629mm
Chainstay Length419mm419mm421mm421mm421mm421mm
Wheelbase997mm1004mm1004mm1011mm1025mm1036mm
Top Tube Length, Horizontal524mm532mm549mm561mm575mm589mm
Bike Standover Height704mm726mm752mm776mm801mm815mm
Seat Tube Length405mm440mm473mm500mm525mm555mm
Seat Tube Angle74°74°73.5°73.5°73.5°73.5°
Geometry
