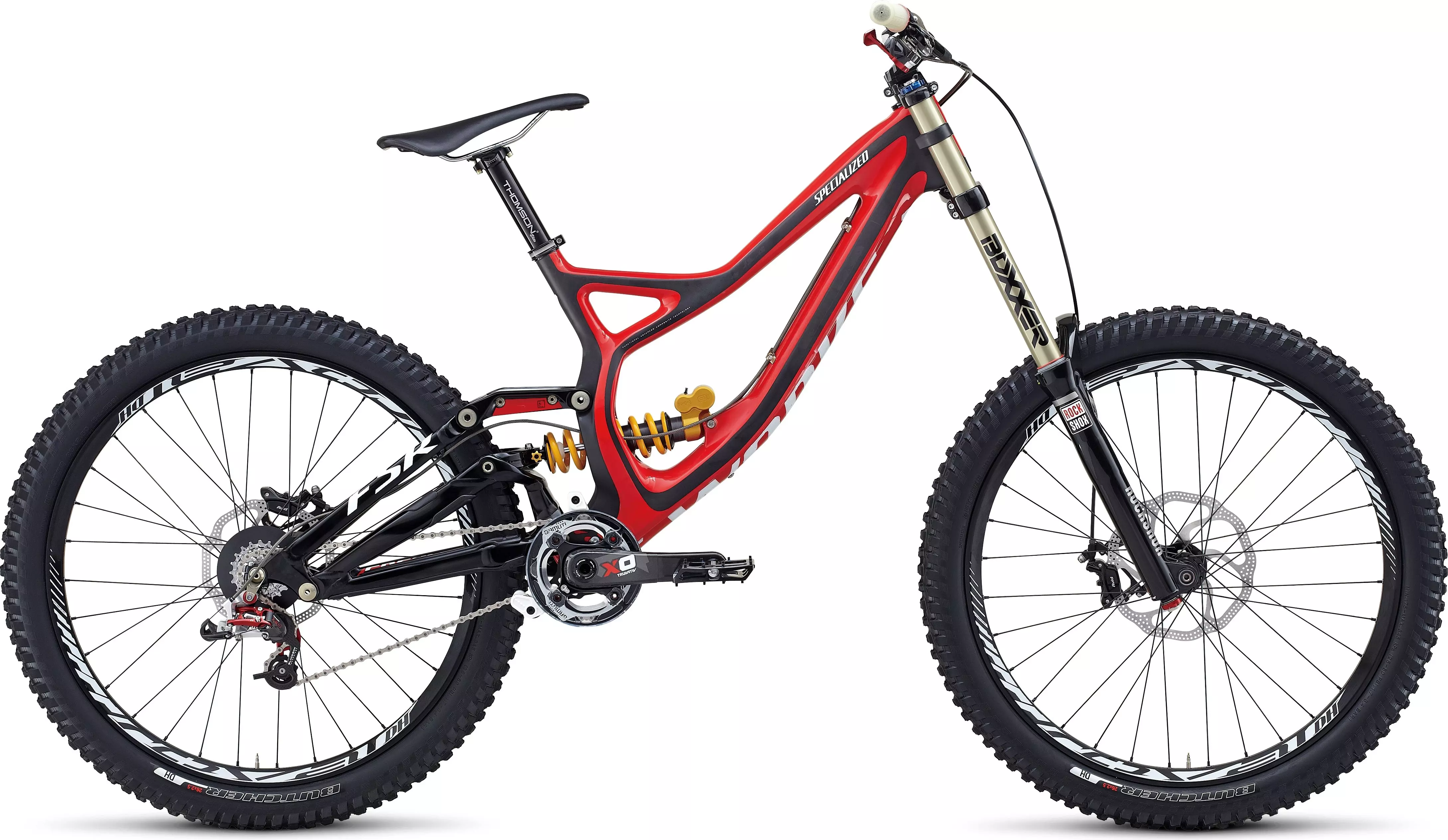

S-Works Demo 8
Overview
Technical Specifications
Geometry
Reviews
With four downhill World Championships already to its name, the Demo 8 II is the world's fastest downhill machine. With 200mm of travel, groundbreaking Öhlins twin-tube TTX22M rear shock, and a RockShox Boxxer World Cup air-sprung fork it oozes premium downhill performance.
  • S-Works Demo 8 FACT 11m carbon frame features 200mm of rear wheel travel, mag link, 135mm rear end, downtube protector, and suspension engineered for the world's toughest terrain
  • In a groundbreaking partnership, Specialized and Öhlins suspension have teamed up to develop the best performing bike and shock combination. The TTX22M shock uses Öhlins patented twin-tube design to separate compression from rebound
  • RockShox Boxxer World Cup has 200mm of air-sprung travel and features extreme tuning capabilities with high-and-low-speed compression and rebound adjustments, plus a 20mm Maxle thru-axle
  • Specialized Butcher DH 26x2.5" soft dual compound tires offer great traction with Monster Team approved tread, and a bombproof casing
  • Custom SRAM X0 DH crankset with carbon arms, 32T chainring, PF30BB, and e13 bash guard for extra clearance, lightweight durability, and chain retention
  • All-new Renthal 780mm carbon DH bar is light and strong, just like the Demo 8
  • SRAM X0 9-speed rear derailleur works with a custom Shimano 7-speed 9-20 cassette for lightweight downhill-specific performance

Technical Specifications

FRAMESET
SEAT BINDER Specialized 7050 hard anodized alloy, single bolt, 36.9mm
HEADSET 1-1/2"" integrated for 1-1/8"" steerer, cartridge bearings
FRAME FACT 11m front triangle, bonded alloy-insert BB and headtube, 135mm spacing M5 rear triangle, magnesium link, compact race design, ISCG '05 mount, cartridge bearing rear shock mount, rear derailleur protector, 200mm travel
WHEELS
FRONT HUB Specialized Hi Lo disc, sealed cartridge bearings, 20mm thru-axle, 32h
REAR HUB Custom DT Swiss, Capreo compatible, Star Ratchet, 135mm, 32h
SPOKES DT Competition Stainless, 3X front/rear 2.0
RIMS Roval DH 26, alloy disc, 30mm wide w/eyelets, 32h
FRONT TIRE Specialized Butcher DH, 26x2.5"", wire bead, soft dual compound, 60 TPI
REAR TIRE Specialized Butcher DH, 26x2.5"", wire bead, soft dual compound, 60 TPI
DRIVETRAIN
BOTTOM BRACKET SRAM PF30 DH, 83mm shell
CHAIN KMC X9 SL, nickel plate, reusable Missing Link
CRANKSET SRAM X0 DH, carbon arms, micro-single 32T ring, PF30 spindle, 165mm, E.13 SRS chainguide
CASSETTE Shimano HG-70 Capreo, 7-speed, Micro 9-20
SHIFT LEVERS SRAM X0, 9-speed, carbon/aluminum trigger, w/ MatchMaker clamp
REAR DERAILLEUR SRAM X0, 9-speed, short cage
COCKPIT
SADDLE Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SEATPOST Thomson alloy straight w/ 12-degree clamp, 367mm
GRIPS Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, L: XL thickness
HANDLEBARS Renthal Fatbar DH, 30mm rise, aluminum, 780mm wide, 8-degree backsweep, 6-degree upsweep, 31.8mm
STEM Specialized Direct Mount, 6061 alloy, 4-bolt, 31.8mm clamp
BRAKES
BRAKE LEVERS Custom Avid Code X0 World Cup, hydraulic disc, X0 lever, tool-less reach
FRONT BRAKE Custom Avid Code X0 World Cup, hydraulic disc, Code caliper, organic pad, stainless hardware, 200mm rotor
REAR BRAKE Custom Avid Code X0 World Cup, hydraulic disc, Code caliper, organic pad, stainless hardware, 180mm rotor
ACCESSORIES
PEDALS Specialized Bennies, 6061 alloy body, sealed cartridge, 4.5mm removable pins
SUSPENSION
FORK RockShox Boxxer World Cup, Mission Control damper, Solo Air spring, alloy steerer, comp and reb adj. w/ bottom out control, 20mm Maxle DH thru-axle, 200mm travel
REAR SHOCK Custom Õhlins TTX22M, coil over w/ piggy back, spherical bearing mount, high/low speed comp, reb adj., 9.5x3.0"", Spring Rate XS: 297lb, S:343lb, M:388, L:434lb

Geometry

Geometry Chart

Demo - Geometry

S M L
  S M L
Stem Length 45mm 45mm 45mm
Crank Length 165mm 165mm 165mm
Seatpost Length 300mm 300mm 300mm
Bottom Bracket Height - High Setting 353mm 353mm 353mm
Handlebar Width 750mm 750mm 750mm
Seat Tube Angle (Effective) 76° 76° 76°
Reach 410mm 430mm 447mm
Stack 593mm 593mm 593mm
Chainstay Length 421mm 421mm 421mm
Head Tube Angle 64° 64° 64°
Top Tube Length (Actual) 523mm 532mm 545mm
Ground-Top 931mm 931mm 931mm
Top Tube Length (Horizontal) 560mm 580mm 597mm
Bottom Bracket Height - Mid Setting 343mm 343mm 343mm
Standover Height 715mm 717mm 721mm
Wheel Base 1171mm 1191mm 1208mm
Head Tube Height 112mm 112mm 112mm
Seat Tube Angle (Actual) 61° 61° 61°
Seat Tube Length - Center to Top 394mm 419mm 458mm
Bottom Bracket Height - Low Setting 338mm 338mm 338mm
