S-Works CruX Disc Frameset
$3,500.00
Part No.

S-Works CruX Disc Frameset

$3,500.00
Part No.  106550
load-spinner
S-Works CruX Disc Frameset
Overview
Technical Specifications
Geometry
Reviews

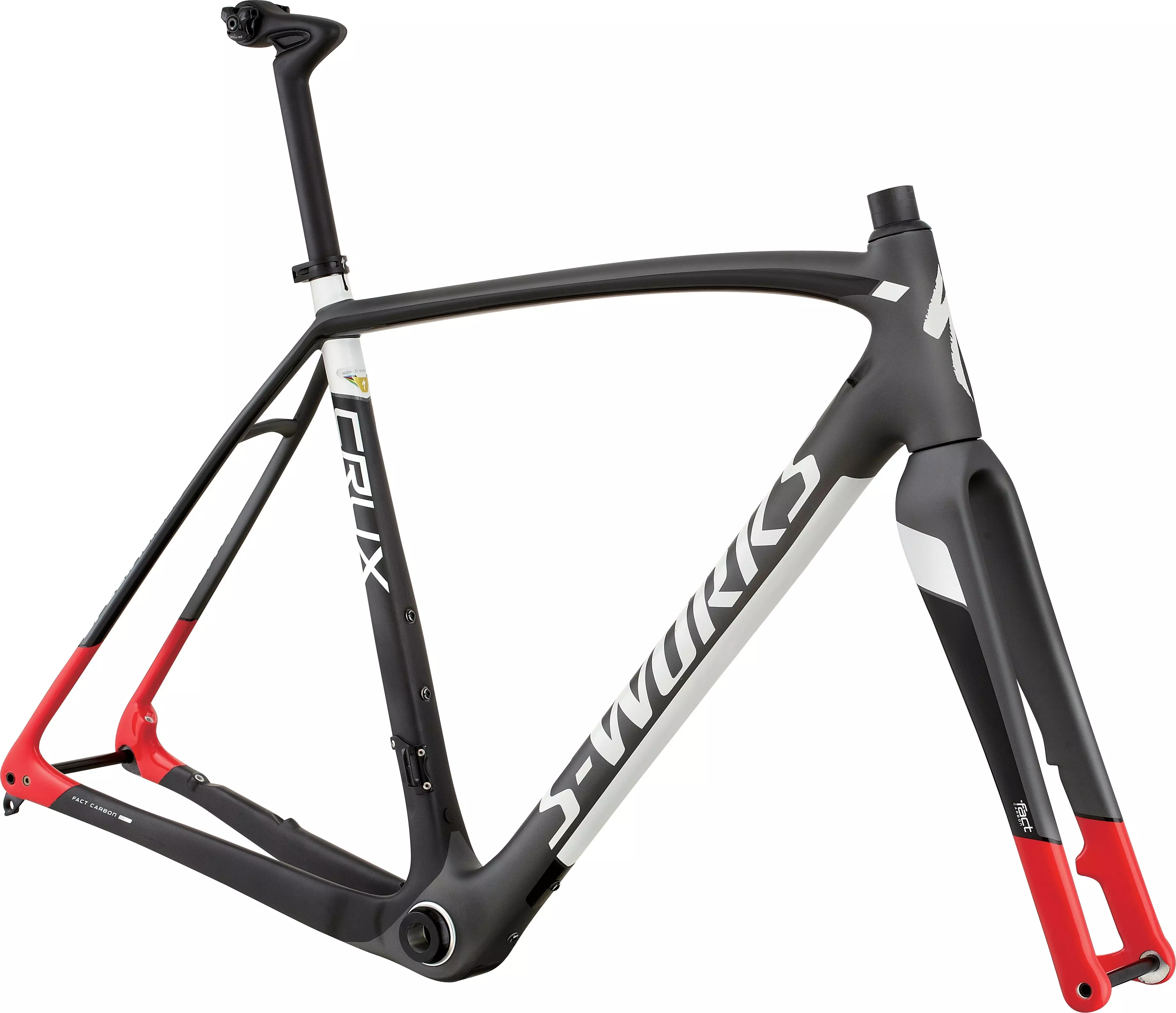

The S-Works CruX Disc frameset is the ultimate cyclocross weapon, just waiting to be built up exactly how you want it. The S-Works FACT 11r carbon frame and full carbon fork are designed to be incredibly lightweight and responsive for the lung-searing efforts that are unique to cyclocross. Add to that SWAT Box compatibility and a third bottle mount on the down tube for water or a tool Keg for hard training days, and you've got the foundation for a real course crusher.
  • The Specialized CG-R seatpost is constructed from our high quality FACT carbon fiber, and when combined with the elastomer insert, it helps reduce rider fatigue and increase compliance.
  • The internally routed, Specialized FACT carbon fork with thru axle increases steering response and rider input for the tight turns and all-out efforts demanded in CX.
  • Our top-of-the-line FACT 11r carbon frame with rear thru axle takes advantage of our highest quality carbon production methods to create a bike that's as responsive as it is lightweight for the demands of 'cross racing.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, Ti bolt, 32.6mm
HEADSET 1-1/8"" upper, 1-3/8” lower, light alloy housing, stainless steel bearings, 8mm carbon cone spacer, w/ 25mm carbon spacers
FORK Specialized FACT carbon
FRAME Specialized FACT 11r carbon, 1-3/8"" lower bearing, disc mount, OSBB
DRIVETRAIN
BOTTOM BRACKET CeramicSpeed, ceramic bearings
COCKPIT
SEATPOST Specialized CG-R, FACT carbon, single bolt, 27.2mm

Geometry

Geometry Chart

CruX - Geometry

  46 49 52 54 56 58 61
Stem Length 75mm 75mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Seatpost Length 300mm 300mm 300mm 350mm 350mm 350mm 350mm
Handlebar Width 400mm 400mm 420mm 420mm 420mm 440mm 440mm
Reach 366mm 369mm 376mm 379mm 384mm 387mm 393mm
Stack 522mm 540mm 554mm 566mm 583mm 597mm 618mm
Wheelbase 1008mm 1008mm 1010mm 1016mm 1022mm 1025mm 1032mm
Bike Stand-Over Height 725mm 754mm 773mm 790mm 807mm 825mm 849mm
Head-Tube Length 100mm 115mm 125mm 140mm 155mm 170mm 190mm
Front-Center 593mm 594mm 596mm 601mm 606mm 609mm 616mm
Fork Rake/Offset 51mm 51mm 51mm 49mm 49mm 49mm 49mm
Head-Tube Angle 69.5° 70.5° 71.5° 71.5° 72° 72.5° 73°
Trail 76mm 70mm 63mm 65mm 62mm 59mm 56mm
B-B Height 279mm 279mm 279mm 281mm 281mm 283mm 283mm
Chain-Stay Length 425mm 425mm 425mm 425mm 425mm 425mm 425mm
Fork Length (full) 400mm 400mm 400mm 400mm 400mm 400mm 400mm
Seat-Tube Angle 75.5° 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71mm 71mm 71mm 69mm 69mm 67mm 67mm
Seat-Tube Length 470mm 490mm 510mm 530mm 550mm 570mm 600mm
Top-Tube Length (horizontal) 501mm 509mm 535mm 547mm 559mm 569mm 588mm
