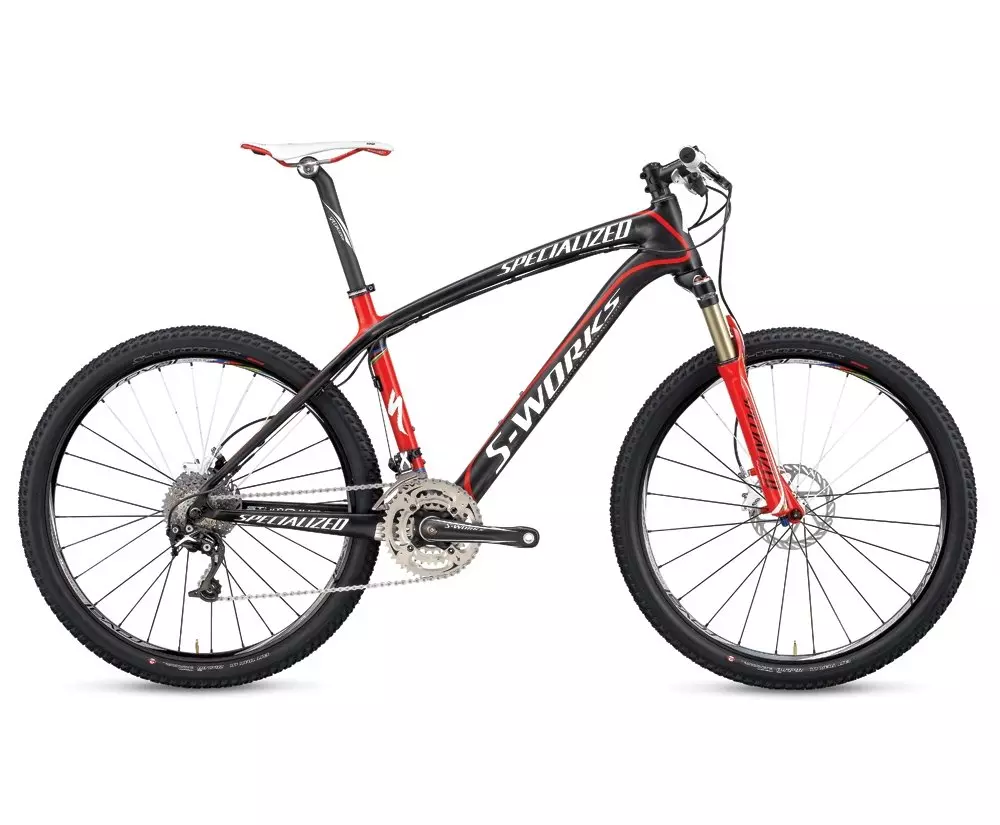

S-Works Carbon HT Disc
$6,600.00
Part No.

S-Works Carbon HT Disc

$6,600.00
Part No.  22324
load-spinner
S-Works Carbon HT Disc
Overview
Technical Specifications
Geometry
Reviews
STILL LEAVING ITS COMPETITION IN THE DUST after decades in production, the Stumpjumper® Hardtail makes no apologies for being the leanest, lightest (some models are under 20 lbs.) and most precision hardtail on the market. Tradition works.
  • The S-Works FACT 10m carbon frame is as fast as it is beautiful - a carbon drive-side with forged disc, non-drive dropouts and tapered head tube for increased rigidity.
  • The smartest fork on the trail. Our Specialized Future Shock S90 with Brain Fade technology (borrowed from our Epic shock) allows you to fine tune your ride, while a tapered carbon steerer increases front end stiffness.
  • Custom Avid Ultimate hydraulic disc brakes with lightweight magnesium lever body and carbon blade, titanium hardware and alloy-backed organic pads provide modulation and control at every speed.
  • The S-Works oversized carbon crankset is feathery light and incredibly stiff, spinning smoothly on an integrated oversize BB - it's the heart of a great drivetrain.
  • Roval Controle SL wheels are lightweight and XC race-ready, with high quality Swiss-made internals and DT Aerolite butted spokes.

Technical Specifications

FRAMESET
SEAT BINDER 36.9mm clamp, one bolt for carbon frame/post
HEADSET 1-1/8"" to 1.5"" Threadless, Campy style, cartridge bearing
FRAME S-Works SJ HT FACT 10M carbon, carbon drive and forged disc dropouts w/ disc mount and replaceable derailleur hanger
WHEELS
FRONT HUB Roval Controle SL XC Carbon, OS, 28mm axle caps, straight pull
REAR HUB Roval Controle SL XC, OS, straight pull
INNER TUBES Specialized Ultralight 26x2.0"", presta
SPOKES DT Swiss Aerolite 2.0/1.6mm, black, alloy nipples
RIMS Roval Controle SL, disc, 24mm
FRONT TIRE S-Works Fast Trak LK, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
REAR TIRE S-Works Fast Trak LK, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
DRIVETRAIN
BOTTOM BRACKET S-Works, OS, integrated
CHAIN Shimano XTR, 9-speed
CRANKSET S-Works OS carbon crank, S: 170mm, others: 175mm
CASSETTE Shimano M970 XTR Ti, 9-speed, 11-34t
SHIFT LEVERS Shimano XTR Rapid Fire, trigger
FRONT DERAILLEUR Shimano M660 SLX, 34.9mm, clamp bottom swing, dual pull
CHAINRINGS 22 x 32 x 44, 4-bolt, 104/64mm
REAR DERAILLEUR Shimano RD-M972 Top-normal XTR, Shadow, carbon cage
COCKPIT
SADDLE Specialized Phenom SL, Ti rails, thin foam, 15.5/17/18: 130mm, 19/21: 143mm
SEATPOST S-Works Carbon 30.9mm, single-bolt head, 15.5: 300mm 17/18: 350mm, 19/21: 400mm
GRIPS Specialized thin lock on grip (15.5/17"") Specialized Thick lock on grip (all others)
HANDLEBARS Specialized XC Carbon flat, OS 31.8 flat bar, 600mm wide,
STEM Syntace F119 OS stem, 31.8, 6 degree rise, 15.5: 75mm, 17: 90mm, 18: 100mm, 19: 110mm, 21: 120mm
BRAKES
BRAKE LEVERS Custom Avid Ultimate SL Mag Hydraulic
FRONT BRAKE Custom Avid Ultimate SL Mag, alloy backed organic pads, magnesium caliper and lever body w/ carbon blade, ti hardware package, 160mm rotor
REAR BRAKE Custom Avid Ultimate SL Mag, alloy backed organic pads, magnesium caliper and lever body w/ carbon blade, Ti hardware package, 140mm rotor
ACCESSORIES
PEDALS None
SUSPENSION
FORK Soecialized Future Shock S90, 90mm travel, Brain Fade, rebound adj., single sided air spring and damper, carbon 1-1/8"" to 1.5"" steerer

Geometry

Geometry Chart

Stumpjumper - Geometry

  17 18 19 21
Stem Length 90mm 100mm 110mm 120mm
Crank Length 175mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm
Handlebar Width 600mm 600mm 600mm 600mm
Chainstay Length 424mm 424mm 424mm 424mm
Top Tube Length (Actual) 531mm 574mm 590mm 617mm
Top Tube Length (Horizontal) 585mm 600mm 615mm 640mm
Head Tube Angle - Low Setting 71° 71° 71° 71°
Standover Height 782mm 793mm 810mm 843mm
Wheel Base 1058mm 1073mm 1089mm 1115mm
Head Tube Height 125mm 135mm 145mm 165mm
Seat Tube Angle (Actual) - Low Setting 73° 73° 73° 73°
Seat Tube Length - Center to Top 432mm 457mm 483mm 533mm
Bottom Bracket Height - Low Setting 301mm 301mm 301mm 301mm
