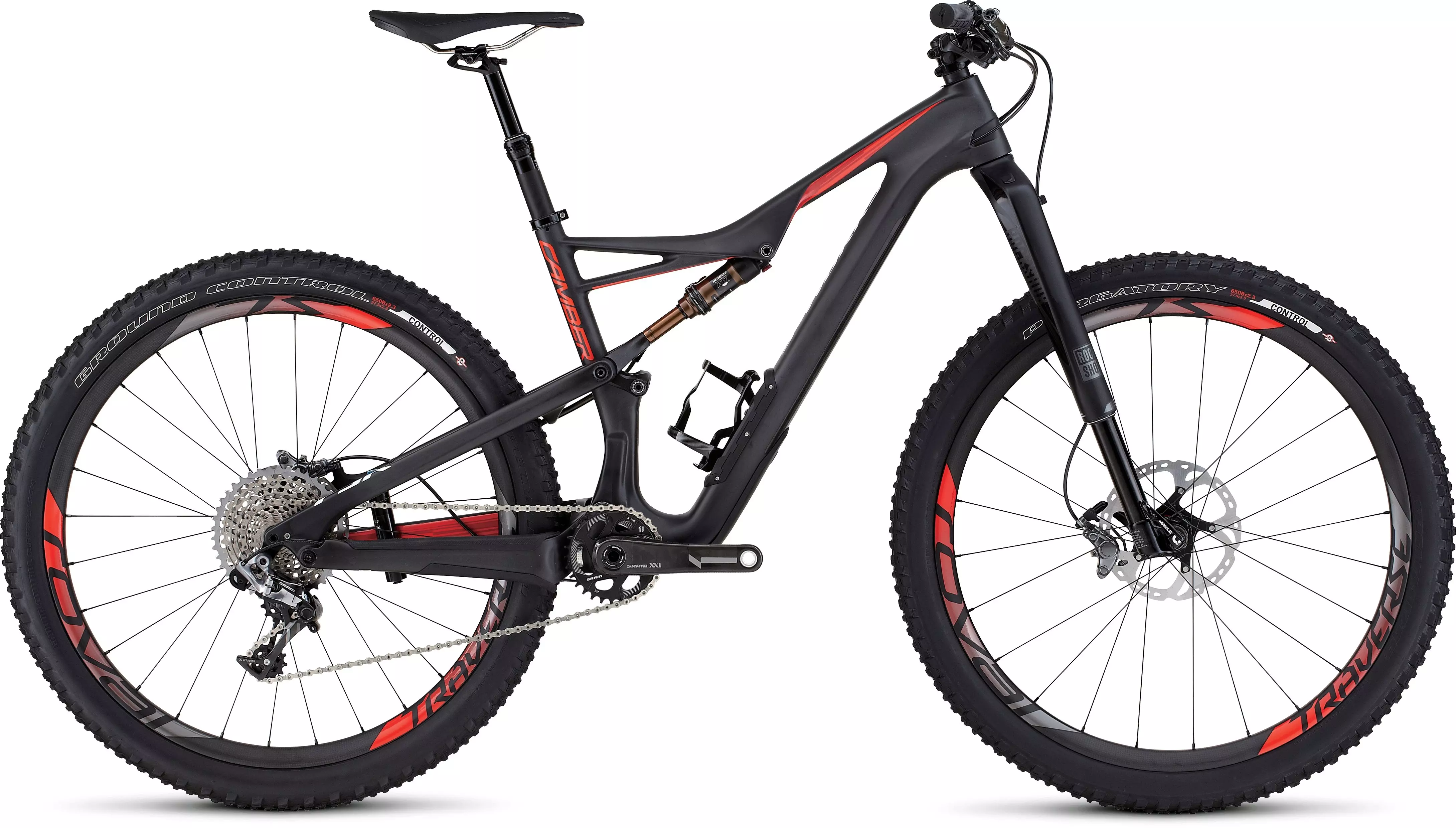

S-Works Camber 650b
$9,800.00
Part No.

S-Works Camber 650b

$9,800.00
Part No.  107067
load-spinner
S-Works Camber 650b
Overview
Technical Specifications
Geometry
Reviews
If you value playful handling and exceptional climbing prowess in a trail bike, look no further than the S-Works Camber Carbon 650b. It blends all of the trail bike characteristics that you want with the XC climbing ability that you need. This is achieved by thoughtfully combining our full FACT carbon fiber Trail Chassis with a carbon Camber FSR rear end. At both ends of the bike, you'll find that its nimble wheel size gives a little extra travel length to deliver plenty of plush suspension—all without going overboard on big hit capability. This means that you don't have to sacrifice efficiency, weight, or sheer speed to ride how you want. And with our Trail 650b Geometry and lightweight, stiff, and smooth Concentric Pivot at the rear, we can guarantee it. The other trail component of the Camber is utility, and along these lines, it features our fully integrated SWAT Door at the down tube of the frame. Open it up, and you're able to safely and securely house your ride essentials right where you want them—on the bike. For the build, we selected components like SRAM XX1, Shimano XTR brakes, and hand-built carbon wheels that hold nothing back in delivering unadulterated, supreme performance. Add it all up, and you get one agile trail bike that can quite literally do it all.
  • Command Post IRcc seatpost features up to 125mm of micro-adjust height adjustability for a more customizable position, ultimately resulting in more control and increased handling on both climbs and descents
  • Connected with our FSR Concentric Linkage, a FOX/ Specialized remote Position-Sensitive Mini-Brain rear shock features AUTOSAG for easy set up, 130mm of fine-tunable suspension, and our Spike Valve technology for enhanced performance in the corners and rough terrain. To maximize efficiency, the proprietary design allows the shock to differentiate rider input and trail bumps, so the suspension feels firm under effort and plush over rough terrain.
  • FACT 11m carbon fiber Trail Chassis w/ Camber FSR rear end has been paired with our Trail 650b Geometry to form a playful, stiff, and remarkably efficient bike that's well suited to climbing and descending over technical terrain. You'll also find fully enclosed cable routing for clean lines and minimal maintenance and an integrated SWAT Door for zero-hassle storage of your trail essentials.
  • RockShox RS-1 650b fork is arguably the most sought-after fork on the trail right now, with 130mm of convention-bucking travel. Compared to a traditional fork, its inverted design creates a carbon fiber upper that provides superior stiffness, while behaving with more sensitivity to small bumps and more control over larger hits. It also includes our Spike Valve technology that minimizes yaw in cornering, while providing maximum travel in high velocity impacts.
  • Roval Traverse SL 650b carbon wheels feature an ultra-wide design that allows for greater tire volume to increase stability and control, without sacrificing anything to climbing performance.

Technical Specifications

FRAMESET
SEAT BINDER Specialized, 7050 alloy, single bolt, 34.9mm
HEADSET 1-1/8"" upper, 1-1/2"" lower, threadless, Campy style, cartridge bearings
FRAME FACT 11m carbon, Trail 650b Geometry, FACT IS carbon construction, SWAT Door integration, internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, Brain shock mount, replaceable derailleur hanger, 130mm travel
WHEELS
FRONT HUB Roval Traverse SL, Torque Tube, 24h
REAR HUB Roval Traverse SL 142+, Torque Tube, DT Swiss Star Ratchet, 54t engagement, SRAM XX1 XD driver body, 28h
INNER TUBES Standard, Presta valve
SPOKES DT Swiss Revolution
RIMS Roval Traverse SL 650b, carbon, disc, 30mm inner width, 24/28h
FRONT TIRE Specialized Purgatory Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3""
REAR TIRE Specialized Ground Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3""
DRIVETRAIN
BOTTOM BRACKET SRAM, PF30, OS press-in bearings, sealed cartridge
CHAIN SRAM PC-XX1, 11-speed, w/ PowerLink
CRANKSET SRAM XX1, carbon, PF30, 76mm BCD spider
CASSETTE SRAM XX1, 11-speed, 10-42t
SHIFT LEVERS SRAM XX1, 11-speed, trigger
CHAINRINGS 30T
REAR DERAILLEUR SRAM XX1, 11-speed
COCKPIT
SADDLE Body Geometry Henge Expert, hollow Ti rails, 143mm
SEATPOST Command Post IRcc, cruiser control technology, micro-adjust height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, S: 100mm travel, M/L/XL: 125mm
GRIPS Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness
HANDLEBARS Specialized FACT carbon, 8-degree backsweep, 6-degree upsweep, 25mm rise, 750mm, 31.8mm
STEM Syntace F109, 6-degree rise
BRAKES
BRAKE LEVERS Shimano XTR, carbon lever, I-spec
FRONT BRAKE Shimano XTR, hydraulic disc, Ti-metallic pads, S/M: 180mm Ice-Tech rotor, L/XL: 200mm Ice-Tech rotor
REAR BRAKE Shimano XTR, hydraulic disc, Ti-metallic pads, S/M: 160mm Ice-Tech rotor, L/XL: 180mm Ice-Tech rotor
ACCESSORIES
PEDALS Nylon, CEN std., w/ toe clips
SUSPENSION
FORK RockShox RS-1 650b, Solo Air spring, 130mm travel, compression adjust, rebound adjust, Spike Valve, inverted design, 1-pc. tapered carbon crown/steerer/uppers, 46mm offset, 15mm Maxle Ultimate thru-axle
REAR SHOCK FOX/Specialized remote Position-Sensitive Mini Brain, AUTOSAG, Spike Valve, Brain Fade adjust I-Valve, Kashima coating, 205x53mm

Geometry

Geometry Chart

Camber - Geometry

S M L XL
  S M L XL
Stem Length 60mm 60mm 75mm 90mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 380mm 430mm 430mm 430mm
Handlebar Width 750mm 750mm 750mm 750mm
Reach 399mm 425mm 454mm 475mm
Stack 580mm 590mm 599mm 608mm
Wheelbase 1089mm 1119mm 1151mm 1176mm
Bike Stand-Over Height 725mm 730mm 743mm 752mm
Head-Tube Length 95mm 105mm 115mm 125mm
Front-Center 670mm 700mm 732mm 757mm
Fork Rake/Offset 42mm 42mm 42mm 42mm
Head-Tube Angle 68° 68° 68° 68°
Trail 97mm 97mm 97mm 97mm
B-B Height 329mm 329mm 329mm 329mm
Chain-Stay Length 420mm 420mm 420mm 420mm
Fork Length (full) 522mm 522mm 522mm 522mm
Seat-Tube Angle 75° 75° 75° 75°
B-B Drop 23mm 23mm 23mm 23mm
Seat-Tube Length 396mm 430mm 468mm 523mm
Top-Tube Length (horizontal) 554mm 583mm 614mm 638mm
