S-Works Camber 29
$9,250.00
Part No.

S-Works Camber 29

$9,250.00
Part No.  50736
load-spinner
S-Works Camber 29
Overview
Technical Specifications
Geometry
Reviews

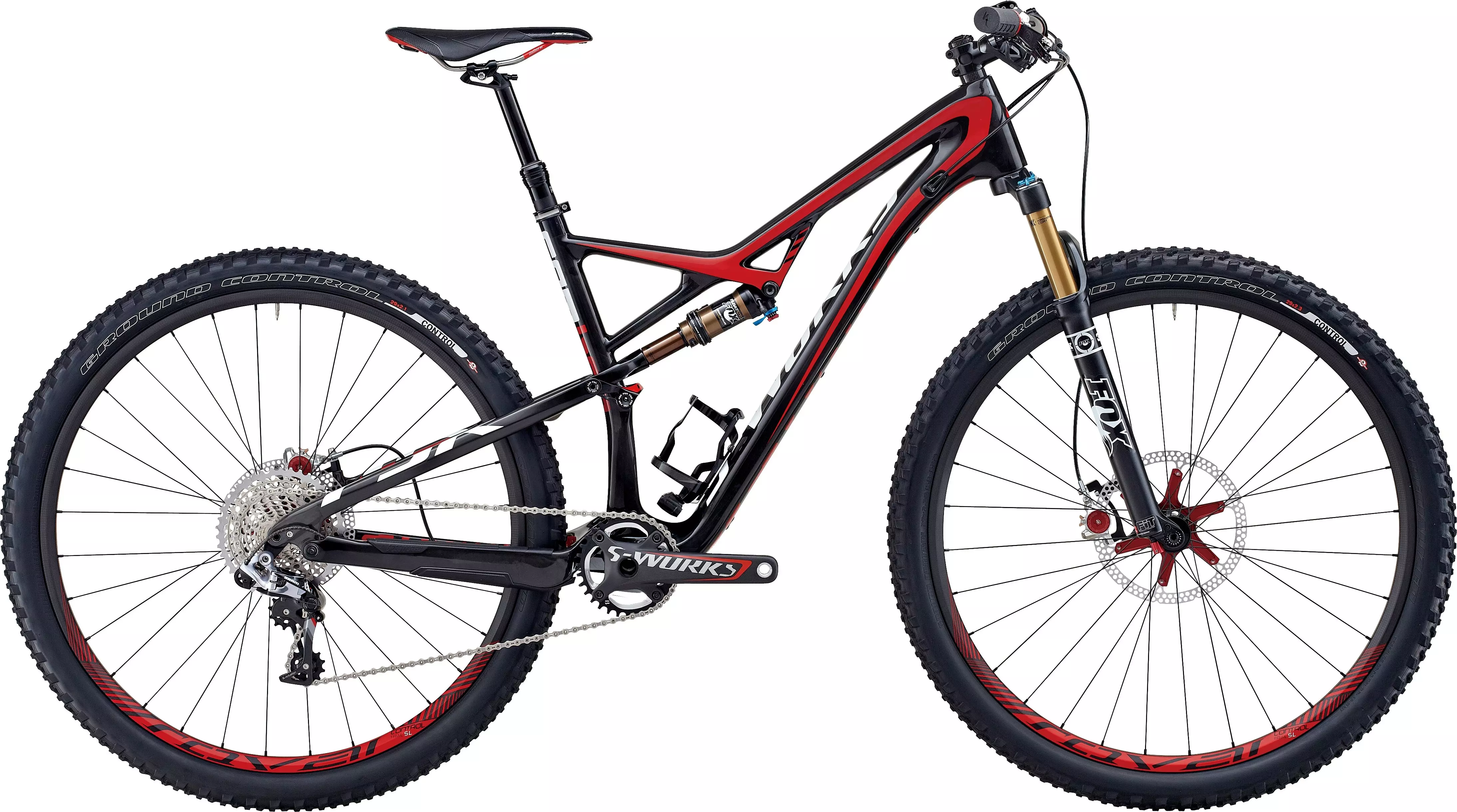

The top-shelf S-Works Camber 29 combines 110mm of plush and efficient FSR suspension with Fox Float CTD Factory Series with Kashima coated shock with a premium component package for uncompromising and versatile trail performance.
  • New FACT 11m full carbon FSR frame with 29er-specific geometry has 110mm of travel, 142+ dropouts, an all-new concentric sealed-cartridge bearing shock link and features internal cable routing for the Command Post IR to create a lightweight and responsive trail weapon
  • Custom-tuned FOX Float CTD Factory shock with Specialized proprietary AUTOSAG, Boost Valve, and Kashima coating features three compression settings: Climb, Trail and Descend
  • FOX Float CTD Factory Series 29 fork with Kashima coating, rebound and compression adjust, lockout, tapered steerer tube and 110mm of travel smooths technical terrain
  • Carbon Roval Control Trail SL 29 142+ wheelset with butted DT Swiss spokes, wider rim profile and 12mm thru-axle for lightweight toughness
  • All-new, lighter and stiffer S-Works FACT OSBB, PF30, carbon crankset with a one-piece spider/arm combo delivers the ultimate power transfer
  • Custom Formula T1 Racing brakes provide great braking power and modulation, while the Specialized Ground Control tires maintain traction and roll fast
  • SRAM's XX1 11-speed rear derailleur, shifter and cassette offer the pinnacle in high-performance shifting. The 1x11 design eliminates the front derailleur and shifter saving additional weight and maintaining a huge gear range
  • All-new, Specialized Command Post IR uses a remote lever to adjust saddle height on-the-fly to maximize climbing and descending performance

Technical Specifications

FRAMESET
SWAT Bottle cage, EMT Tool, and Top Cap Chain Tool w/ SWAT Technology
SEAT BINDER 7050 hard anodized alloy collar, single bolt, 34.9mm
HEADSET 1-1/8 and 1-1/2"" threadless, Hella Flush style upper with 1-1/2"" lower, cartridge bearings
FRAME FACT 11m carbon front triangle, 29"" geometry, FACT TM construction, full FACT rear triangle, tapered headtube, carbon PF30 BB, full internal shift/brake/post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 110mm travel
WHEELS
FRONT HUB Roval Control Trail SL 29, 15mm thru-axle end caps, 32h
REAR HUB Roval Control SL 29 142+, DT Star Ratchet, XX1 driver body, 12mm thru-axle, 32h
SPOKES DT Swiss Super Comp, 2.0/1.65/1.8 stainless
RIMS Roval Control Trail SL 29, carbon disc, 21mm internal width, 32h
FRONT TIRE Specialized Ground Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, 60TPI
REAR TIRE Specialized Ground Control, 2Bliss Ready, 29x2.1"", foldable aramid bead, 60 TPI
DRIVETRAIN
BOTTOM BRACKET PF30, OS press-in bearings, sealed cartridge
CHAIN SRAM XX1, 11-speed, hollow plates/pins, PowerLink
CRANKSET S-Works OS carbon, integrated 1-piece spider, custom SRAM XX1 chainring, S: 170mm, Others: 175mm
CASSETTE SRAM XX1, 11-speed, 10-42
SHIFT LEVERS SRAM XX1, 11-speed, carbon trigger, w/ MatchMaker clamp
CHAINRINGS 32T, 30T included
REAR DERAILLEUR SRAM XX1 Type 2, 11-speed, mid cage
COCKPIT
SADDLE Body Geometry Henge Expert, Ti rails, 143mm
SEATPOST Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, 100mm travel
GRIPS Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
HANDLEBARS Specialized XC Mini-Riser, carbon, 720mm wide, 10mm rise, 10-backsweep, 6-upsweep, 31.8mm
STEM Syntace F109, 6-degree rise, 31.8mm clamp
BRAKES
BRAKE LEVERS Custom Formula T1 Racing, hydraulic disc, carbon lever, tool-less pad contact (FCS) and reach adj., SRAM compatible MiXmaster shifter mounts
FRONT BRAKE Custom Formula T1 Racing, metallic pad, S/M: 180mm, Others: 200mm rotor
REAR BRAKE Custom Formula T1 Racing, metallic pad, S/M: 160mm, Others: 180mm rotor
SUSPENSION
FORK FOX Float Factory 29, Kashima coating, FIT damper, air spring, tapered alloy steerer, comp, lockout, and reb adj., 15mm thru-axle, 110mm travel
REAR SHOCK Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve, Kashima coating, Climb, Trail, Descend settings w/ Trail and reb adj., 197x48mm

Geometry

Geometry Chart

Camber - Geometry

S M L XL
  S M L XL
Stem Length 60mm 75mm 90mm 100mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm
Handlebar Width 720mm 720mm 720mm 720mm
Reach 400mm 428mm 445mm 466mm
Stack 591mm 600mm 624mm 647mm
Chainstay Length 450mm 450mm 450mm 450mm
Top Tube Length (Actual) 535mm 562mm 589mm 621mm
Top Tube Length (Horizontal) 555mm 587mm 612mm 642mm
Head Tube Angle - Low Setting 70° 70° 70° 70°
Standover Height 740mm 745mm 749mm 760mm
Wheel Base 1100mm 1131mm 1156mm 1186mm
Head Tube Height 90mm 100mm 125mm 150mm
Seat Tube Angle (Actual) - Low Setting 70° 70° 70° 70°
Seat Tube Length - Center to Top 394mm 430mm 468mm 523mm
Seat Tube Angle (Effective) - Low Setting 75° 74.8° 74.5° 74.2°
Bottom Bracket Height - Low Setting 335mm 335mm 335mm 335mm
