S-Works Amira Module
Part No.

S-Works Amira Module

Part No.  23091
S-Works Amira Module
Overview
Technical Specifications
Geometry
Reviews
Back To Top

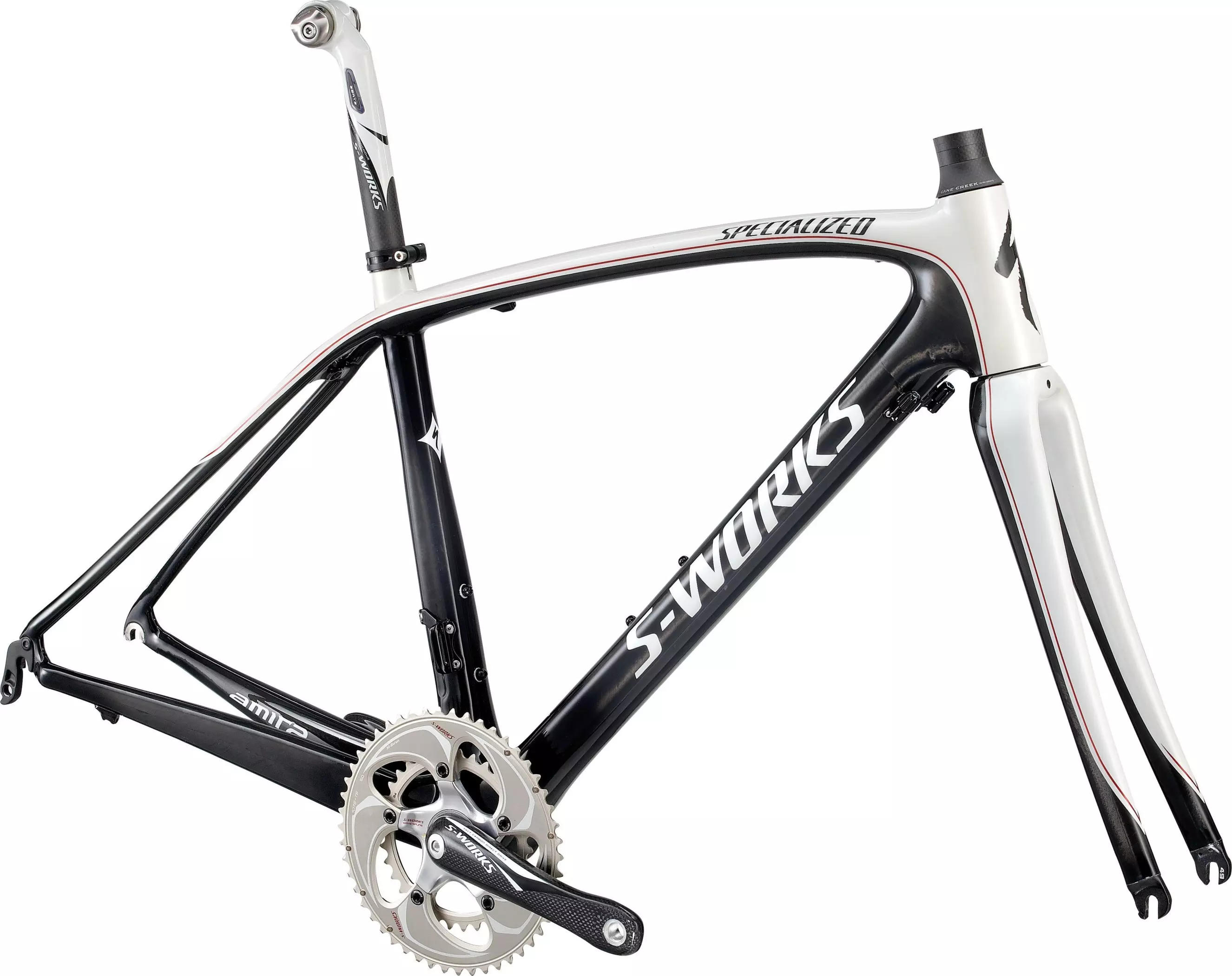

The newest and fastest women's bike goes by the name Amira. Engineered for speed, efficiency and light weight, the Amira uses advanced FACT IS construction, women's performance geometry and a stiff, oversized head tube with a taper to deliver race-ready performance like no other women's bike on the market.
  • FACT full carbon monocoque fork for strength and precision steering
  • S-Works oversized BB FACT carbon crankset combines high strength and light weight for unparalleled efficiency and power transfer
  • All-new S-Works Amira 10r carbon frame with women's-specific geometry and tubing uses advanced FACT IS construction to create the fastest women's road machine available

Technical Specifications

Technical Specifications

DRIVETRAIN
BOTTOM BRACKET Ceramic bearings
CRANKSET S-Works Crankset 50x34
CHAINRINGS 50 x 34T
COCKPIT
SEATPOST S-Works FACT carbon w/ Zertz insert, 27.2mm
FRAMESET
HEADSET 1 1/8 - 1 3/8"" Aheadset stainless balls w/ top cap, 20mm cone spacer, 20mm flat spacers
SEAT BINDER S-Works alloy, 32.6mm clamp
FORK S-Works Amira FACT carbon monocoque, 1 1/8 - 1 3/8"" tapered steerer
FRAME S-Works Amira FACT 10r carbon, FACT IS construction, compact women's race geometry
* Specifications are subject to change without notice

Geometry

Geometry Chart

Amira - Geometry

  44 48 51 54 56
Stem Length 75mm 75mm 90mm 100mm 100mm
Crank Length 167.5mm 167.5mm 170mm 170mm 172.5mm
Handle-Bar Width 380mm 380mm 400mm 400mm 420mm
Wheelbase 969mm 973mm 976mm 982mm 993mm
Seat-Tube Length, B-B Center to Top 390mm 420mm 450mm 480mm 495mm
Head-Tube Length 105mm 115mm 125mm 145mm 165mm
Top-Tube Length, Horizontal 498mm 506mm 518mm 537mm 548mm
Front-Center 576mm 579mm 582mm 588mm 595mm
Head-Tube Angle 70.5° 71.25° 72° 72° 72°
Fork Rake 51mm 51mm 49mm 49mm 49mm
Trail 66mm 62mm 59mm 59mm 59mm
Stand-Over Height 692mm 718mm 735mm 758mm 777mm
Chain-Stay Length 405mm 405mm 405mm 405mm 408mm
Seat-Tube Angle 76° 75.75° 75.5° 74° 73.5°
B-B Drop 73mm 73mm 73mm 73mm 71.5mm
Seat-Post Length 300mm 300mm 350mm 350mm 350mm
