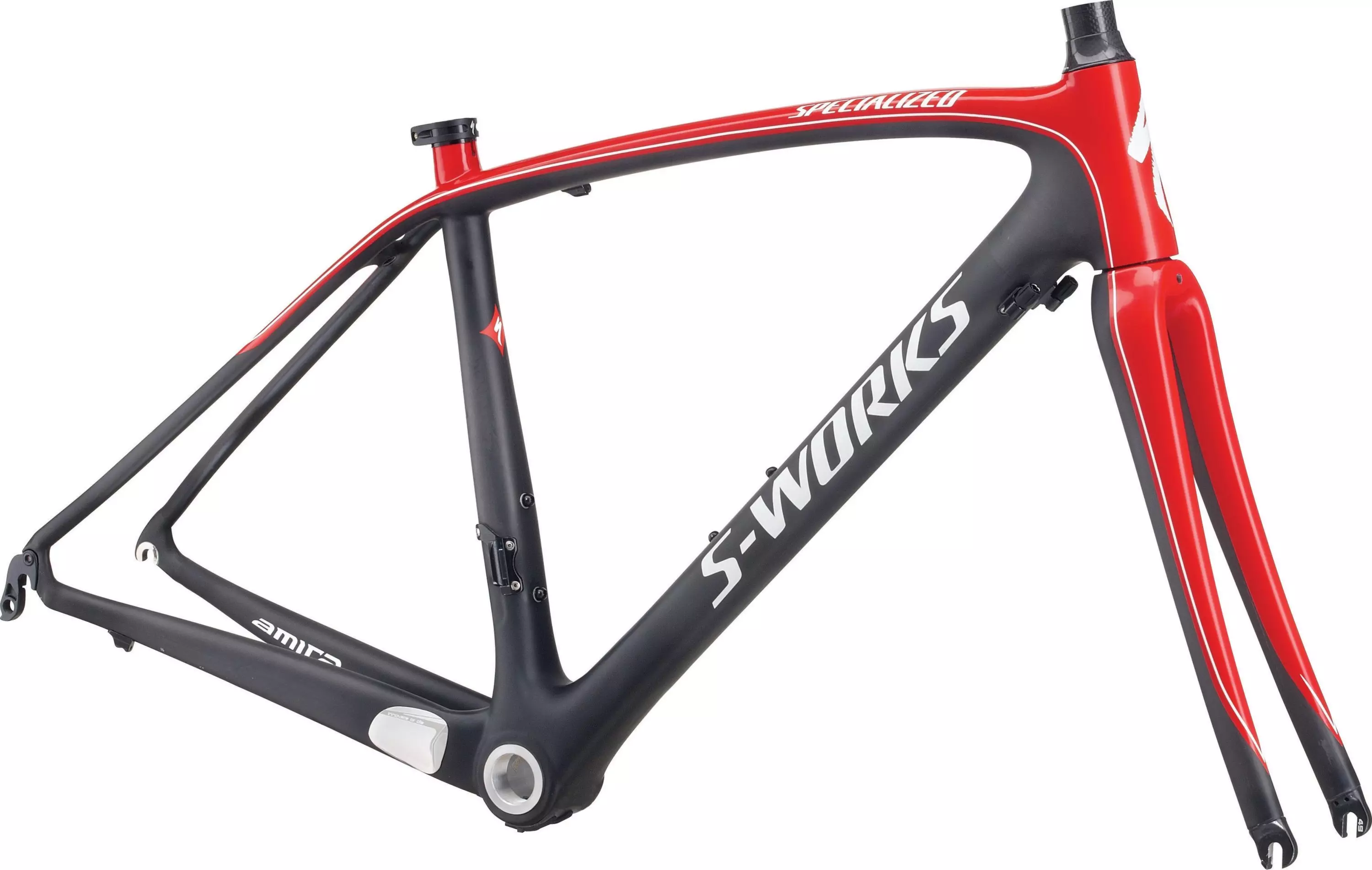

By starting with an S-Works Amira frameset, you can hand-pick every part and spec the bike to the finest detail to make the best women's performance road bike uniquely yours.
  • FACT full carbon monocoque S-Works fork with a tapered 1-1/8" to 1-3/8" headset for strength and precision steering
  • SW Amira FACT IS 10r carbon frame uses women's race-inspired geometry and carbon lay-up, with integrated, tapered head tube, to create a light, stiff and fast ride

Technical Specifications

Technical Specifications

FRAMESET
HEADSET 1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings w/ 20mm carbon cone spacer and 20mm of carbon spacers
SEAT BINDER Forged alloy, 32.6mm
FORK S-Works FACT carbon full monocoque, 1-1/8"" to 1-3/8"" tapered steerer
FRAME S-Works FACT 10r carbon, FACT IS construction, 1-1/8"" to 1-3/8"" HT, compact women's race geometry, threaded BB
* Specifications are subject to change without notice

Geometry

Geometry Chart

Amira - Geometry

  44 48 51 54 56
Wheelbase 969mm 973mm 976mm 982mm 993mm
Seat-Tube Length, B-B Center to Top 390mm 420mm 450mm 480mm 495mm
Head-Tube Length 105mm 115mm 125mm 145mm 165mm
Top-Tube Length, Horizontal 498mm 506mm 518mm 537mm 548mm
Front-Center 576mm 579mm 582mm 588mm 595mm
Head-Tube Angle 70.5° 71.25° 72° 72° 72°
Fork Rake 51mm 51mm 49mm 49mm 49mm
Trail 66mm 62mm 59mm 59mm 59mm
Stand-Over Height 692mm 718mm 735mm 758mm 777mm
Chain-Stay Length 405mm 405mm 405mm 405mm 408mm
Seat-Tube Angle 76° 75.75° 75.5° 74° 73.5°
B-B Drop 73mm 73mm 73mm 73mm 71.5mm
Seat-Post Length 0mm 0mm 0mm 0mm 0mm
