Ruby Pro

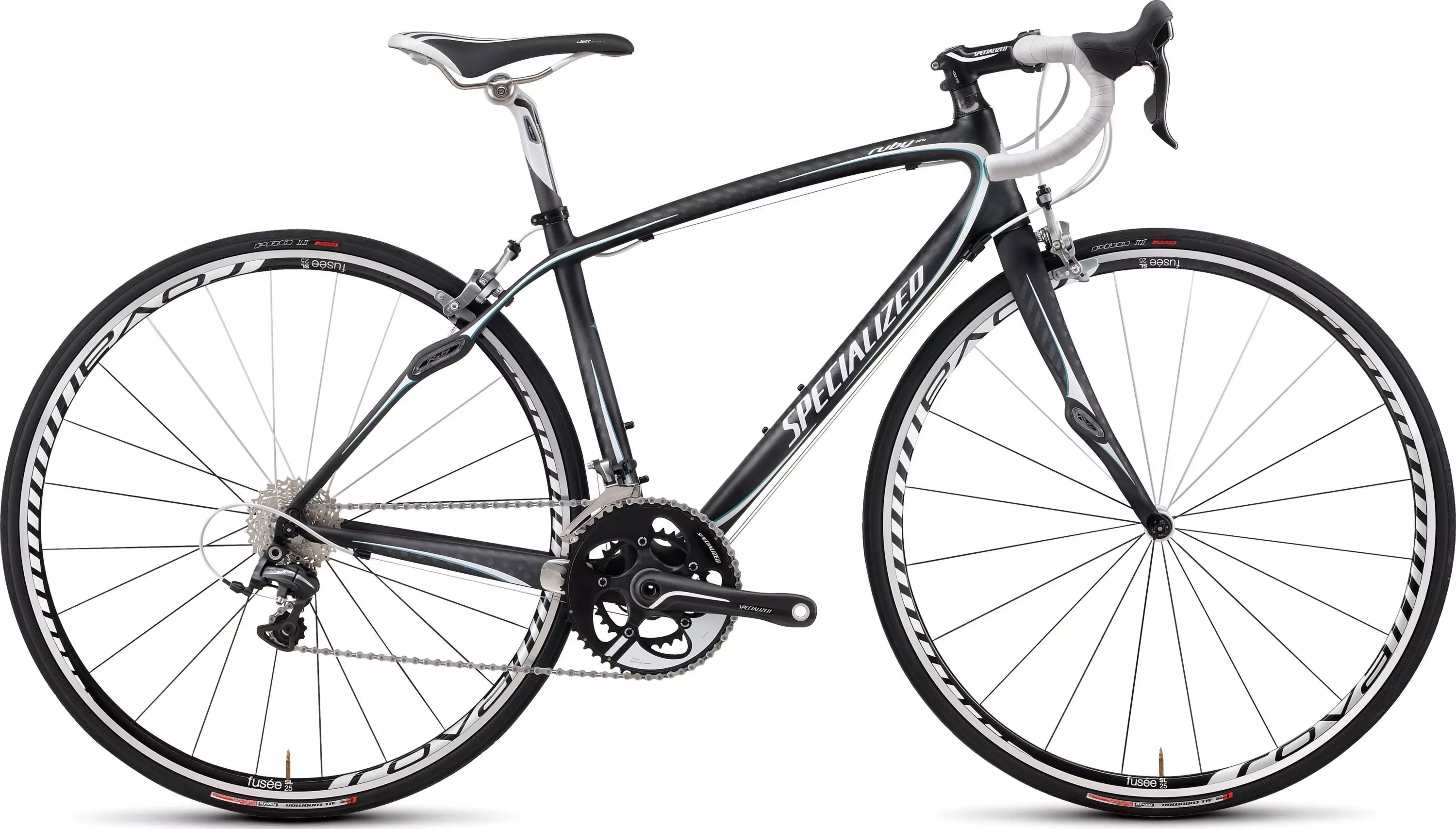

2011 Ruby Pro
Ruby Pro
Technical Specifications
COCKPIT
SEAT BINDER
Specialized, alloy, 27.2mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 44 | 48 | 51 | 54 | 57 | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 75.75° | 75.75° | 75.5° | 74° | 73.5° |
| Head-Tube Length | 120mm | 130mm | 140mm | 165mm | 190mm |
| Seat-Post Length | 300mm | 300mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 70.25° | 71.25° | 71.5° | 72° | 72° |
| Chain-Stay Length | 412mm | 415mm | 415mm | 415mm | 417mm |
| Top-Tube Length, Horizontal | 498mm | 506mm | 515mm | 532mm | 556mm |
| Front-Center | 575mm | 579mm | 585mm | 583mm | 604mm |
| Handle-Bar Width | 360mm | 380mm | 400mm | 400mm | 420mm |
| Stand-Over Height | 692mm | 714mm | 740mm | 765mm | 792mm |
| Seat-Tube Length, B-B Center to Top | 385mm | 415mm | 445mm | 480mm | 510mm |
| Fork Rake | 51mm | 51mm | 51mm | 49mm | 49mm |
| B-B Drop | 73mm | 73mm | 73mm | 73mm | 71.5mm |
| Trail | 68mm | 62mm | 60mm | 59mm | 59mm |
| Wheelbase | 976mm | 983mm | 989mm | 987mm | 1010mm |
| Crank Length | 167.5mm | 167.5mm | 170mm | 170mm | 172.5mm |
| Stem Length | 75mm | 75mm | 90mm | 100mm | 100mm |
