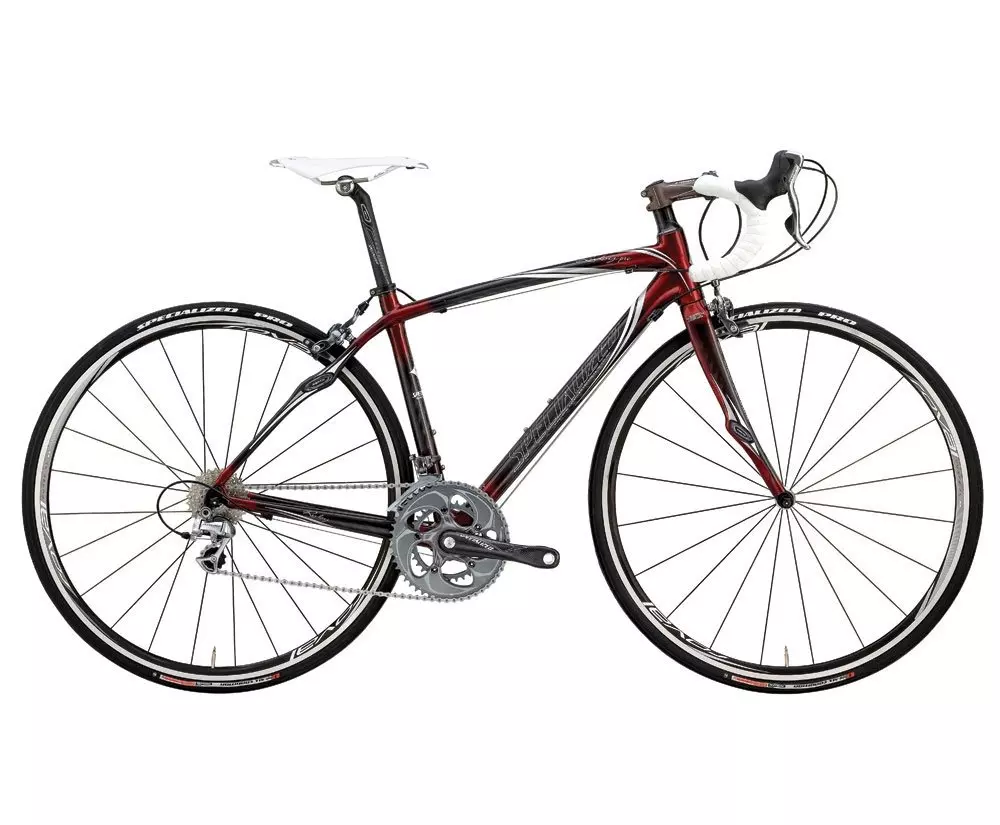

Women's Performance Road PLAY LIKE THE PROS The Ruby is a pure performance racehorse, engineered for women who like to fly. Performance optimized for speed-hungry riders and racers looking for the lightest, fastest and best fitting partner on the road, the Ruby® will satisfy your addiction for brutal climbs, thrilling descents and high mileage.

Inside Tech Specially-tuned tubing dimensions and geometry (to fit female anatomies) yields a super lightweight, smooth riding chassis of superior caliber. Not to mention, unheard of strength and stiffness-toweight ratios. You're allowed to geek out on this kind of technology!

Useful Links www.D4WGear.com FACT Carbon Roval Wheels Manuals/Tech Bulletins

  • Specialized FACT 8r carbon frame, Az1 construction, Designs for Women compact design, Zertz inserts
  • Specialized FACT monocoque carbon fork, full carbon legs, crown and steerer w/ Zertz inserts
  • Shimano Dura-Ace 10-speed STI shifters and rear derailleur, short cage
  • SRAM OG-1070 cassette, 10-speed 11-28t
  • Specialized Pro Carbon crankset, integrated oversized design
  • Roval Fusee wheelset
  • Body Geometry Ruby Women's saddle

Technical Specifications

DRIVETRAIN
CHAIN Shimano Dura-Ace, 10-speed
BOTTOM BRACKET Specialized, oversized integrated
CRANKSET Specialized Pro Carbon, integrated oversized design
FRONT DERAILLEUR Shimano Ultegra, 34.9mm clamp, bottom pull
SHIFT LEVERS Shimano Dura-Ace, 10-speed STI, flight deck compatible
CHAINRINGS 50x34T
REAR DERAILLEUR Shimano Dura-Ace, short cage
WHEELS
FRONT HUB Roval Fusee, Roval Ti QR
REAR HUB Roval Fusee, alloy cassette, Roval Ti QR
SPOKES DT Stainless 14/15g Butted Aero
FRONT TIRE Specialized All Condition Pro, 700x23c, aramid bead, 120TPI w/ Flak Jacket
RIMS Roval Fusee, E5 Alloy
REAR TIRE Specialized All Condition Pro, 700x23c, aramid bead, 120TPI w/ Flak Jacket
COCKPIT
SADDLE Body Geometry Ruby Women's, carbon reinfoced base, hollow Ti rails, microfiber cover
STEM S-Works Pro-Set stem, 31.8mm handlebar clamp, 4-position adjustable, Ti hardware
HANDLEBARS Specialized Ruby SL, FACT carbon women's handlebar, short-reach drops, ergonomic shaping, 31.8mm
BRAKES
FRONT BRAKE Shimano Ultegra
BRAKE LEVERS Shimano Dura-Ace, 10-speed STI, flight deck compatible
REAR BRAKE Shimano Ultegra
ACCESSORIES
PEDALS Composite body test ride pedals
FRAMESET
HEADSET Specialized Mindset Plus Carbon, 1 1/8"" integrated threadless, cartridge sealed bearings, carbon 20mm cone w/ one 10mm and two 5mm carbon spacers
SEAT BINDER Specialized CNC, alloy, 32.6mm clamp
FORK Specialized FACT monocoque carbon fork, full carbon legs, crown and steerer w/ Zertz inserts
FRAME Specialized FACT 8r carbon, Az1 construction, Designs for Women compact design, Zertz inserts

Geometry

Geometry Chart

- Geometry

  44 48 51 54 56
Handle-Bar Width 300mm 300mm 350mm 350mm 350mm
Reach 496mm 506mm 518mm 537mm 548mm
Stack 400mm 430mm 450mm 480mm 500mm
Wheelbase 380mm 380mm 400mm 400mm 420mm
Seat-Tube Length, B-B Center to Top 405mm 405mm 405mm 405mm 408mm
Head-Tube Length 165mm 165mm 170mm 170mm 172.5mm
Ground-Top 73mm 73mm 73mm 73mm 71.5mm
Top-Tube Length, Horizontal 76mm 75.75mm 75.5mm 74mm 73.5mm
Front-Center 105mm 115mm 125mm 145mm 165mm
Head-Tube Angle 574° 579° 582° 588° 595°
Stand-Over Height 75mm 75mm 90mm 100mm 100mm
Fork Rake 967mm 973mm 976mm 982mm 993mm
Trail 693mm 718mm 735mm 758mm 778mm
Chain-Stay Length 51mm 51mm 49mm 49mm 49mm
Seat-Tube Angle 66° 62° 59° 59° 59°
B-B Drop 70.5mm 71.25mm 72mm 72mm 72mm
