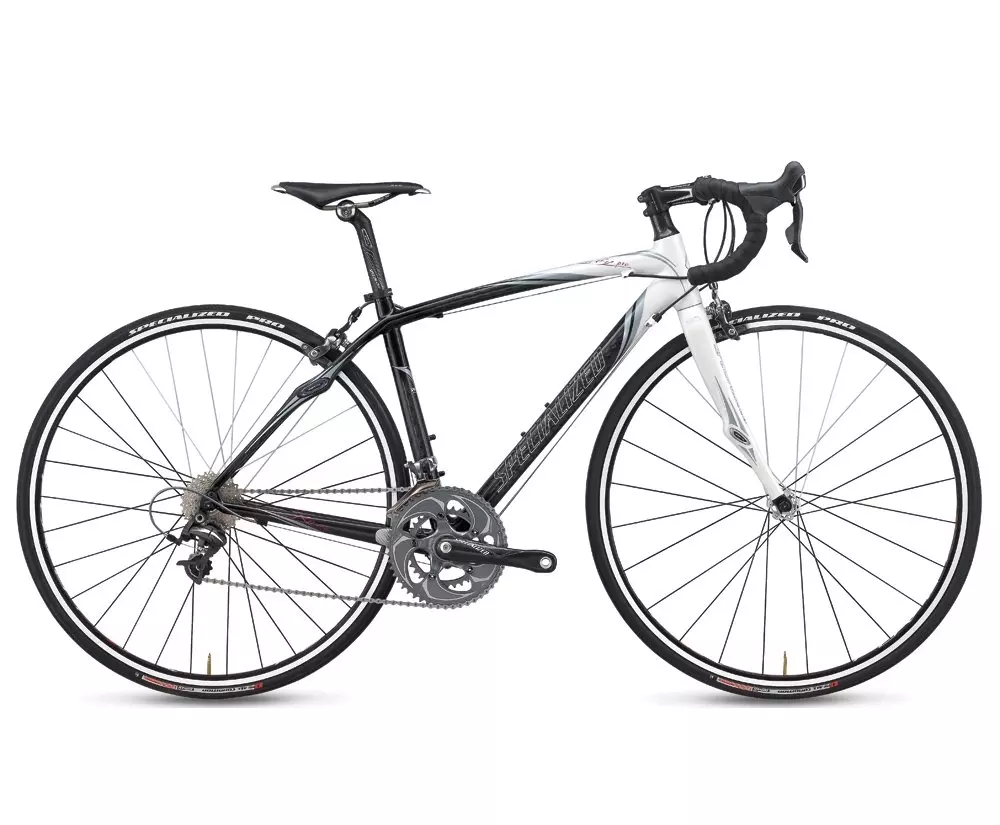

Ruby Pro Dura-Ace
Part No.

Ruby Pro Dura-Ace

Part No.
Ruby Pro Dura-Ace
Technical Specifications
Women's Performance Road Ride like hell! The Ruby is purpose-built for women who demand a ride without compromise. Utilizing the latest in proprietary Specialized FACT carbon composite technology, female cyclists now have every advantage in equipment that had historically been available to the other half of the population. Whether it's the local race circuit or long rides with fast friends, the Ruby is the perfect riding partner.
  • The Ruby Pro’s FACT 8r carbon frame uses our seamless Az1 construction, with an oversized bottom bracket for maximum strength and performance, Zertz inserts absorb energy-robbing vibrations.
  • The Specialized FACT carbon monocoque fork features Zertz inserts to soak up vibrations.
  • The 3D-forged Pro-Set stem features an oversized bar-clamp area for sure, precise steering.
  • The Ruby SL FACT carbon women’s handlebar features a short-reach drop and ergonomic shaping to seamlessly blend performance and comfort.
  • The integrated, oversized design of the Specialized FACT Pro carbon crankset ensures maximum stiffness for maximum power transfer.
  • The Body Geometry Ruby Women’s saddle features a slim, lightweight design that’s 100% race-ready, yet still comfortable and durable.
  • The Pro SL FACT carbon seatpost is light and strong, with an integrated Zertz insert to absorb energy-robbing vibrations.

Technical Specifications

CHAIN Shimano Dura-Ace, 10-speed
BOTTOM BRACKET Specialized oversize integrated
CRANKSET Specialized FACT Pro carbon, integrated oversize design
FRONT DERAILLEUR Shimano Ultegra SL, 34.9mm clamp, bottom pull
SHIFT LEVERS New Shimano Dura-Ace, 10-speed STI, flight deck compatible
CASSETTE Shimano Ultegra, 10-speed, 12-27t
REAR DERAILLEUR New Shimano Dura-Ace
FRONT HUB Roval Roubaix SL, carbon center tube w/ alloy flanges, 24h
REAR HUB Roval Roubaix SL, CNC alloy body Swiss-made internals,ratchet and cassete body, 30 hole
INNER TUBES Specialized standard presta tube
SPOKES DT Aerolite butted
FRONT TIRE Specialized All Condition Pro, 700x23c, aramid bead, 120TPI w/ Flak Jacket
RIMS Roval Roubaix SL, E5 alloy, machined sidewalls
REAR TIRE Specialized All Condition Pro, 700x23c, aramid bead, 120TPI w/ Flak Jacket
SADDLE Body Geometry Ruby Women's, carbon reinfoced base, hollow Ti rails, microfiber cover
TAPE Body Geometry Bar Phat, cork ribbon w/ 2.5mm gel padding
SEATPOST Specialized Pro SL, FACT carbon w/ Zertz insert, 27.2mm
STEM Specialized Pro-Set, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4- position adjustable
HANDLEBARS Specialized Ruby SL, FACT carbon Women's handlebar, short-reach drop, ergonomic shaping, 31.8mm
FRONT BRAKE Shimano Ultegra SL
BRAKE LEVERS New Shimano Dura-Ace, 10-speed STI, flight deck compatible
REAR BRAKE Shimano Ultegra SL
PEDALS Silver cage, black body, w/ toe clip and strap
HEADSET Specialized Campy Style, 1-1/8"" integrated threadless, sealed stainless steel cartridge bearings, 20mm carbon cone w/ one 10mm and two 5mm carbon spacers
SEAT BINDER Specialized CNC alloy, 32.6mm
FORK Specialized FACT carbon, monocoque construction, full carbon legs, crown and steerer w/ Zertz inserts
FRAME Specialized FACT 8r carbon, Az1 construction, Designs for Women compact design, Zertz Inserts, OS BB


Geometry Chart

- Geometry

  44 48 51 54 56
Handle-Bar Width 300mm 300mm 350mm 350mm 350mm
Reach 496mm 506mm 518mm 537mm 548mm
Stack 400mm 430mm 450mm 480mm 500mm
Wheelbase 380mm 380mm 400mm 400mm 420mm
Seat-Tube Length, B-B Center to Top 405mm 405mm 405mm 405mm 408mm
Head-Tube Length 165mm 165mm 170mm 170mm 172.5mm
Ground-Top 73mm 73mm 73mm 73mm 71.5mm
Top-Tube Length, Horizontal 76mm 75.75mm 75.5mm 74mm 73.5mm
Front-Center 105mm 115mm 125mm 145mm 165mm
Head-Tube Angle 574° 579° 582° 588° 595°
Stand-Over Height 75mm 75mm 90mm 100mm 100mm
Fork Rake 967mm 973mm 976mm 982mm 993mm
Trail 693mm 718mm 735mm 758mm 778mm
Chain-Stay Length 51mm 51mm 49mm 49mm 49mm
Seat-Tube Angle 66° 62° 59° 59° 59°
B-B Drop 70.5mm 71.25mm 72mm 72mm 72mm
