Ruby Comp Triple
Overview
Technical Specifications
Geometry
Reviews

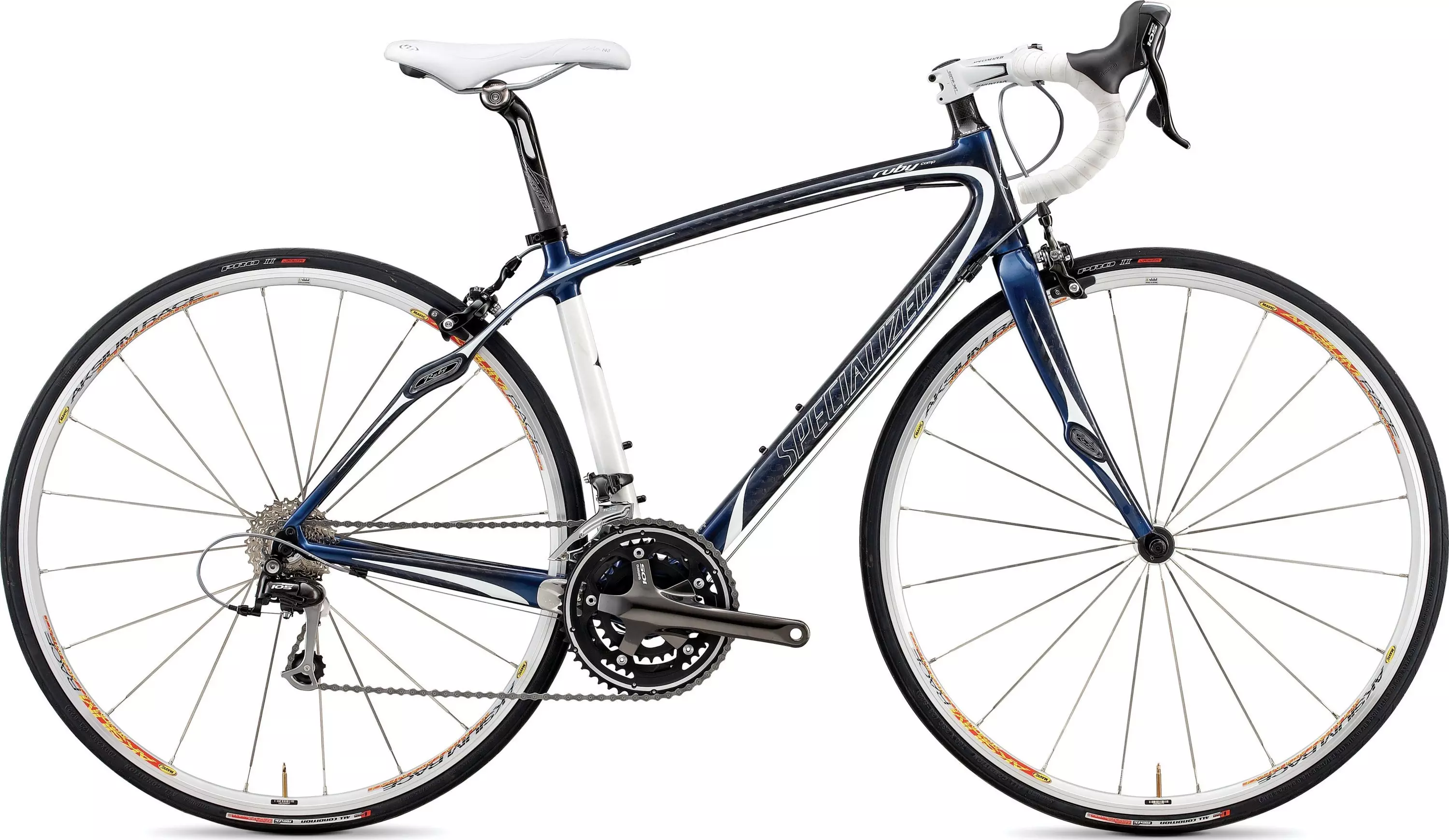

The re-designed Ruby® works hard to make the long road feel short. With true Endurance Road geometry, a women's optimized FACT carbon frame and complete synergy of compliance and stiffness, you couldn't ask for a more comfortable, stable or better performing vehicle for all your journeys on the road.
  • FACT full carbon monocoque fork with vibration-damping Zertz inserts is ultralight and durable
  • Shimano 105 triple-chainring crankset for wide-range gearing and smooth, durable shifting performance
  • Specialized Pro ergonomic handlebar with women's-specific drop for a proportional and comfortable ride
  • Body Geometry Lithia saddle features generous padding and hollow Cr-Mo rails for all-day sit bone comfort
  • Mavic Aksium wheelset with flat aero spokes dropped 140g this year for lightweight road performance and efficiency
  • FACT 7r carbon triple monocoque frame with Zertz inserts features women's-specific, endurance-focused geometry and tubing for a lightweight, compliant and proportional ride

Technical Specifications

DRIVETRAIN
CHAIN Shimano 105
BOTTOM BRACKET With Crankset
CRANKSET Shimano 105
FRONT DERAILLEUR Shimano 105
SHIFT LEVERS Shimano 105 STI, flight deck compatible
CASSETTE Shimano 105, 10-speed, 12-27t
CHAINRINGS 50 x 39 x 30T
REAR DERAILLEUR Shimano 105
WHEELS
REAR WHEEL Mavic Aksium
INNER TUBES Standard presta valve
FRONT TIRE Specialized All Condition Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
REAR TIRE Specialized All Condition Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
FRONT WHEEL Mavic Aksium
COCKPIT
SADDLE Body Geometry women's Lithia w/ hollow Cr-Mo rails
TAPE Specialized S-Wrap, cork ribbon w/ 2.5 gel pads
SEATPOST Specialized Expert, FACT carbon w/ Zertz insert, aluminum head, two-bolt clamp, 27.2mm
STEM Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS Specialized Pro women's ergo 2014 alloy
BRAKES
FRONT BRAKE Shimano 105
BRAKE LEVERS Shimano 105 STI, flight deck compatible
REAR BRAKE Shimano 105
ACCESSORIES
PEDALS Silver cage/black body, w/ black toe clips and strap
FRAMESET
HEADSET Aheadset 1 1/8"" w/ top cap, 20mm cone spacer and 20mm of flat spacers
SEAT BINDER Forged alloy, 32.6mm
FORK Ruby full carbon monocoque, w/ Zertz inserts
FRAME Specialized Ruby FACT 7r carbon, triple monocoque construction, compact women's design w/ Zertz inserts

Geometry

Geometry Chart

- Geometry

  44 48 51 54 57
Crank Length 165mm 165mm 170mm 170mm 172.5mm
Stem Length 75mm 75mm 90mm 100mm 100mm
Handle-Bar Width 380mm 380mm 400mm 400mm 420mm
Wheelbase 976mm 983mm 989mm 987mm 1010mm
Seat-Tube Length, B-B Center to Top 385mm 415mm 445mm 480mm 510mm
Head-Tube Length 120mm 130mm 140mm 165mm 190mm
Top-Tube Length, Horizontal 498mm 506mm 515mm 532mm 556mm
Front-Center 575mm 579mm 585mm 583mm 604mm
Head-Tube Angle 70.25° 71.25° 71.5° 72° 72°
Stand-Over Height 692mm 714mm 740mm 765mm 792mm
Fork Rake 51mm 51mm 51mm 49mm 49mm
Trail 68mm 62mm 60mm 59mm 59mm
Chain-Stay Length 412mm 415mm 415mm 415mm 417mm
Seat-Tube Angle 75.75° 75.75° 75.5° 74° 73.5°
B-B Drop 73mm 73mm 73mm 73mm 71.5mm
Seat-Post Length 300mm 300mm 350mm 350mm 350mm
