Ruby Comp Compact
$2,700.00
Part No.

Ruby Comp Compact

$2,700.00
Part No.  22924
load-spinner
Ruby Comp Compact
Overview
Technical Specifications
Geometry
Reviews

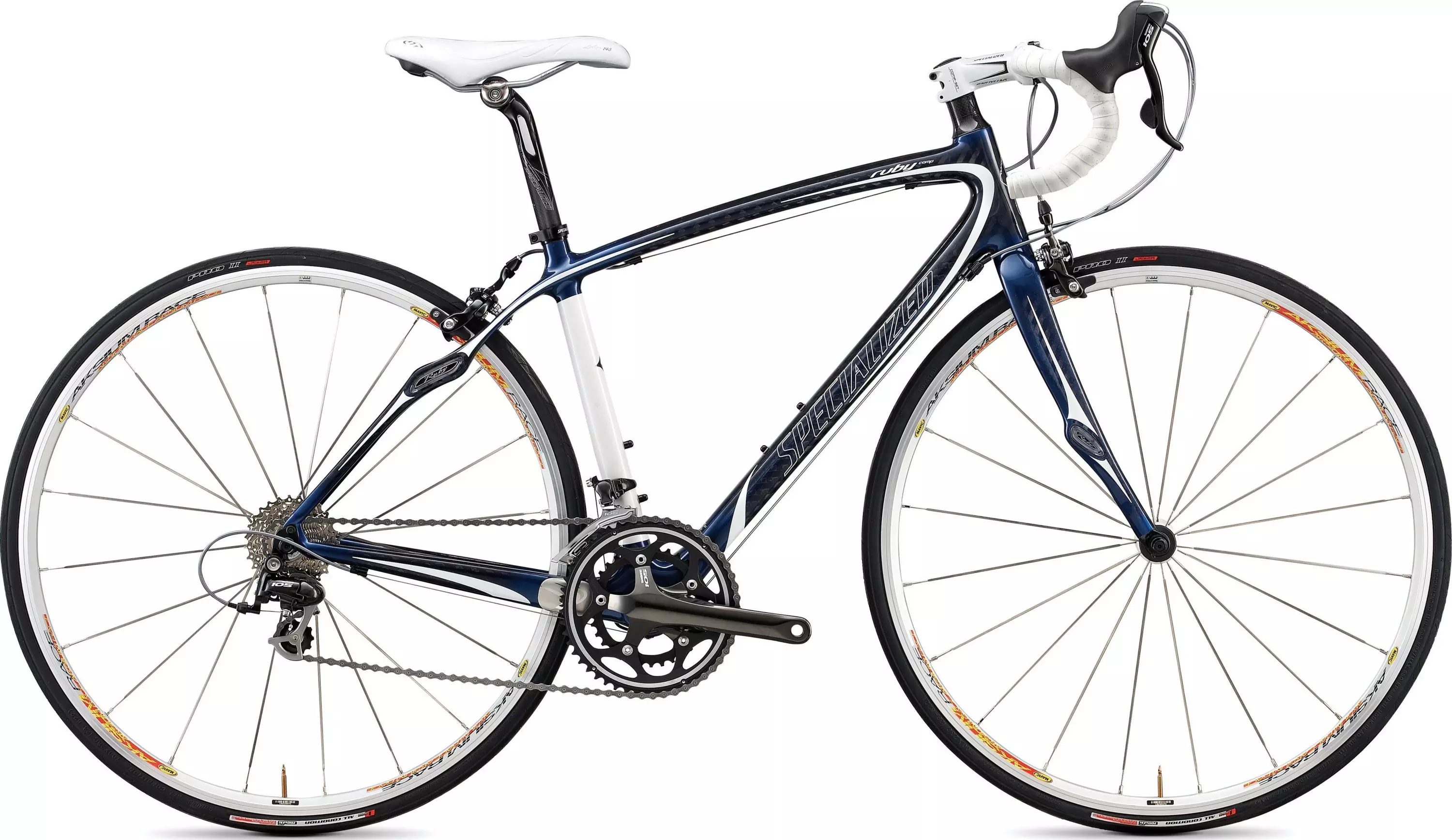

The re-designed Ruby® works hard to make the long road feel short. With true Endurance Road geometry, a women's optimized FACT carbon frame and complete synergy of compliance and stiffness, you couldn't ask for a more comfortable, stable or better performing vehicle for all your journeys on the road.
  • Shimano 105 compact crankset for efficient gearing and smooth, durable shifting performance
  • FACT full carbon monocoque fork with vibration-damping Zertz inserts is ultralight and durable
  • Specialized Pro ergonomic handlebar with women's-specific drop for a proportional and comfortable ride
  • Body Geometry Lithia saddle features generous padding and hollow Cr-Mo rails for all-day sit bone comfort
  • Mavic Aksium wheelset with flat aero spokes dropped 140g this year for lightweight road performance and efficiency
  • FACT 7r carbon triple monocoque frame with Zertz inserts features women's-specific, endurance-focused geometry and tubing for a lightweight, compliant and proportional ride

Technical Specifications

FRAMESET
SEAT BINDER Forged alloy, 32.6mm
HEADSET Aheadset 1 1/8"" w/ top cap, 20mm cone spacer and 20mm of flat spacers
FORK Ruby full carbon monocoque, w/ Zertz inserts
FRAME Specialized Ruby FACT 7r carbon, triple monocoque construction, compact women's design w/ Zertz inserts
WHEELS
REAR WHEEL Mavic Aksium
INNER TUBES Standard presta valve
FRONT TIRE Specialized All Condition Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
REAR TIRE Specialized All Condition Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
FRONT WHEEL Mavic Aksium
DRIVETRAIN
BOTTOM BRACKET With Crankset
CHAIN Shimano 105
CRANKSET Shimano 105
CASSETTE Shimano 105, 10-speed, 12-27t
SHIFT LEVERS Shimano 105 STI, flight deck compatible
FRONT DERAILLEUR Shimano 105
CHAINRINGS 50 x 34T
REAR DERAILLEUR Shimano 105
COCKPIT
SADDLE Body Geometry women's Lithia w/ hollow Cr-Mo rails
TAPE Specialized S-Wrap, cork ribbon w/ 2.5 gel pads
SEATPOST Specialized Expert, FACT carbon w/ Zertz insert, aluminum head, two-bolt clamp, 27.2mm
HANDLEBARS Specialized Pro women's ergo 2014 alloy
STEM Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
BRAKES
BRAKE LEVERS Shimano 105 STI, flight deck compatible
FRONT BRAKE Shimano 105
REAR BRAKE Shimano 105
ACCESSORIES
PEDALS Silver cage/black body, w/ black toe clips and strap

Geometry

Geometry Chart

Ruby - Geometry

  44 48 51 54 57
Stem Length 75mm 75mm 90mm 100mm 100mm
Crank Length 165mm 165mm 170mm 170mm 172.5mm
Handle-Bar Width 380mm 380mm 400mm 400mm 420mm
Wheelbase 976mm 983mm 989mm 987mm 1010mm
Seat-Tube Length, B-B Center to Top 385mm 415mm 445mm 480mm 510mm
Head-Tube Length 120mm 130mm 140mm 165mm 190mm
Top-Tube Length, Horizontal 498mm 506mm 515mm 532mm 556mm
Front-Center 575mm 579mm 585mm 583mm 604mm
Head-Tube Angle 70.25° 71.25° 71.5° 72° 72°
Fork Rake 51mm 51mm 51mm 49mm 49mm
Trail 68mm 62mm 60mm 59mm 59mm
Stand-Over Height 692mm 714mm 740mm 765mm 792mm
Chain-Stay Length 412mm 415mm 415mm 415mm 417mm
Seat-Tube Angle 75.75° 75.75° 75.5° 74° 73.5°
B-B Drop 73mm 73mm 73mm 73mm 71.5mm
Seat-Post Length 300mm 300mm 350mm 350mm 350mm
