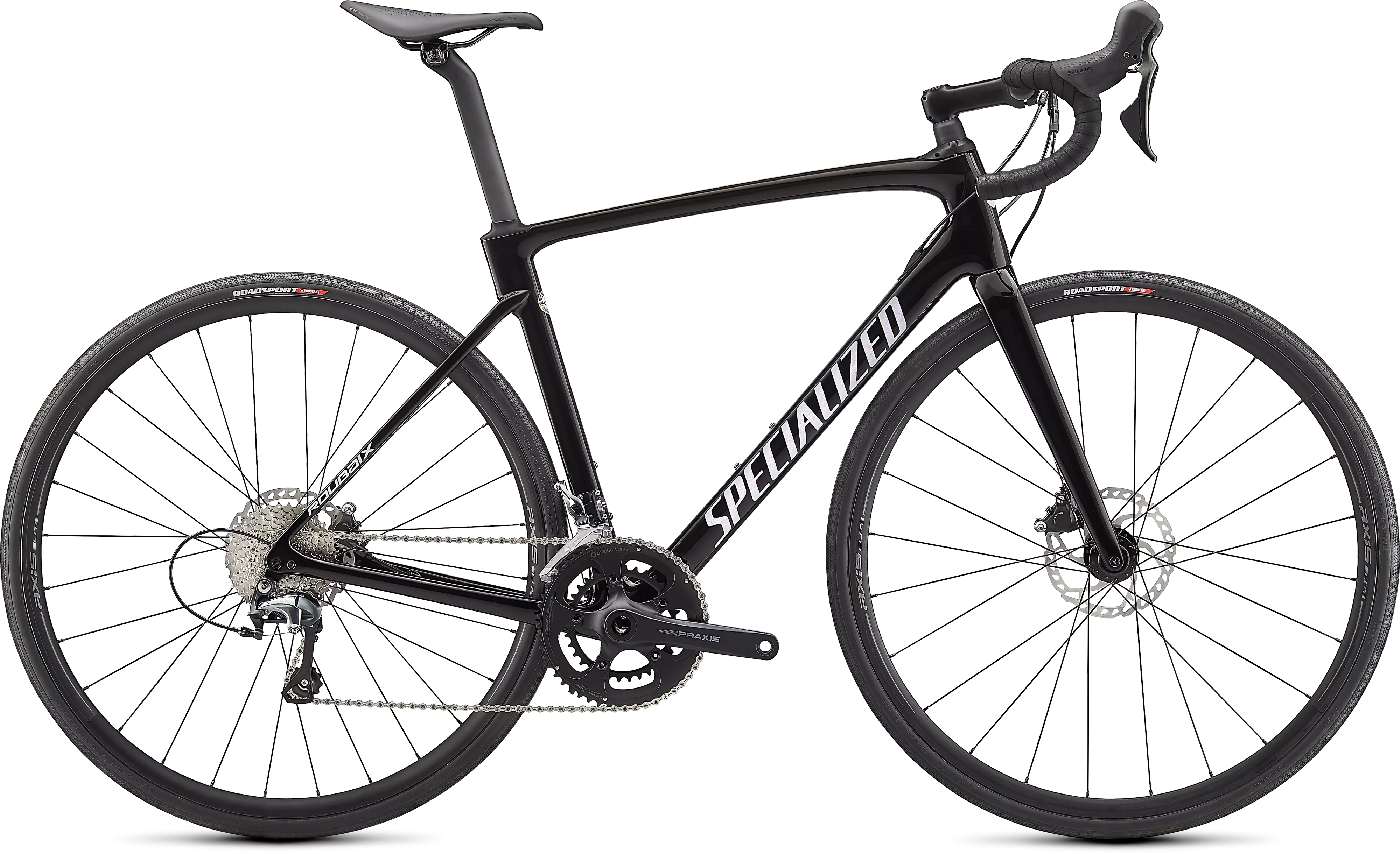

Roubaix

With seven wins at Paris-Roubaix, our Roubaix has proven that Smoother is Faster. Until this moment, however, smooth has admittedly come with some compromises. But not anymore. The all-new Roubaix now delivers compliance without compromise by introducing a radical new Future Shock 1.5 that gives you more control on rough roads, a new Pavé seatpost that creates our most balanced Roubaix to date, aerodynamics that equal the Tarmac, and a Rider-First Engineered™ frame that’s shed some serious weight. Is it still comfortable? Sure, but don’t call it a comfort bike, because performance was behind every engineering decision we made. This is the new Roubaix.

This Roubaix provides a tremendous value, but like the frame itself, this value doesn’t come with any compromises. We spec’d it with Shimano’s Tiagra 10-speed group for its crisp shifts and powerful hydraulic disc brakes, as well as reliable Axis Elite Disc wheels, a Praxis Alba crankset, the all-new S-Works Pavé seatpost, 28mm Espoir Sport tires, and our fan-favorite Power Sport saddle.

Technical Specifications

WHEELS & TIRES

Front Wheel

Axis Elite Disc

Rear Wheel

Axis Elite Disc

Front Tire

Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x28mm

Rear Tire

Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x28mm

Inner Tubes

Presta, 48mm valve

COCKPIT

Handlebars

Specialized Hover Comp, Alloy, 125mm Drop, 75mm Reach w/Di2 Hole

Saddle

Body Geometry Power Sport, steel rails

Stem

Future Stem, Comp

Tape

Roubaix S-Wrap

SeatPost

S-Works Pave

Seat Binder

Hidden drop clamp

DRIVETRAIN

Shift Levers

Shimano Tiagra hydraulic disc, ST4725

Front Derailleur

Shimano Tiagra, braze-on

Rear Derailleur

Shimano Tiagra, GS cage, 10-speed

Cassette

Shimano Tiagra, 10-speed, 11-34t

Crankset

Praxis Alba

Chainrings

50/34T

Bottom Bracket

Praxis 68mm BSA

Chain

KMC X10, 10-Speed

FORK

Fork

Future Shock 1.5 w/ Smooth Boot, 12x100mm thru-axle, flat-mount disc

FRAMESET

Frame

FACT 10R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	44	49	52	54	56	58	61
Crank Length	165mm	165mm	170mm	172.5mm	172.5mm	175mm	175mm
Handlebar Width	360mm	380mm	400mm	420mm	420mm	440mm	440mm
Stem Length	70mm	80mm	90mm	100mm	100mm	110mm	110mm
Saddle Width	155mm	155mm	155mm	143mm	143mm	143mm	143mm
Seatpost Length	380mm	380mm	380mm	380mm	380mm	380mm	450mm
Stack	540mm	555mm	570mm	585mm	605mm	630mm	665mm
Reach	353mm	363mm	368mm	376mm	384mm	392mm	398mm
Head Tube Length	90mm	100mm	112mm	125mm	143mm	170mm	205mm
Head Tube Angle	70°	71.5°	72°	72.75°	73.5°	73.5°	74°
BB Height	265mm	265mm	265mm	266mm	266mm	268mm	268mm
BB Drop	77.5mm	77.5mm	77.5mm	76mm	76mm	74.5mm	74.5mm
Trail	71mm	62mm	59mm	61mm	55mm	55mm	52mm
Fork Length, Full	370mm	370mm	370mm	370mm	370mm	370mm	370mm
Fork Rake/Offset	50mm	50mm	50mm	44mm	44mm	44mm	44mm
Front Center	580mm	581mm	586mm	585mm	592mm	607mm	618mm
Chainstay Length	413mm	413mm	413mm	415mm	415mm	418mm	418mm
Wheelbase	981mm	982mm	986mm	988mm	995mm	1014mm	1024mm
Top Tube Length, Horizontal	512mm	525mm	533mm	545mm	563mm	579mm	595mm
Bike Standover Height	682mm	715mm	743mm	762mm	783mm	805mm	844mm
Seat Tube Length	365mm	410mm	446mm	465mm	485mm	505mm	547mm
Seat Tube Angle	74°	74°	74°	74°	73.5°	73.5°	73.5°
