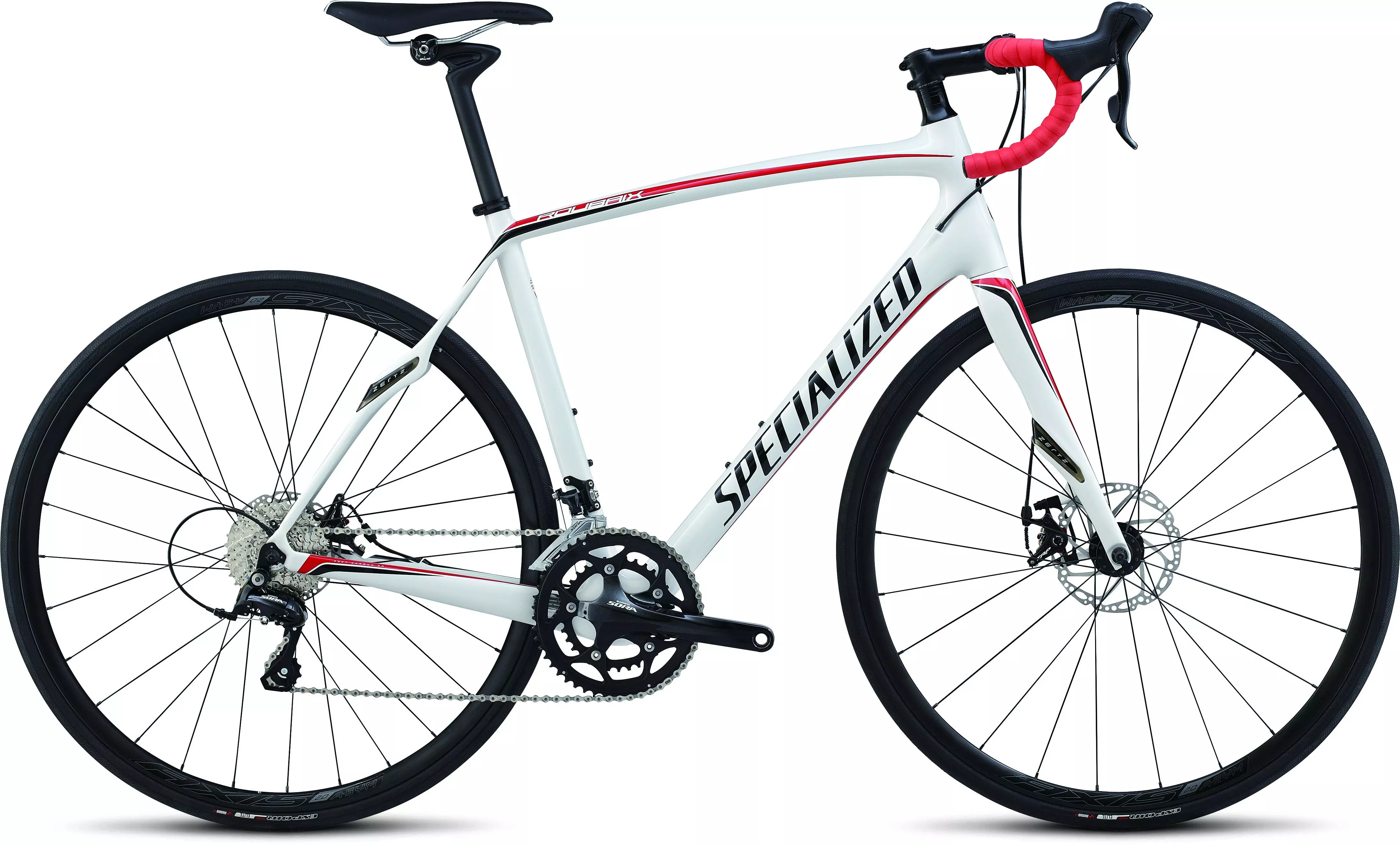

Roubaix SL4 Disc
Part No.

Roubaix SL4 Disc

Part No.  93329
load-spinner
Roubaix SL4 Disc
Overview
Technical Specifications
Geometry
Reviews
Smoother is faster. The more comfortable and less fatigued you are at the end of a 4-hour ride, the stronger you'll be. Like shocks on a race car, the Zertz vibration damping inserts on the Roubaix SL4 help absorb road impact and keep power planted firmly on the road—couple that with a FACT carbon 8r frame and it's still plenty stiff to thrash around in a sprint.
  • Espoir Elite 25c tires w/ BlackBelt protection for a smooth, fast, and confident ride
  • AXIS 2.0 Disc wheelset is lightweight with strong, reliable rims
  • Tektro Spyre, mechanical disc brakes for excellent, all-conditions braking performance
  • Shimano Sora compact crankset for lightweight, wide-range gearing
  • Ultra-light Body Geometry Toupé Sport saddle conforms to your body for optimum fit
  • Lightweight and efficient, FACT carbon CG-R seatpost w/ Zertz vibration damping
  • Shimano Sora rear derailleur ensures you never miss a critical shift

Technical Specifications

DRIVETRAIN
CHAIN KMC X9, 9-speed, reusable Missing Link
CRANKSET Shimano Sora, 50/34
FRONT DERAILLEUR Shimano Sora, braze-on
SHIFT LEVERS Shimano Sora STI
CASSETTE Shimano HG-50, 9-speed, 11-32
REAR DERAILLEUR Shimano Sora
COCKPIT
SADDLE Body Geometry Toupé Sport, hollow Cr-Mo rails, 143mm
TAPE Specialized Roubaix, w/ 2.5mm gel pads
SEATPOST Specialized CG-R, FACT carbon, single bolt, 27.2mm
STEM Specialized Comp Multi, 3D forged alloy, 4-bolt, 12-degree rise
HANDLEBARS Specialized Comp, shallow drop, 6061 alloy, 125mm drop, 70mm reach
WHEELS
REAR WHEEL AXIS 2.0 Disc SCS
INNER TUBES Standard, presta valve
FRONT TIRE Specialized Espoir Elite, 60TPI, folding bead, double BlackBelt protection, 700x25c
REAR TIRE Specialized Espoir Elite, 60TPI, folding bead, double BlackBelt protection, 700x25c
FRONT WHEEL AXIS 2.0 Disc SCS
BRAKES
FRONT BRAKE Tektro Spyre, mechanical disc, dual pivot
REAR BRAKE Tektro Spyre, mechanical disc, dual pivot
ACCESSORIES
PEDALS Nylon flat test ride, loose-ball, w/ reflectors
FRAMESET
HEADSET 1-1/8"" upper, 1-3/8"" lower, Cr-Mo cartridge bearings, 20mm cone spacer, w/ 20mm of spacers
SEAT BINDER Alloy, 32.6mm
FORK Specialized FACT carbon, disc
FRAME Specialized SL4 FACT 8r carbon, 1-1/8"" to 1-3/8"" headtube, compact race design, Zertz, internal rear brake cable, OSBB

Geometry

Geometry Chart

Roubaix - Geometry

  49 52 54 56 58 61
Stem Length 75mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 170mm 175mm 175mm 175mm
Handle-Bar Width 400mm 420mm 420mm 420mm 440mm 440mm
Reach 378mm 379mm 380mm 387mm 392mm 398mm
Wheelbase 983mm 989mm 1000mm 1010mm 1029mm 1038mm
Stack 527mm 546mm 563mm 589mm 621mm 642mm
Seat-Tube Length, B-B Center to Top 445mm 475mm 495mm 515mm 540mm 565mm
Head-Tube Length 125mm 145mm 165mm 190mm 225mm 245mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 582mm 588mm 595mm 606mm 621mm 628mm
Head-Tube Angle 72° 72° 72° 72.5° 72.5° 73°
Fork Rake 49mm 49mm 49mm 49mm 49mm 49mm
Trail 59mm 59mm 59mm 56mm 56mm 53mm
Stand-Over Height 730mm 756mm 776mm 798mm 829mm 851mm
Chain-Stay Length 412mm 412mm 415mm 415mm 418mm 420mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 73mm 73mm 71.5mm 71.5mm 70mm 70mm
Seat-Post Length 300mm 300mm 350mm 350mm 350mm 350mm
