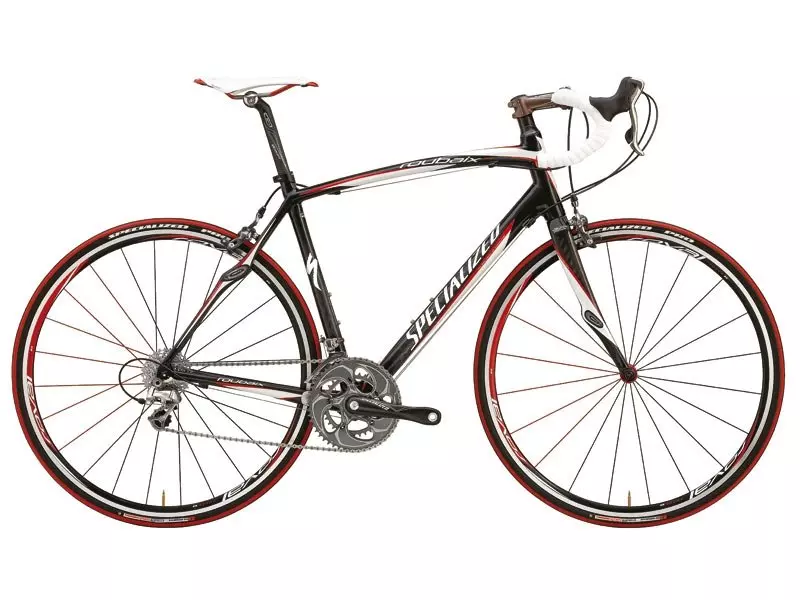

Roubaix Pro
Part No.

Roubaix Pro

Part No.
load-spinner
Roubaix Pro
Overview
Technical Specifications
Geometry
Reviews
Performance Endurance Road FROM THE SPRING CLASSICS TO YOUR LOCAL CENTURY The Roubaix pioneered the endurance road category and is still the best bike for riding longer and faster.

Inside Tech You can't beat this system. The Roubaix Pro features a proprietary FACT carbon crank and bottom bracket system that, because it was designed as an integrated part of the Roubaix chassis, cuts weight (an amazing 148 grams) while boosting pedaling efficiency.

Useful Links FACT Carbon Roval Wheels Manuals/Tech Bulletins

  • Specialized FACT 8r carbon, Az1 construction, compact design, Zertz inserts
  • Specialized FACT monocoque carbon fork, full carbon legs, crown and steerer w/ Zertz inserts
  • Pro-Set stem and S-Works SL FACT carbon aero handlebar, short-reach drop, 31.8mm clamp
  • Shimano Dura-Ace, 10-speed STI shifters and rear derailleur
  • Specialized FACT carbon crankset
  • Roval Fusee wheelset
  • Specialized Roubaix Pro tires
  • Body Geometry Toupé Gel saddle

Technical Specifications

DRIVETRAIN
CHAIN Shimano Dura-Ace, 10-speed
BOTTOM BRACKET Specialized, oversized integrated
CRANKSET Specialized FACT carbon crankset, integrated oversize design
FRONT DERAILLEUR Shimano Ultegra, 34.9mm clamp, bottom pull
SHIFT LEVERS Shimano Dura-Ace, 10-speed STI, flight deck compatible
CHAINRINGS 50x34T
REAR DERAILLEUR Shimano Dura-Ace, short cage
WHEELS
FRONT HUB Roval Fusee, Roval Ti QR
REAR HUB Roval Fusee, alloy cassette, Roval Ti QR
SPOKES DT Stainless 14/15g Butted Aero
FRONT TIRE Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI, Flak Jacket
RIMS Roval Fusee, E5 Alloy
REAR TIRE Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI, Flak Jacket
COCKPIT
SADDLE Body Geometry Toupé Gel, super light foam, carbon reinforced base, hollow Ti rails, microfiber cover
STEM Pro-Set stem, 31.8mm handlebar clamp, 4-position adjustable, Ti hardware
HANDLEBARS S-Works SL, FACT carbon aero handlebar, short-reach drop, 31.8mm clamp
BRAKES
FRONT BRAKE Shimano Ultegra
BRAKE LEVERS Shimano Dura-Ace, 10-speed STI, flight deck compatible
REAR BRAKE Shimano Ultegra
ACCESSORIES
PEDALS Composite body test ride pedals
FRAMESET
HEADSET Specialized Mindset Plus Carbon, 1 1/8"" integrated threadless, cartridge sealed bearings, carbon 20mm cone w/ one 10mm and two 5mm carbon spacers
SEAT BINDER Specialized CNC, alloy, 32.6mm clamp
FORK Specialized FACT monocoque carbon fork, full carbon legs, crown and steerer w/ Zertz inserts
FRAME Specialized FACT 8r carbon, Az1 construction, compact design, Zertz inserts

Geometry

Geometry Chart

- Geometry

  49 52 54 56 58 61 64
Handle-Bar Width 300mm 350mm 350mm 350mm 350mm 350mm 350mm
Reach 518mm 537mm 548mm 565mm 582mm 600mm 615mm
Stack 450mm 480mm 500mm 520mm 540mm 570mm 600mm
Wheelbase 400mm 400mm 420mm 420mm 440mm 440mm 440mm
Seat-Tube Length, B-B Center to Top 412mm 412mm 415mm 415mm 418mm 420mm 420mm
Head-Tube Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm 175mm
Ground-Top 73mm 73mm 71.5mm 71.5mm 70mm 70mm 70mm
Top-Tube Length, Horizontal 74mm 75.5mm 73.5mm 73.25mm 72.5mm 73mm 72.5mm
Front-Center 125mm 145mm 165mm 190mm 215mm 235mm 260mm
Head-Tube Angle 582° 588° 595° 606° 621° 628° 643°
Stand-Over Height 75mm 90mm 100mm 100mm 110mm 120mm 130mm
Fork Rake 983mm 989mm 1000mm 1010mm 1029mm 1038mm 1053mm
Trail 718mm 737mm 757mm 780mm 801mm 825mm 853mm
Chain-Stay Length 49mm 49mm 49mm 49mm 49mm 49mm 49mm
Seat-Tube Angle 59° 59° 59° 56° 53° 56° 53°
B-B Drop 72mm 72mm 72mm 72.5mm 72.5mm 73mm 73mm
