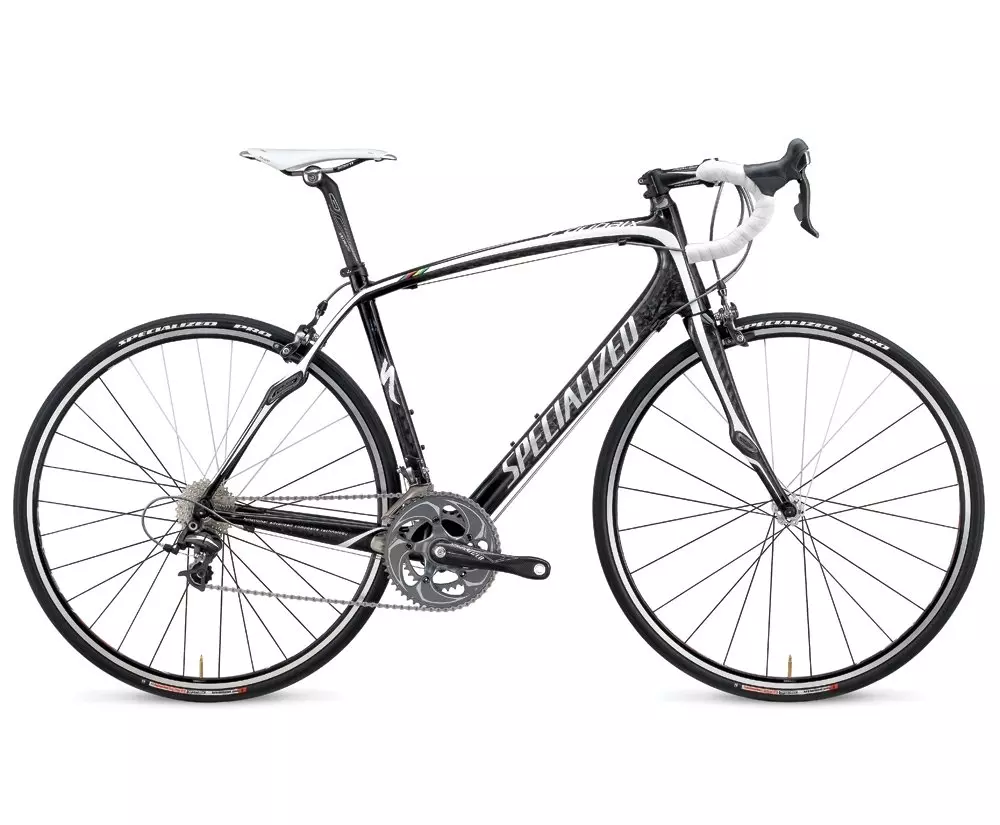

Roubaix Pro SL Dura-Ace
$5,500.00
Part No.

Roubaix Pro SL Dura-Ace

$5,500.00
Part No.  22534
load-spinner
Roubaix Pro SL Dura-Ace
Overview
Technical Specifications
Geometry
Reviews
SERIOUSLY SMOOTH AND SERIOUSLY FAST. When the new Roubaix isn't silencing the cobbles and stealing the podium of races by the same name, it's busy turning your next 100 miles in to the "Big Easy."
  • The Roubaix Pro SL C2 Dura-Ace is made with FACT 9r carbon using our new FACT IS construction, with an oversized threaded BB and speed-oriented design, this frame is all about minimal weight and all-day-comfortable speed.
  • The Specialized FACT carbon monocoque fork is full carbon—legs, crown, steerer—and features an oversized lower bearing race for precision and strength, Zertz inserts soak up the chatter.
  • The 4-position forged alloy Pro-Set stem (with oversized bar-clamp area) makes the connection between bar and stem seem like a stiff-yet-adjustable work of art.
  • The S-Works SL FACT carbon handlebar is light, strong, and comfortable, the short-reach drop keeps your hands right where you want them.
  • The Roubaix Pro SL C2 Dura-Ace features the redesigned top-of-Shimano’s-line Dura Ace, for the ultimate 10-speed shifting performance with minimal weight.
  • The comfortable and scientifically proven Body Geometry Toupé Gel saddle features a carbon-reinforced base for stiffness and hollow Ti rails for minimum weight.
  • The Zertz insert in the Specialized Pro SL FACT carbon seatpost soaks up vibrations without wasting your energy.

Technical Specifications

FRAMESET
SEAT BINDER Specialized CNC alloy, 32.6mm
HEADSET Specialized Campy style, 1-3/8"" lower bearing, integrated threadless, stainless steel sealed cartridge bearings, 20mm carbon cone w/ one 10mm and two 5mm carbon spacers
FORK Specialized FACT carbon, monocoque construction, OS race for 1-3/8"" bearing, full carbon legs, crown and steerer w/ Zertz inserts.
FRAME Specialized FACT 9r carbon, FACT IS construction, compact race design, Zertz inserts, OS BB
WHEELS
FRONT HUB Roval Roubaix SL, carbon center tube w/ alloy flanges, 24h
REAR HUB Roval Roubaix SL, CNC alloy body Swiss-made internals,ratchet and cassete body, 30 hole
INNER TUBES Specialized standard presta tube
SPOKES DT Aerolite butted
RIMS Roval Roubaix SL, E5 alloy, machined sidewalls
FRONT TIRE Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI
REAR TIRE Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI
DRIVETRAIN
BOTTOM BRACKET Specialized oversize integrated
CHAIN Shimano Dura-Ace, 10-speed
CRANKSET Specialized FACT Pro carbon, integrated oversize design
CASSETTE Shimano Ultegra, 10-speed, 12-27t
SHIFT LEVERS New Shimano Dura-Ace, 10-speed STI, flight deck compatible
FRONT DERAILLEUR Shimano Dura-Ace, braze-on clamp
CHAINRINGS 50x34T
REAR DERAILLEUR New Shimano Dura-Ace
COCKPIT
SADDLE Body Geometry Toupé Gel, carbon reinforced base, hollow Ti rails
TAPE Body Geometry Bar Phat, cork ribbon w/ 2.5mm gel padding
SEATPOST Specialized Pro SL, FACT carbon w/ Zertz insert, 27.2mm
HANDLEBARS S-Works SL, FACT carbon handlebar, short-reach drop, 31.8mm
STEM Specialized Pro-Set, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4- position adjustable
BRAKES
BRAKE LEVERS New Shimano Dura-Ace, 10-speed STI, flight deck compatible
FRONT BRAKE Shimano Ultegra SL
REAR BRAKE Shimano Ultegra SL
ACCESSORIES
PEDALS Silver cage, black body, w/ toe clip and strap

Geometry

Geometry Chart

Roubaix - Geometry

  52 54 56 58
Handle-Bar Width 0mm 0mm 0mm 0mm
Reach 518mm 548mm 565mm 600mm
Stack 475mm 495mm 515mm 540mm
Seat-Tube Length, B-B Center to Top 412mm 415mm 415mm 418mm
Ground-Top 73mm 71.5mm 71.5mm 70mm
Top-Tube Length, Horizontal 74mm 73.5mm 73.25mm 73mm
Front-Center 125mm 165mm 190mm 225mm
Head-Tube Angle 582° 595° 606° 621°
Fork Rake 983mm 1000mm 1010mm 1038mm
Trail 737mm 780mm 801mm 849mm
Chain-Stay Length 49mm 49mm 49mm 49mm
Seat-Tube Angle 59° 59° 56° 53°
B-B Drop 72mm 72mm 72.5mm 72.5mm
