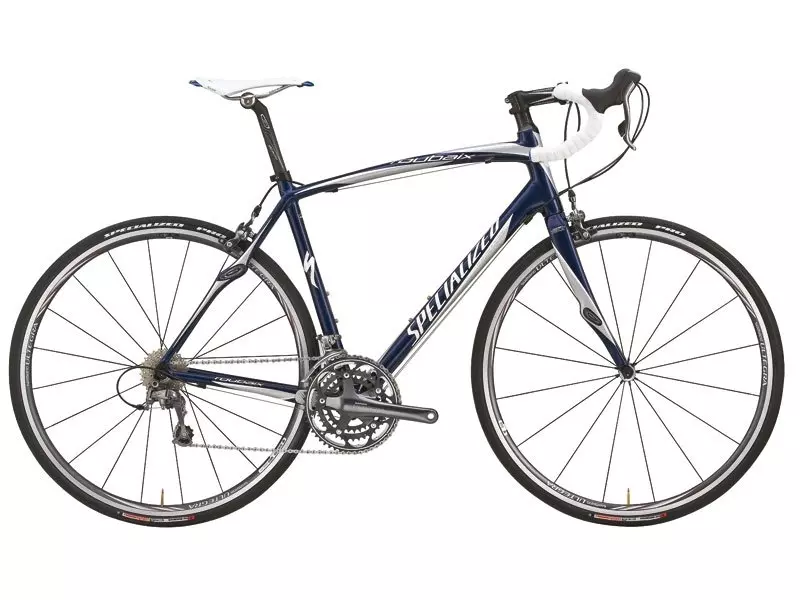

Roubaix Expert Triple
Inside Tech You can't beat this system. The Roubaix Pro features a proprietary FACT carbon crank and bottom bracket system that, because it was designed as an integrated part of the Roubaix chassis, cuts weight (an amazing 148 grams) while boosting pedaling efficiency.
Useful Links FACT Carbon Manuals/Tech Bulletins
FRAME
Specialized FACT 8r carbon, Az1 construction, compact design, Zertz inserts
FORK
Specialized FACT monocoque carbon fork, full carbon legs, crown and steerer w/ Zertz inserts
HEADSET
Specialized Mindset Plus Carbon, 1 1/8"" integrated threadless, cartridge sealed bearings, carbon 20mm cone w/ one 10mm and two 5mm carbon spacers
SEAT BINDER
Specialized CNC, alloy, 32.6mm clamp
RIMS
Shimano Ultegra
FRONT HUB
Shimano Ultegra, QR
REAR HUB
Shimano Ultegra, alloy cassette, QR
SPOKES
Stainless 14g aero
FRONT TIRE
Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI, Flak Jacket
REAR TIRE
Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI, Flak Jacket
FRONT DERAILLEUR
Shimano Ultegra, 34.9mm clamp, bottom pull
REAR DERAILLEUR
Shimano Ultegra, long cage
SHIFT LEVERS
Shimano Ultegra, 10-speed STI, flight deck compatible
CHAIN
Shimano Ultegra, 10-speed
CRANKSET
Shimano Ultegra, Hollowtech II 2-piece crankset
CHAINRINGS
52x39x30T
BOTTOM BRACKET
Shimano Ultegra, Hollowtech II
STEM
Specialized Pro-Set lightweight stem, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4-position adjustable
HANDLEBARS
Specialized Zertz Pro, 2014 alloy, Zertz damper, short-reach drop, ergonomic top shaping, 31.8mm
SADDLE
Specialized Toupé Gel, super light foam, carbon reinforced base, microfiber cover
FRONT BRAKE
Shimano Ultegra
REAR BRAKE
Shimano Ultegra
BRAKE LEVERS
Shimano Ultegra, 10-speed STI, flight deck compatible
PEDALS
Composite body test ride pedals
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
49 | 52 | 54 | 56 | 58 | 61 | 64 | |
---|---|---|---|---|---|---|---|
Ground-Top | 73mm | 73mm | 71.5mm | 71.5mm | 70mm | 70mm | 70mm |
Seat-Tube Angle | 59° | 59° | 59° | 56° | 53° | 56° | 53° |
Head-Tube Angle | 582° | 588° | 595° | 606° | 621° | 628° | 643° |
Chain-Stay Length | 49mm | 49mm | 49mm | 49mm | 49mm | 49mm | 49mm |
Top-Tube Length, Horizontal | 74mm | 75.5mm | 73.5mm | 73.25mm | 72.5mm | 73mm | 72.5mm |
Front-Center | 125mm | 145mm | 165mm | 190mm | 225mm | 245mm | 260mm |
Handle-Bar Width | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm |
Seat-Tube Length, B-B Center to Top | 412mm | 412mm | 415mm | 415mm | 418mm | 420mm | 420mm |
Fork Rake | 983mm | 989mm | 1000mm | 1010mm | 1029mm | 1038mm | 1053mm |
B-B Drop | 72mm | 72mm | 72mm | 72.5mm | 72.5mm | 73mm | 73mm |
Stack | 455mm | 485mm | 505mm | 525mm | 545mm | 575mm | 600mm |
Reach | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm | 615mm |
Trail | 737mm | 759mm | 780mm | 801mm | 824mm | 849mm | 875mm |
