Roubaix Elite

Icon

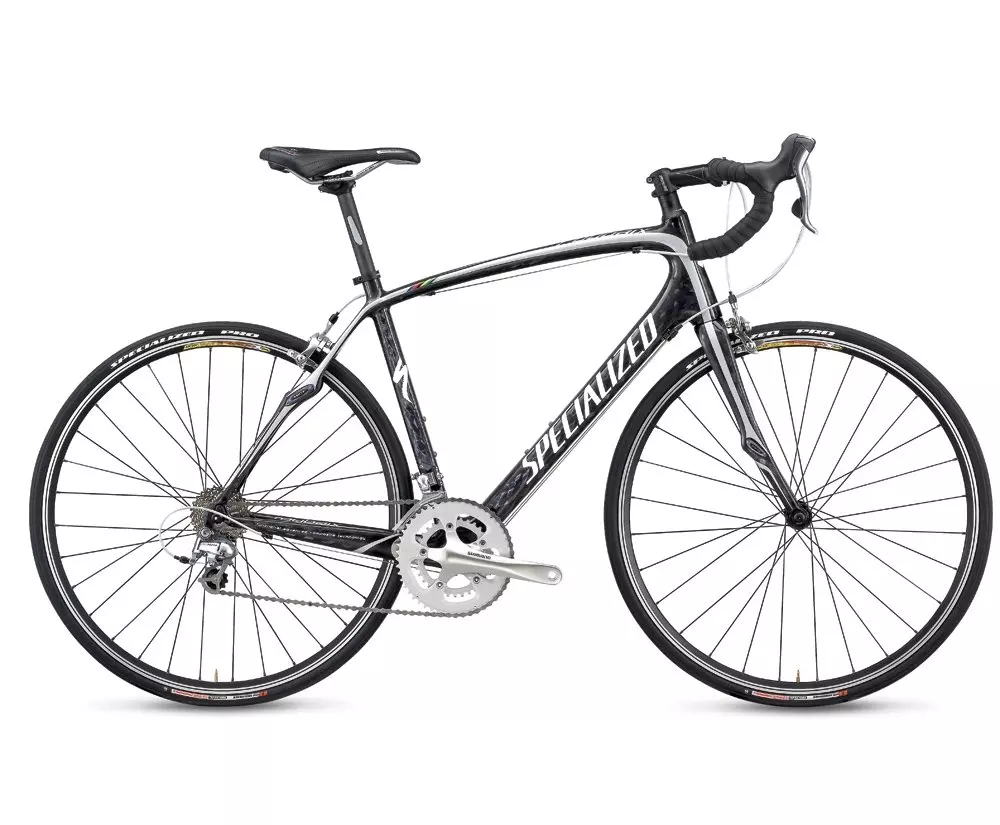

2009 Roubaix Elite

SERIOUSLY SMOOTH AND SERIOUSLY FAST. When the new Roubaix isn't silencing the cobbles and stealing the podium of races by the same name, it's busy turning your next 100 miles in to the "Big Easy."

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized FACT 7r carbon, triple monocoque construction, compact race design, Zertz inserts

FORK

Specialized FACT carbon, monocoque construction, OS race for 1-3/8"" bearing, full carbon legs, crown and steerer w/ Zertz inserts.

HEADSET

Specialized Campy style, 1-3/8"" lower bearing, integrated threadless, sealed cartridge bearings, 20mm alloy cone w/ one 10mm and two 5mm alloy spacers

SEAT BINDER

Specialized CNC alloy, 32.6mm

WHEELS

RIMS

Mavic CXP22 rim, alloy triple-wall, machined sidewalls, 28/32h w/ eyelets

FRONT HUB

Specialized forged alloy, 28h, sealed ball bearings, QR

REAR HUB

Specialized forged alloy, 32h, double sealed ball bearings, cassette, QR

SPOKES

DT Champion, stainless 14g w/ ProLoc brass nipples

FRONT TIRE

Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI

REAR TIRE

Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI

INNER TUBES

Specialized standard presta tube

DRIVETRAIN

FRONT DERAILLEUR

Shimano 105, braze-on clamp

REAR DERAILLEUR

Shimano 105, short cage

SHIFT LEVERS

Shimano 105, 10-speed STI, flight deck compatible

CASSETTE

Shimano 105, 10-speed, 12-27t

CHAIN

Shimano 105, 10-speed

CRANKSET

Shimano Compact

CHAINRINGS

50 x 34t

BOTTOM BRACKET

Shimano FC-4500

COCKPIT

STEM

Specialized Comp-Set, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4- position adjustable

HANDLEBARS

Specialized Pro, 2014 alloy, short-drop, ergonomic shaping, 31.8mm

TAPE

Body Geometry Bar Phat, cork ribbon w/ 4mm gel padding

SADDLE

Body Geometry Avatar, microfiber cover, gel padding, Cr-Mo rails

SEATPOST

Specialized Pavé II, FACT carbon w/ Zertz insert, aluminum head, 27.2mm

BRAKES

FRONT BRAKE

Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ cartridge pads

REAR BRAKE

Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ cartridge pads

BRAKE LEVERS

Shimano 105, 10-speed STI, flight deck compatible

ACCESSORIES

PEDALS

Silver cage, black body, w/ toe clip and strap

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
495254565861
Ground-Top73mm73mm71.5mm71.5mm70mm70mm
Seat-Tube Angle59°59°59°56°53°56°
Head-Tube Angle582°588°595°606°621°628°
Chain-Stay Length49mm49mm49mm49mm49mm49mm
Top-Tube Length, Horizontal74mm75.5mm73.5mm73.25mm72.5mm73mm
Front-Center125mm145mm165mm190mm225mm245mm
Handle-Bar Width0mm0mm0mm0mm0mm0mm
Seat-Tube Length, B-B Center to Top412mm412mm415mm415mm418mm420mm
Fork Rake983mm989mm1000mm1010mm1029mm1038mm
B-B Drop72mm72mm72mm72.5mm72.5mm73mm
Stack440mm475mm495mm515mm535mm565mm
Reach518mm537mm548mm565mm582mm600mm
Trail715mm737mm755mm776mm802mm827mm
