Roubaix Compact

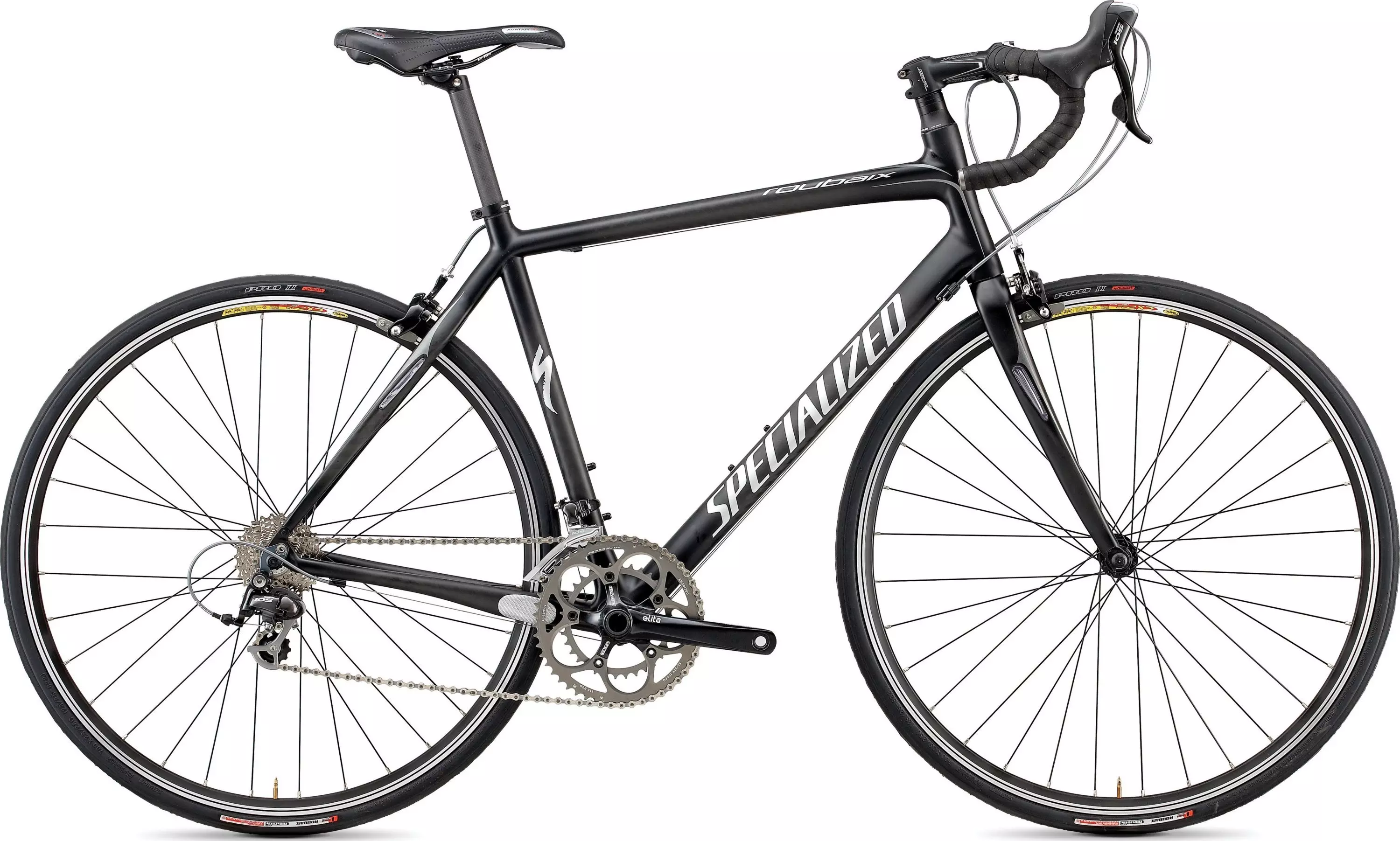

2010 Roubaix Compact
Technical Specifications
FRAMESET
FRAME
Specialized Roubaix FACT 6r carbon, triple monocoque construction, compact race design w/ Zertz inserts
FORK
Roubaix full carbon monocoque, w/ Zertz inserts
HEADSET
Aheadset 1 1/8"" w/ top cap, 40mm of spacers
SEAT BINDER
Forged alloy, 32.6mm
WHEELS
RIMS
Mavic CXP-22 N, aluminum triple-wall, sleeve joint, CNC machined sidewalls
REAR HUB
Forged alloy, sealed, cassette, QR, 32h
FRONT HUB
Forged alloy, sealed, 32 hole, for J bend round spokes
SPOKES
Stainless 14g
FRONT TIRE
Specialized Roubaix Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
REAR TIRE
Specialized Roubaix Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
INNER TUBES
Standard presta valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano 105
REAR DERAILLEUR
Shimano 105
SHIFT LEVERS
Shimano 105 STI, flight deck compatible
CASSETTE
Shimano 105, 10-speed, 12-27t
CHAIN
KMC DX10 SC
CRANKSET
Elita 2.2 Double 50x34T Black Color Rings
CHAINRINGS
50 x 34T
BOTTOM BRACKET
With Crankset
COCKPIT
STEM
Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS
Specialized Comp Ergo, 6061 alloy
TAPE
Specialized S-Wrap, cork ribbon w/ 2.5 gel pads
SADDLE
Body Geometry Avatar Gel w/ hollow Cr-Mo rails
SEATPOST
Carbon wrapped, two-bolt clamp, 27.2mm
BRAKES
FRONT BRAKE
Tektro cold-forged, dual pivot brake w/ cartridge pads
REAR BRAKE
Tektro cold-forged, dual pivot brake w/ cartridge pads
BRAKE LEVERS
Shimano 105 STI, flight deck compatible
ACCESSORIES
PEDALS
Silver cage/black body, w/ black toe clips and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 125mm | 145mm | 165mm | 190mm | 215mm | 235mm |
| Seat-Post Length | 300mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72° | 72° | 72° | 72.5° | 72.5° | 73° |
| Chain-Stay Length | 412mm | 412mm | 415mm | 415mm | 418mm | 420mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Center | 582mm | 588mm | 595mm | 606mm | 621mm | 628mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 719mm | 737mm | 756mm | 778mm | 800mm | 824mm |
| Seat-Tube Length, B-B Center to Top | 450mm | 480mm | 500mm | 520mm | 540mm | 570mm |
| Fork Rake | 49mm | 49mm | 49mm | 49mm | 49mm | 49mm |
| B-B Drop | 73mm | 73mm | 71.5mm | 71.5mm | 70mm | 70mm |
| Trail | 59mm | 59mm | 59mm | 56mm | 56mm | 53mm |
| Wheelbase | 983mm | 989mm | 1000mm | 1010mm | 1029mm | 1038mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 120mm |
