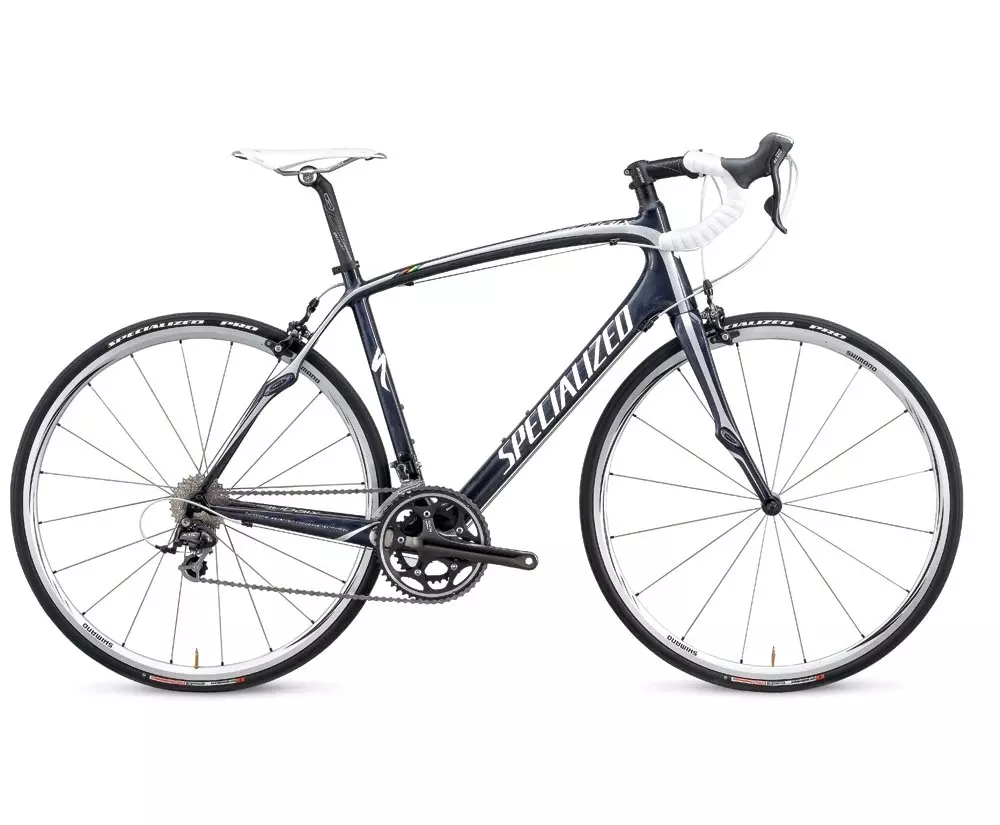

SERIOUSLY SMOOTH AND SERIOUSLY FAST. When the new Roubaix isn't silencing the cobbles and stealing the podium of races by the same name, it's busy turning your next 100 miles in to the "Big Easy."
  • The compact Roubaix Comp C2 puts our FACT 7r carbon to work in a more-upright-positioned race design, the vibration-absorbing Zertz inserts add an additional layer of comfort.
  • The Specialized FACT carbon monocoque fork is full carbon—legs, crown, steerer—and features an oversized lower bearing race for precision and strength, Zertz inserts soak up the chatter.
  • The4-position-adjustable Specialized Comp-Set stem easily matches your comfort and speed needs.
  • The Specialized Pro handlebars feature a short drop and ergonomic shape for all-day comfort.
  • With a carbon-reinforced base and scientifically proven Body Geometry shape, the Toupé Gel saddle is all about strength and comfort.
  • The Zertz insert in the Pro SL FACT carbon seatpost soaks up vibrations without wasting your energy.

Technical Specifications

FRAMESET
SEAT BINDER Specialized CNC alloy, 32.6mm
HEADSET Specialized Campy style, 1-3/8"" integrated threadless, sealed cartridge bearings, 20mm alloy cone w/ one 10mm and two 5mm alloy spacers
FORK Specialized FACT carbon, monocoque construction, OS race for 1-3/8"" bearing, full carbon legs, crown and steerer w/ Zertz inserts.
FRAME Specialized FACT 7r carbon, triple monocoque construction, compact race design, Zertz inserts
WHEELS
FRONT HUB Shimano RS-10, QR
REAR HUB Shimano RS-10, cassette, QR
INNER TUBES Specialized standard presta tube
SPOKES Stainless
RIMS Shimano RS-10
FRONT TIRE Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI
REAR TIRE Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI
DRIVETRAIN
BOTTOM BRACKET Shimano 105, Hollowtech II
CHAIN Shimano 105, 10-speed
CRANKSET Shimano 105
CASSETTE Shimano 105, 10-speed, 12-27t
SHIFT LEVERS Shimano 105, 10-speed STI, flight deck compatible
FRONT DERAILLEUR Shimano 105, braze-on clamp
CHAINRINGS 50 x 34t
REAR DERAILLEUR Shimano 105, short cage
COCKPIT
SADDLE Body Geometry Toupé Gel, carbon reinforced base, Cr-Mo rails
TAPE Body Geometry Bar Phat, cork ribbon w/ 4mm gel padding
SEATPOST Specialized Pro SL, FACT carbon w/ Zertz insert, 27.2mm
HANDLEBARS Specialized Pro, 2014 alloy, short-drop, ergonomic shaping, 31.8mm
STEM Specialized Comp-Set, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4- position adjustable
BRAKES
BRAKE LEVERS Shimano 105, 10-speed STI, flight deck compatible
FRONT BRAKE Shimano 105
REAR BRAKE Shimano 105
ACCESSORIES
PEDALS Silver cage, black body, w/ toe clip and strap

Geometry

Geometry Chart

Roubaix - Geometry

  52 54 56 61
Handle-Bar Width 0mm 0mm 0mm 0mm
Reach 537mm 548mm 565mm 600mm
Stack 475mm 495mm 515mm 565mm
Seat-Tube Length, B-B Center to Top 412mm 415mm 415mm 418mm
Ground-Top 73mm 71.5mm 71.5mm 70mm
Top-Tube Length, Horizontal 75.5mm 73.5mm 73.25mm 73mm
Front-Center 145mm 165mm 190mm 245mm
Head-Tube Angle 588° 595° 606° 628°
Fork Rake 989mm 1000mm 1010mm 1029mm
Trail 737mm 755mm 776mm 827mm
Chain-Stay Length 49mm 49mm 49mm 49mm
Seat-Tube Angle 59° 59° 56° 56°
B-B Drop 72mm 72mm 72.5mm 73mm
