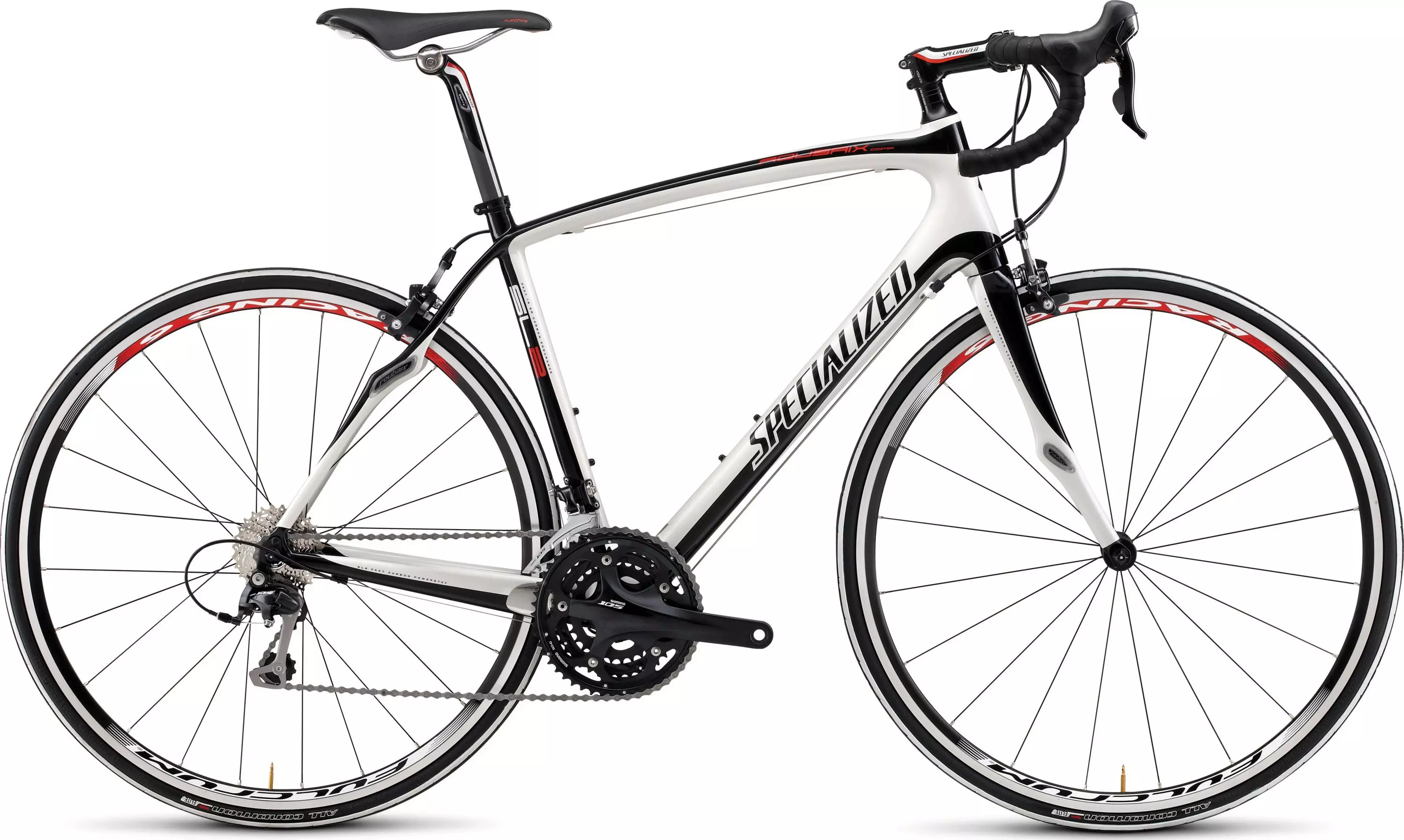

Roubaix Comp Triple
Part No.

Roubaix Comp Triple

Part No.  23461
load-spinner
Roubaix Comp Triple
Overview
Technical Specifications
Geometry
Reviews
Shimano 105 and Fulcrum Racing 6 wheels guarantee crisp shifting and quick acceleration. Triple front chainrings expand the range of gear options for long, steep climbs.
  • New FACT 8r carbon, FACT IS constructed frame with Endurance Road geometry, Zertz inserts and tapered head tube for the perfect blend of stiffness, compliance and light weight
  • Ultralight FACT carbon monocoque fork with vibration-damping Zertz inserts is stiff, responsive and durable
  • Adjustable 4-position oversized alloy stem with 31.8mm bar clamp for strength and versatile positioning
  • Specialized Expert ergonomic alloy handlebars for a comfortable, natural position, no matter how long the ride
  • Avatar Comp Gel saddle features hollow Cr-Mo rails and Body Geometry gel padding for all-day performance and comfort
  • FACT carbon Pave seatpost uses a Zertz insert to minimize road vibrations for greater comfort but remains stiff and efficient
  • Smooth, precise Shimano 105 STI shifters are renowned for their race-ready performance and exceptional value
  • Race-ready Fulcrum 6 wheels are fast, light, and durable for high mileage training - made by Campagnolo for legendary performance

Technical Specifications

DRIVETRAIN
CHAIN Shimano 105
BOTTOM BRACKET With crankset
CRANKSET Shimano 105
FRONT DERAILLEUR Shimano 105
SHIFT LEVERS Shimano 105 STI
CASSETTE Shimano 105, 10-speed, 11-28t
CHAINRINGS 50 x 39 x 30T
REAR DERAILLEUR Shimano 105
WHEELS
REAR WHEEL Fulcrum Racing 6
INNER TUBES Standard presta valve
FRONT TIRE Specialized All Condition, 700x23c, wire bead, 60TPI, w/ Flak Jacket protection
REAR TIRE Specialized All Condition, 700x23c, wire bead, 60TPI, w/ Flak Jacket protection
FRONT WHEEL Fulcrum Racing 6
COCKPIT
SADDLE Body Geometry Avatar Comp w/ hollow Cr-Mo rails
TAPE Specialized S-Wrap w/ 2.5 gel pads
SEATPOST Specialized Pro, FACT carbon w/ Zertz insert
STEM Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS Specialized Expert shallow drop, 2014 alloy
BRAKES
FRONT BRAKE Shimano 105
BRAKE LEVERS Shimano 105 STI
REAR BRAKE Shimano 105
ACCESSORIES
PEDALS Black cage, body & toe clips w/ strap
FRAMESET
HEADSET 1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings w/ 20mm cone spacer and 20mm of spacers
SEAT BINDER Forged alloy, 32.6mm
FORK Specialized FACT carbon full monocoque w/ Zertz inserts
FRAME Specialized FACT 8r carbon, FACT IS construction, compact race design w/ Zertz inserts, 1-1/8"" to 1-3/8"" headtube, threaded BB

Geometry

Geometry Chart

Roubaix - Geometry

  49 52 54 56 58 61
Wheelbase 983mm 989mm 1000mm 1010mm 1029mm 1038mm
Seat-Tube Length, B-B Center to Top 445mm 475mm 495mm 515mm 540mm 565mm
Head-Tube Length 125mm 145mm 165mm 190mm 225mm 245mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 582mm 588mm 595mm 606mm 621mm 628mm
Head-Tube Angle 72° 72° 72° 72.5° 72.5° 73°
Fork Rake 49mm 49mm 49mm 49mm 49mm 49mm
Trail 59mm 59mm 59mm 56mm 56mm 53mm
Stand-Over Height 730mm 756mm 776mm 798mm 829mm 851mm
Chain-Stay Length 412mm 412mm 415mm 415mm 418mm 420mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 73mm 73mm 71.5mm 71.5mm 70mm 70mm
Seat-Post Length 0mm 0mm 0mm 0mm 0mm 0mm
