Roubaix Comp Triple
$2,700.00
Part No.

Roubaix Comp Triple

$2,700.00
Part No.  22909
load-spinner
Roubaix Comp Triple
Overview
Technical Specifications
Geometry
Reviews

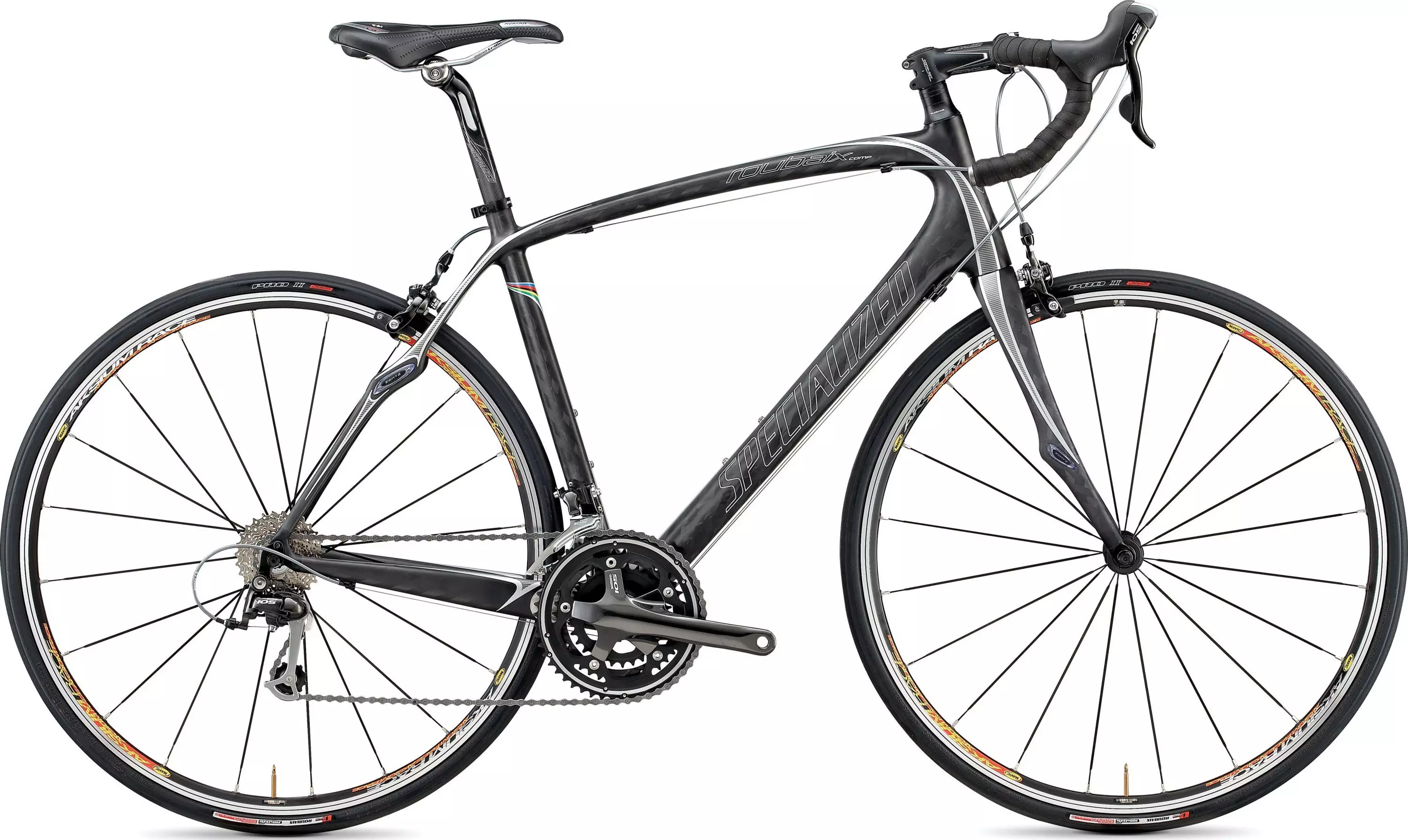

The bike that invented the Endurance Road category also goes by the name "nothing is smoother and faster". Combining best-in-class vertical compliance from the seatstays and top tube with excellent torsional rigidity from the down tube, head tube and bottom bracket, the Roubaix finds a way to not only make the long ride comfortable, but also make it fast
  • FACT carbon monocoque fork with vibration-damping Zertz inserts is ultralight and durable
  • FACT carbon Pave seatpost uses a Zertz insert to minimize road vibrations for greater comfort
  • Adjustable 4-position, 3D-forged alloy stem with 31.8mm bar clamp for strength and versatile positioning
  • Specialized Pro ergonomic alloy handlebars for a comfortable, natural position, no matter how long the ride
  • Avatar Gel saddle features hollow Cr-Mo rails and Body Geometry gel padding for all-day performance and comfort
  • FACT 7r carbon triple monocoque frame with Endurance Road geometry and Zertz inserts for the perfect blend of stiffness, compliance and light weight

Technical Specifications

FRAMESET
SEAT BINDER Forged alloy, 32.6mm
HEADSET Alloy, 1-1/8 - 1-3/8"", w/ 20mm of spacers
FORK Roubaix full carbon monocoque, w/ Zertz inserts
FRAME Specialized Roubaix FACT 7r carbon, triple monocoque construction, compact race design w/ Zertz inserts
WHEELS
REAR WHEEL Mavic Aksium
INNER TUBES Standard presta valve
FRONT TIRE Specialized Roubaix Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
REAR TIRE Specialized Roubaix Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
FRONT WHEEL Mavic Aksium
DRIVETRAIN
BOTTOM BRACKET With Crankset
CHAIN Shimano 105
CRANKSET Shimano 105
CASSETTE Shimano 105, 10-speed, 12-27t
SHIFT LEVERS Shimano 105 STI, flight deck compatible
FRONT DERAILLEUR Shimano 105
CHAINRINGS 50 x 39 x 30T
REAR DERAILLEUR Shimano 105
COCKPIT
SADDLE Body Geometry Avatar Gel w/ hollow Cr-Mo rails
TAPE Specialized S-Wrap, cork ribbon w/ 2.5 gel pads
SEATPOST Specialized Expert, FACT carbon w/ Zertz insert, aluminum head, two-bolt clamp, 27.2mm
HANDLEBARS Specialized Pro Ergo 2014 alloy
STEM Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
BRAKES
BRAKE LEVERS Shimano 105 STI, flight deck compatible
FRONT BRAKE Shimano 105
REAR BRAKE Shimano 105
ACCESSORIES
PEDALS Silver cage/black body, w/ black toe clips and strap

Geometry

Geometry Chart

Roubaix - Geometry

  49 52 54 56 58 61
Stem Length 75mm 90mm 100mm 100mm 110mm 120mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Handle-Bar Width 400mm 420mm 420mm 420mm 440mm 440mm
Wheelbase 983mm 989mm 1000mm 1010mm 1029mm 1038mm
Seat-Tube Length, B-B Center to Top 445mm 475mm 495mm 515mm 540mm 565mm
Head-Tube Length 125mm 145mm 165mm 190mm 225mm 245mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 582mm 588mm 595mm 606mm 621mm 628mm
Head-Tube Angle 72° 72° 72° 72.5° 72.5° 73°
Fork Rake 49mm 49mm 49mm 49mm 49mm 49mm
Trail 59mm 59mm 59mm 56mm 56mm 53mm
Stand-Over Height 737mm 759mm 780mm 801mm 824mm 849mm
Chain-Stay Length 412mm 412mm 415mm 415mm 418mm 420mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 73mm 73mm 71.5mm 71.5mm 70mm 70mm
Seat-Post Length 300mm 350mm 350mm 350mm 350mm 350mm

Reviews
