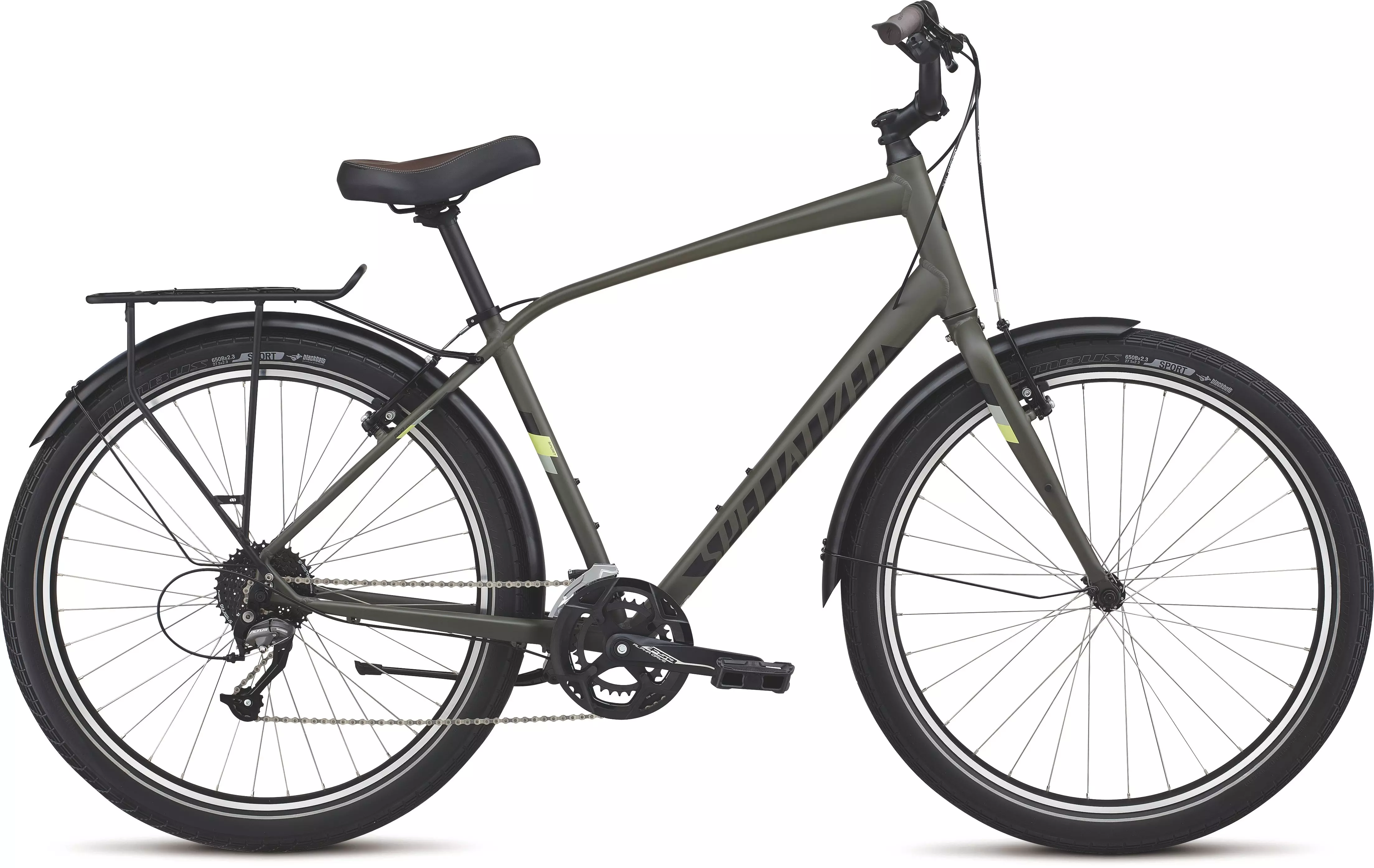

Roll Sport EQ
Overview
Technical Specifications
Geometry
Rider Reviews
Back To Top

Technical Specifications

FRAMESET
FRAME Specialized A1 Premium Aluminum, Ground Control Positioning, formed tubes, V-brake, fender/rack mounts
SEAT BINDER Bolt type, alloy, 31.8mm
SUSPENSION
FORK Steel, V-brake, fender/rack mounts
WHEELS
RIMS Double wall, 32h front 36h rear
FRONT HUB Alloy, V-brake, loose ball bearings, quick-release, 32h
REAR HUB Alloy, 8/9-speed freehub, v-brake, loose ball bearings, quick-release, 36h
SPOKES Stainless, 14g
FRONT TIRE Nimbus Sport Reflective, 27.5x2.3", 60 TPI w/ BlackBelt Protection
REAR TIRE Nimbus Sport Reflective, 27.5x2.3", 60 TPI w/ BlackBelt Protection
INNER TUBES Schrader valve
DRIVETRAIN
FRONT DERAILLEUR Shimano Altus, top swing, dual pull, 31.8mm clamp
REAR DERAILLEUR Shimano Altus, SGS cage, 9-speed
SHIFT LEVERS microSHIFT, 2x9-speed
CASSETTE MicroSHIFT, 9-Speed, 11-34t
CHAIN KMC X9, 9-speed w/ Missing Link™
CRANKSET FSA Alpha Drive, forged 6061 aluminum, direct-mount
CHAINRINGS 44/32T
BOTTOM BRACKET BSA, square taper, cartridge bearings
COCKPIT
STEM Forged alloy, 17-degree rise, 31.8mm clamp
HANDLEBARS Specialized Roll, 6061 alloy, 15-degree backsweep, 125mm rise, 31.8mm
GRIPS Specialized Body Geometry Contour, lock-on
SADDLE Body Geometry The Cup, 6-degree rise, steel rails, 245mm
SEATPOST Alloy, 12mm offset, 2-bolt clamp, 27.2mm
BRAKES
FRONT BRAKE Tektro V-brake, linear pull
REAR BRAKE Tektro V-brake, linear pull
ACCESSORIES
PEDALS Specialized City, platform
* Specifications are subject to change without notice
Manual Downloads
Specialized Bicycle Owner's Manual (All Languages)
2018 Rider/Bike Weight Limits and Terrain Conditions
Trainer Usage Addendum to the Bicycle Owner's Manual
Specialized Bicycle Owner's Manual Addendum: Riding With Kids
Specialized Bicycle Owner's Manual (English)
2017 Rider/Bike Weight Limits and Terrain Conditions
Dodatek - POUŽITÍ TRENAŽÉRU

Roll - Geometry

Geometry

SM MD LG
  SM MD LG
Crank Length 165mm 170mm 175mm
Stem Length 60mm 60mm 60mm
Seatpost Length 350mm 350mm 350mm
Saddle Width 245mm 245mm 245mm
Handlebar Width 680mm 680mm 680mm
Reach 346.2mm 352.3mm 370.4mm
Top Tube Length, Horizontal 595mm 615mm 645mm
Stack 586mm 619mm 647mm
Wheelbase 1089mm 1097mm 1126mm
Chainstay Length 480mm 480mm 480mm
Front Center 618mm 626mm 654mm
BB Drop 70mm 70mm 70mm
BB Height 285mm 285mm 285mm
Seat Tube Angle 67° 67° 67°
Head Tube Angle 68° 69° 69°
Seat Tube Length 375mm 440mm 480mm
Head Tube Length 155mm 185mm 215mm
Bike Standover Height 730mm 787mm 824mm
Fork Rake/Offset 55mm 55mm 55mm
Fork Length, Full 420mm 420mm 420mm
Trail 77mm 77mm 84mm
Geometry Chart
