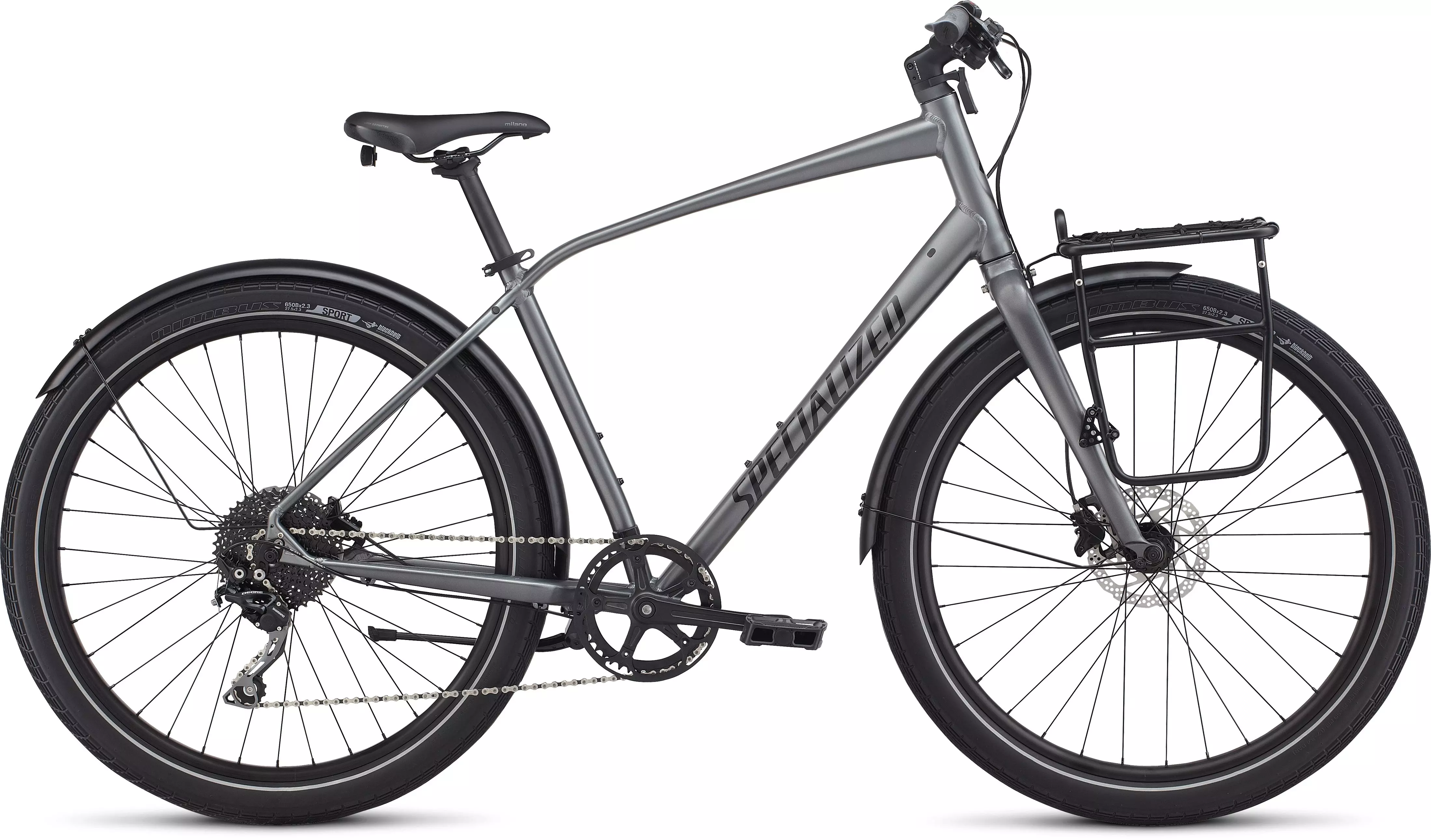

Roll City
Technical Specifications
There are always more reasons not to exercise than to actually do it, and when it comes to getting a ride in, one of the most common complaints that we hear is about how tough it is in the city. If this sounds familiar, we have the solution to your problem—the Roll City. It's custom-built to tackle the urban landscape, with features like wide, reflective tires, powerful Shimano hydraulic disc brakes that stop on a dime, a tough, durable frame, and mounts for racks and fenders. We even gave it a unique reflective paint job that illuminates in order to increase your visibility to motorists in low-light conditions. This way, you can turn any ride into a workout and every workout will feel just like an awesome, comfortable ride.
  • Shimano hydraulic disc brakes provide reliable stopping power, regardless of the conditions. This way, rain or shine, you'll be able to have full confidence in your ability to react to the road.
  • Wide diameter, 650bx2.3" Nimbus Sport Reflective tires provide excellent traction, stability, and cushioning, which creates a safer, more reliable, and more comfortable ride on either paved or dirt roads. Plus, the reflective accents of the tire are sure to increase your visibility to motorists in low-light conditions.
  • A Milano Sport saddle allows you to ride in comfort for mile-after-mile, while its integrated SWAT™ mount opens the door to a wide world of on-the-bike storage options.

Technical Specifications

CHAIN KMC X10, 10-speed w/reusable MissingLink
BOTTOM BRACKET BSA, square taper, cartridge bearings
CRANKSET Single crank, 130mm BCD spider
SHIFT LEVERS Shimano Deore, 10-speed
CASSETTE SunRace, 10-speed, 11-40t
CHAINRINGS 42T w/aluminum chainguard
REAR DERAILLEUR Shimano Deore, Shadow Plus design, SGS cage, 10-speed
FORK A1 Premium Aluminum, Cr-Mo steerer, post disc mount, fender/rack mounts, reflective paint
FRONT HUB Specialized disc, double-sealed, loose ball bearings, 9mm QR
REAR HUB Specialized disc, loose ball bearings, for Shimano 10-speed cassette, QR
SPOKES Stainless, 14g
RIMS Specialized Roll, double-wall, 33mm inner width, disc
FRONT TIRE Nimbus Sport Reflective, 60 TPI, 27.5 x 2.3"
REAR TIRE Nimbus Sport Reflective, 60 TPI, 27.5 x 2.3"
SADDLE Milano Sport, steel rails
SEATPOST Alloy, 12mm offset, 2-bolt, 27.2mm
STEM Specialized Flowset, 3D-forged alloy, 12-degree rise, 31.8mm clamp
HANDLEBARS Specialized, alloy, 10-degree backsweep 31.8mm
FRONT BRAKE Shimano Acera, hydraulic disc, resin pads, 160mm rotor
REAR BRAKE Shimano Acera, hydraulic disc, resin pads, 160mm rotor
PEDALS Specialized City platform
SEAT BINDER Alloy, QR, 31.8mm
FRAME Specialized A1 Premium Aluminum, Ground Control Positioning, formed tubes, disc mount, fender/rack mounts, reflective paint


Geometry Chart

Roll - Geometry

Crank Length 165mm 170mm 175mm
Stem Length 60mm 60mm 60mm
Seatpost Length 350mm 350mm 350mm
Saddle Width 175mm 175mm 175mm
Handlebar Width 700mm 700mm 700mm
Reach 346mm 352mm 370mm
Stack 586mm 619mm 647mm
Wheelbase 1089mm 1097mm 1126mm
Bike Stand-Over Height 702.2mm 764.3mm 806mm
Head-Tube Length 155mm 185mm 215mm
Front-Center 618mm 626mm 654mm
Fork Rake/Offset 55mm 55mm 55mm
Head-Tube Angle 68° 69° 69°
Trail 84mm 77mm 77mm
Chain-Stay Length 480mm 480mm 480mm
B-B Height 285mm 285mm 285mm
Seat-Tube Angle 67° 67° 67°
Fork Length (full) 420mm 420mm 420mm
B-B Drop 70mm 70mm 70mm
Seat-Tube Length 375mm 440mm 480mm
Top-Tube Length (horizontal) 595mm 615mm 645mm
