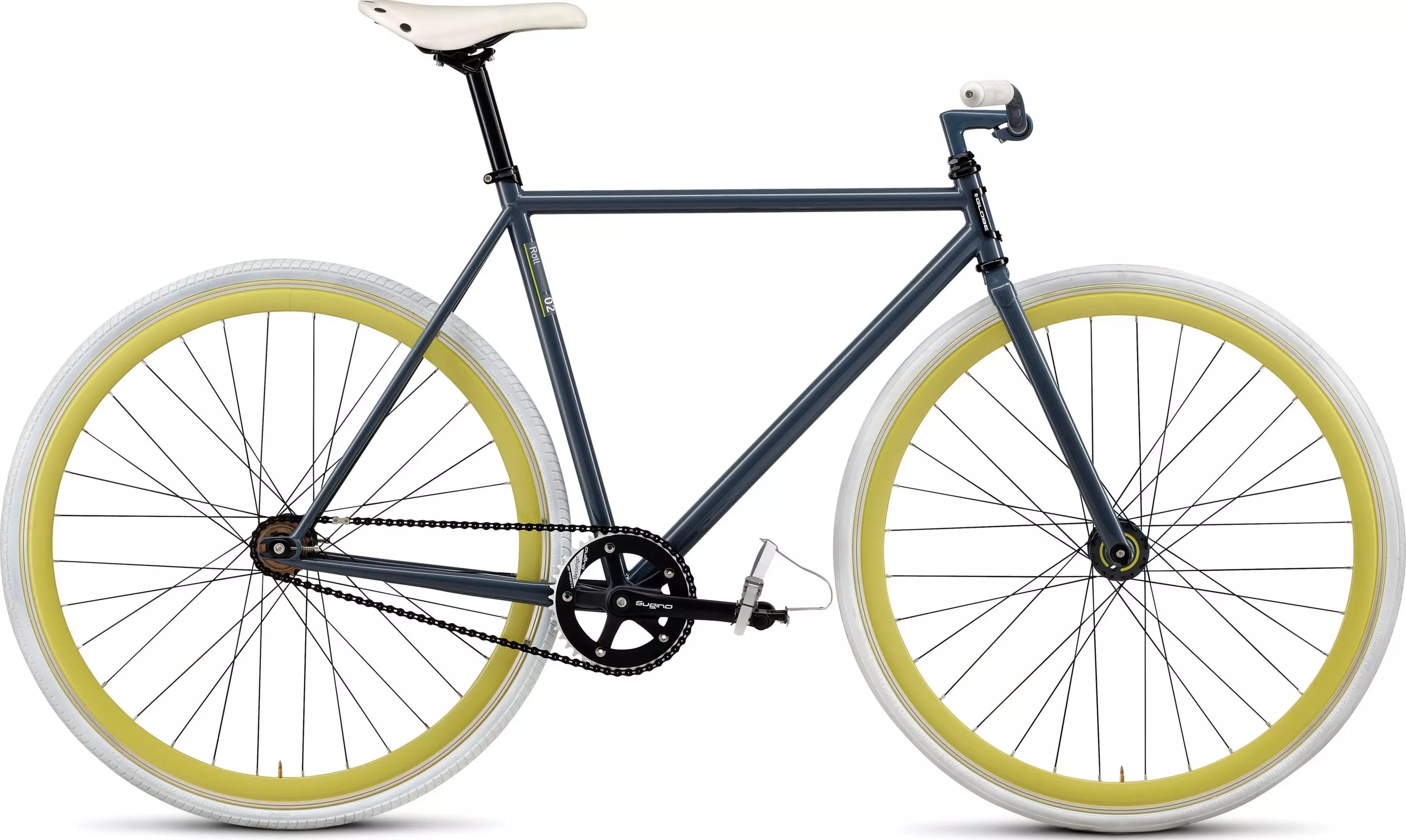

The Roll 2 is for real with Reynolds 520 Cr-Mo tubing, lugged Cr-Mo fork, and parts to keep you rolling for a good, long while.
  • Fixie or freewheel rear hub, you decide
  • Globe Roll grips with alloy end plugs are clean and simple
  • Well-built, classic Cr-Mo singlespeed frame is simple, yet durable
  • Extremely durable steel fork with classic style, built to withstand any urban obstacle
  • Alloy 42-tooth track-style singlespeed crankset provides smooth power with a touch of style
  • Sleek injection-molded plastic saddle with stealthy padding and riv-nuts for sharp retro look
  • Narrow alloy riser bars with 15 degree back sweep provides stylish comfort and precise handling
  • Strong, eye-catching deep V 700c rims and bolt-on, high-flange front and rear hubs complement the Roll's distinctly urban design

Technical Specifications

DRIVETRAIN
BOTTOM BRACKET Cartridge bearing, square spindle w/ crank stop right side, capless bolts
CHAIN 1-speed chain
CRANKSET Sugino RD2 Messenger, single speed with alloy 42t ring
CASSETTE Freewheel, 17t
CHAINRINGS 42t Alloy
COCKPIT
SADDLE Globe Roll riveted w/ classic look
TAPE Globe Roll w/ alloy end plug
SEATPOST Alloy, 2-bolt forged head, 27.2mm, 12.5mm offset
HANDLEBARS Globe Roll alloy riser bar, 50mm rise, 4 degree up, 15 degree back
STEM Globe Roll 1"" forged quill-stem
WHEELS
FRONT HUB Globe Roll, sealed bearing, high flange, bolt-on, 32h
REAR HUB Globe Roll, sealed bearing, high flange flip-flop, bolt-on, 32h
INNER TUBES Presta valve
SPOKES 2mm (14g) stainless
RIMS 700c deep V, 38mm rim depth, machine sidewall, 32h
FRONT TIRE Specialized All Condition Sport 700x23c, 60TPI, wire bead w/ Flak Jacket protection
REAR TIRE Specialized All Condition Sport 700x28c, 60TPI, wire bead w/ Flak Jacket protection
BRAKES
FRONT BRAKE Caliper brake
BRAKE LEVERS Cold-forged secondary brake lever
REAR BRAKE Caliper brake
ACCESSORIES
PEDALS Platform pedal w/ two-piece cage, single strap
FRAMESET
SEAT BINDER Globe forged alloy extra slim clamp, 31.8mm
HEADSET 1"" threadless, sealed loose ball bearings
FORK Lugged Cr-Mo fork w/ integrated drop outs
FRAME Reynolds 520 Cr-Mo frame TT/ST/DT, custom cast track dropouts, brake drilling

Geometry

Geometry Chart

- Geometry

  SM MD LG XL
Crank Length 165mm 165mm 165mm 170mm
Stem Length 80mm 80mm 100mm 100mm
Handle-Bar Width 470mm 470mm 470mm 470mm
Wheelbase 990mm 986mm 1005mm 1027mm
Seat-Tube Length, B-B Center to Top 480mm 530mm 580mm 630mm
Head-Tube Length 84mm 104mm 154mm 204mm
Top-Tube Length, Horizontal 520mm 550mm 580mm 610mm
Front-Center 600mm 596mm 614mm 636mm
Head-Tube Angle 71° 72.5° 73° 73.5°
Stand-Over Height 732mm 773mm 814mm 870mm
Fork Rake 45mm 45mm 45mm 45mm
Trail 70mm 60mm 57mm 54mm
Chain-Stay Length 398mm 398mm 398mm 398mm
Seat-Tube Angle 76.5° 74° 73.25° 73°
B-B Drop 60mm 60mm 60mm 60mm
Seat-Post Length 300mm 300mm 350mm 350mm
