Roll 1
$660.00
Part No.

Roll 1

$660.00
Part No.  35087
load-spinner
Roll 1
Overview
Technical Specifications
Geometry
Reviews

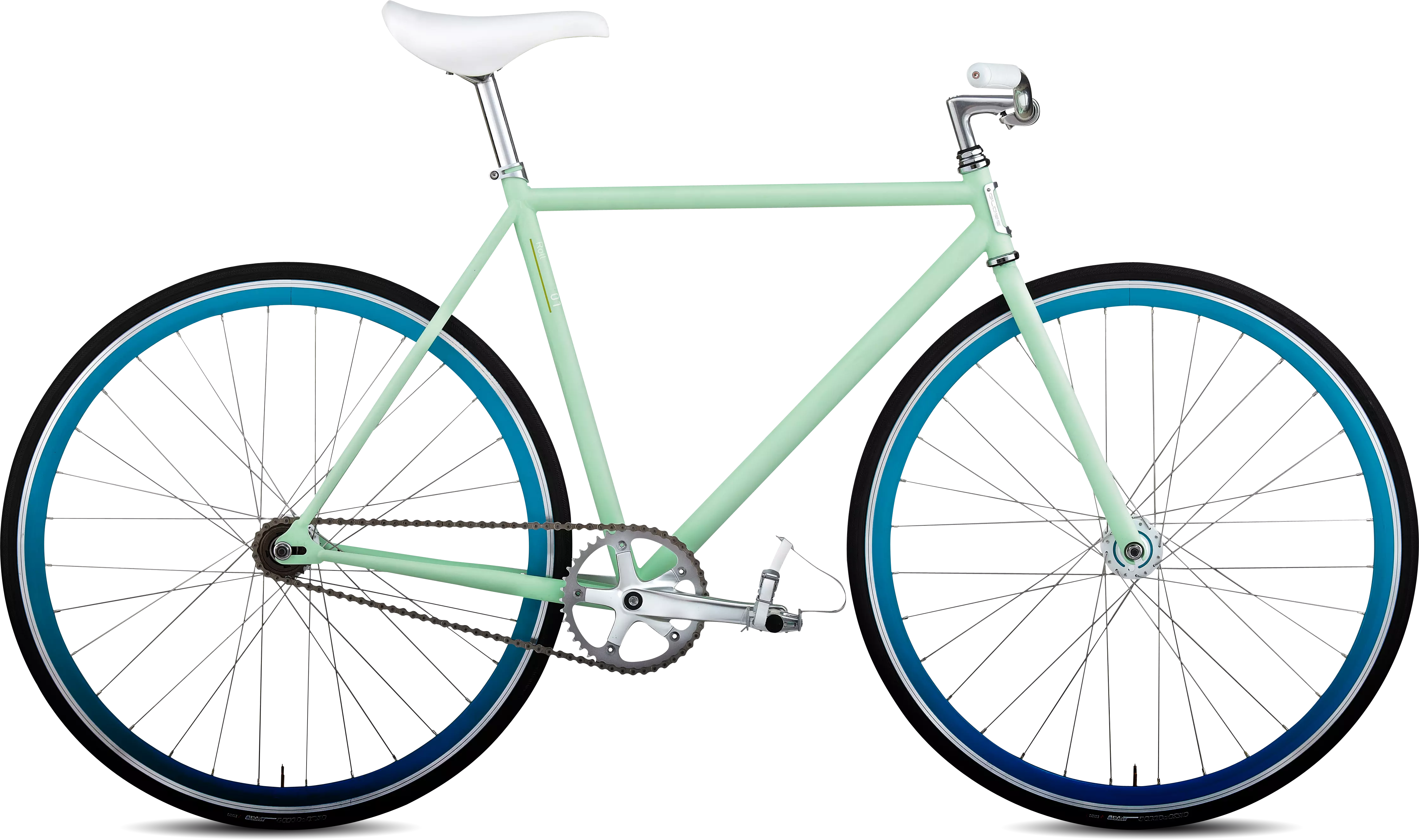

The ROLL 1 will live up to the most competitive urban assaults and still keep an unmistakably clean, cool, and collected attitude with its minimalist, retro Cr-Mo frame.
  • Well-built, classic Cr-Mo singlespeed frame is simple, yet durable and stylishly retro
  • Extremely durable uni-crown Cr-Mo fork with classic lines built to withstand any urban obstacle
  • Strong, eye-catching deep V 700c rims and bolt-on, high-flange front and rear hubs complement the Roll's distinctly urban design
  • Fixie or freewheel? You decide with this flip-flop, high-flange 32-hole hub
  • Alloy 42T track-style singlespeed crankset provides smooth power with a touch of style
  • Narrow alloy riser bars with 15-degree back sweep provides stylish comfort and precise handling
  • Globe Roll grips with alloy end plugs are clean and simple
  • Sleek injection-molded plastic saddle with stealthy padding and riv-nuts for sharp retro look

Technical Specifications

DRIVETRAIN
CHAIN KMC Z-510HX singlespeed
BOTTOM BRACKET Cartridge bearing, square spindle w/ crank stop right side, capless bolts
CRANKSET Forged Alloy-arm with 42T ring
CASSETTE Freewheel, 17t
CHAINRINGS 42T alloy track
WHEELS
FRONT HUB Globe Roll, loose ball, high flange, bolt-on, 32h
REAR HUB Globe Roll, loose ball, high flange flip-flop, bolt-on, 32h
INNER TUBES Presta valve
SPOKES 2mm (14g) stainless
FRONT TIRE Specialized Espoir Sport w/Flak Jacket protection, 60 TPI, wire bead, 700x23c
RIMS 700c deep V, 32mm rim depth, machine sidewall, 32h
REAR TIRE Specialized Espoir Sport w/Flak Jacket protection, 60 TPI, wire bead, 700x23c
COCKPIT
SADDLE Padded Roll saddle
TAPE Globe Roll w/ custom alloy end plug
SEATPOST Alloy, 2-bolt forged head, 27.2mm, 12.5mm offset
STEM Globe Roll 1"" forged quill-stem
HANDLEBARS Globe Roll, custom alloy riser bar, 50mm rise, 4 degree up, 15 degree back
BRAKES
FRONT BRAKE Caliper brake
BRAKE LEVERS Cold-forged brake lever
REAR BRAKE Caliper brake
ACCESSORIES
PEDALS Alloy cage and body, steel toe clips
FRAMESET
HEADSET 1"" threadless, sealed loose ball bearings
SEAT BINDER Globe forged alloy extra slim clamp, 31.8mm
FORK Globe uni-crown Cr-Mo fork, w/ integrated cast drop outs
FRAME Cr-Mo frame TT/ST/DT, custom track dropouts, custom brake bridge

Geometry

Geometry Chart

Roll - Geometry

  SM MD LG XL
Stem Length 80mm 80mm 100mm 100mm
Crank Length 165mm 165mm 165mm 170mm
Handle-Bar Width 470mm 470mm 470mm 470mm
Wheelbase 984mm 980mm 1002mm 1018mm
Seat-Tube Length, B-B Center to Top 480mm 530mm 580mm 630mm
Head-Tube Length 84mm 104mm 154mm 204mm
Top-Tube Length, Horizontal 520mm 550mm 580mm 610mm
Front-Center 600mm 596mm 614mm 631mm
Head-Tube Angle 71° 72.5° 73° 73.5°
Fork Rake 45mm 45mm 45mm 45mm
Trail 70mm 60mm 57mm 54mm
Stand-Over Height 732mm 768mm 814mm 862mm
Chain-Stay Length 392mm 392mm 395mm 395mm
Seat-Tube Angle 76.5° 74° 73.25° 72.5°
B-B Drop 60mm 60mm 60mm 60mm
Seat-Post Length 300mm 300mm 350mm 350mm
